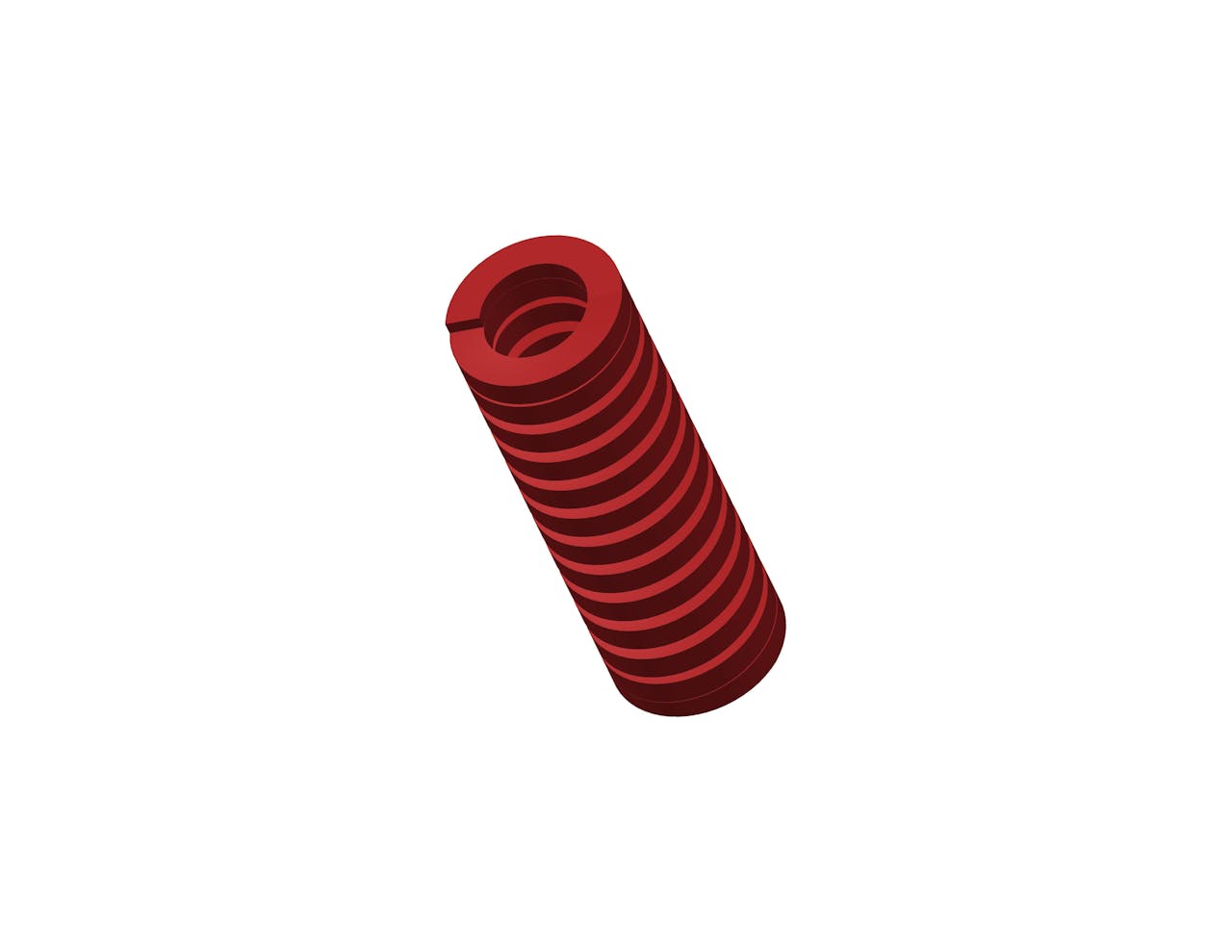

D-9100726CS - 1.75 Inch Chrome Silicon Die Spring

Inventory:
Estimated Lead Time

1.75 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 86 lb
Brand Century Spring
Deflection For Average Life 0.35 in
Deflection For Long Life 0.43 in
Display Name D-9100726
Duty Load Heavy
Finish None
Finish Color Red
Free Length 1.75 in
Hole Size 0.625 in
Long Life Deflection Force 107 lb
Material Chrome Silicon
Maximum Deflection 0.52 in
Maximum Deflection Force 128 lb
Measurement Units Standard
Rate 247 lbs/in
Rod Size 0.3428 in
SKU D-9100726CS
Wire Diameter 0.117 in x 0.096 in
Specs (in metric)
Label Value
Average Life Deflection Force 39 kg
Brand Century Spring
Deflection For Average Life 8.89 mm
Deflection For Long Life 10.92 mm
Display Name D-9100726
Duty Load Heavy
Finish None
Finish Color Red
Free Length 44.45 mm
Hole Size 15.88 mm
Long Life Deflection Force 48.53 kg
Material Chrome Silicon
Maximum Deflection 13.21 mm
Maximum Deflection Force 58.05 kg
Measurement Units Standard
Rate 43.25 N/mm
Rod Size 8.71 mm
SKU D-9100726CS
Wire Diameter 2.97 mm x 2.44 mm
