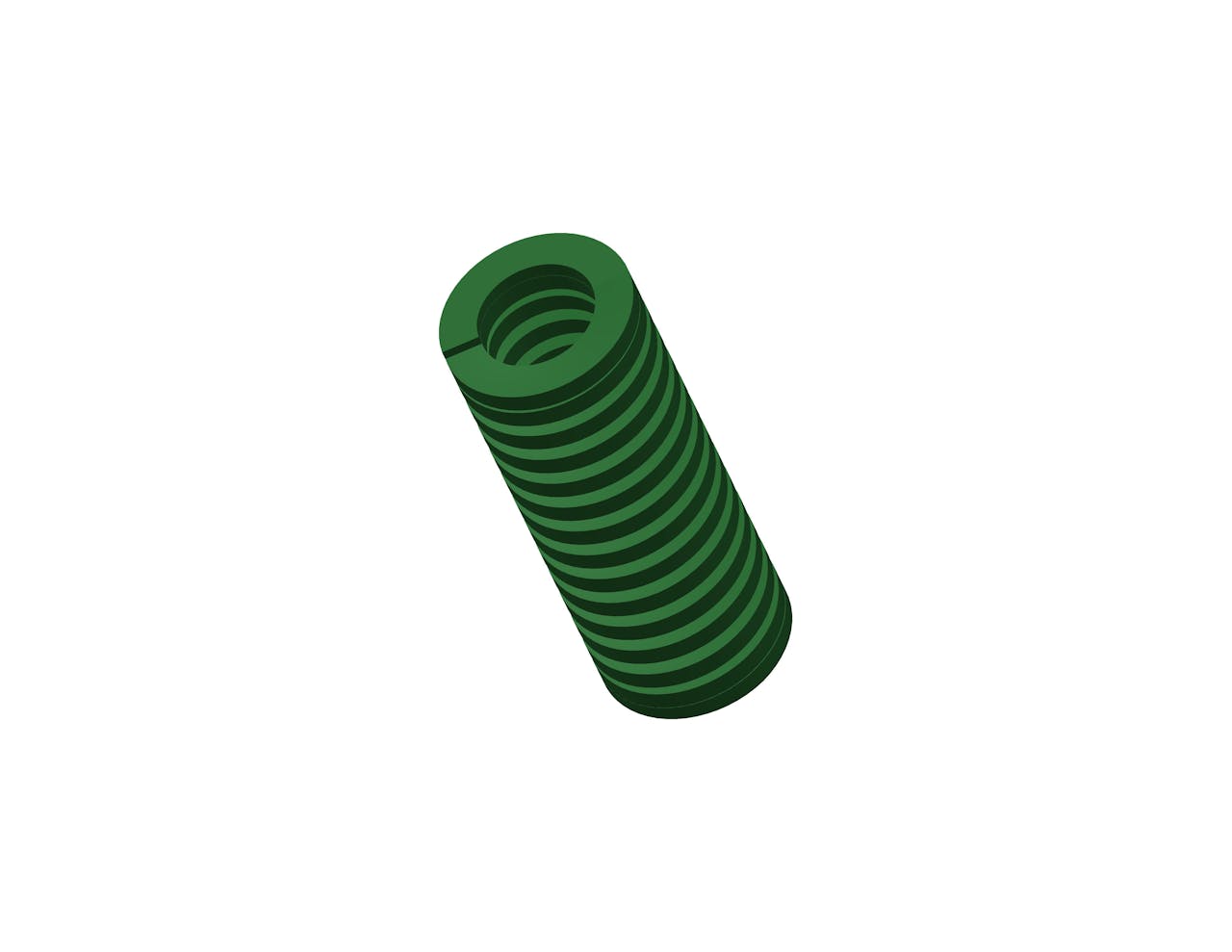

D-9080511CS - 1.25 Inch Chrome Silicon Die Spring

Inventory:
Estimated Lead Time

1.25 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 30 lb
Brand Century Spring
Deflection For Average Life 0.31 in
Deflection For Long Life 0.38 in
Display Name D-9080511
Duty Load Light
Finish None
Finish Color Green
Free Length 1.25 in
Hole Size 0.5 in
Long Life Deflection Force 36 lb
Material Chrome Silicon
Maximum Deflection 0.5 in
Maximum Deflection Force 47 lb
Measurement Units Standard
Rate 94 lbs/in
Rod Size 0.2813 in
SKU D-9080511CS
Wire Diameter 0.095 in x 0.052 in
Specs (in metric)
Label Value
Average Life Deflection Force 13.61 kg
Brand Century Spring
Deflection For Average Life 7.87 mm
Deflection For Long Life 9.65 mm
Display Name D-9080511
Duty Load Light
Finish None
Finish Color Green
Free Length 31.75 mm
Hole Size 12.7 mm
Long Life Deflection Force 16.33 kg
Material Chrome Silicon
Maximum Deflection 12.7 mm
Maximum Deflection Force 21.32 kg
Measurement Units Standard
Rate 16.46 N/mm
Rod Size 7.15 mm
SKU D-9080511CS
Wire Diameter 2.41 mm x 1.32 mm
