Century Spring

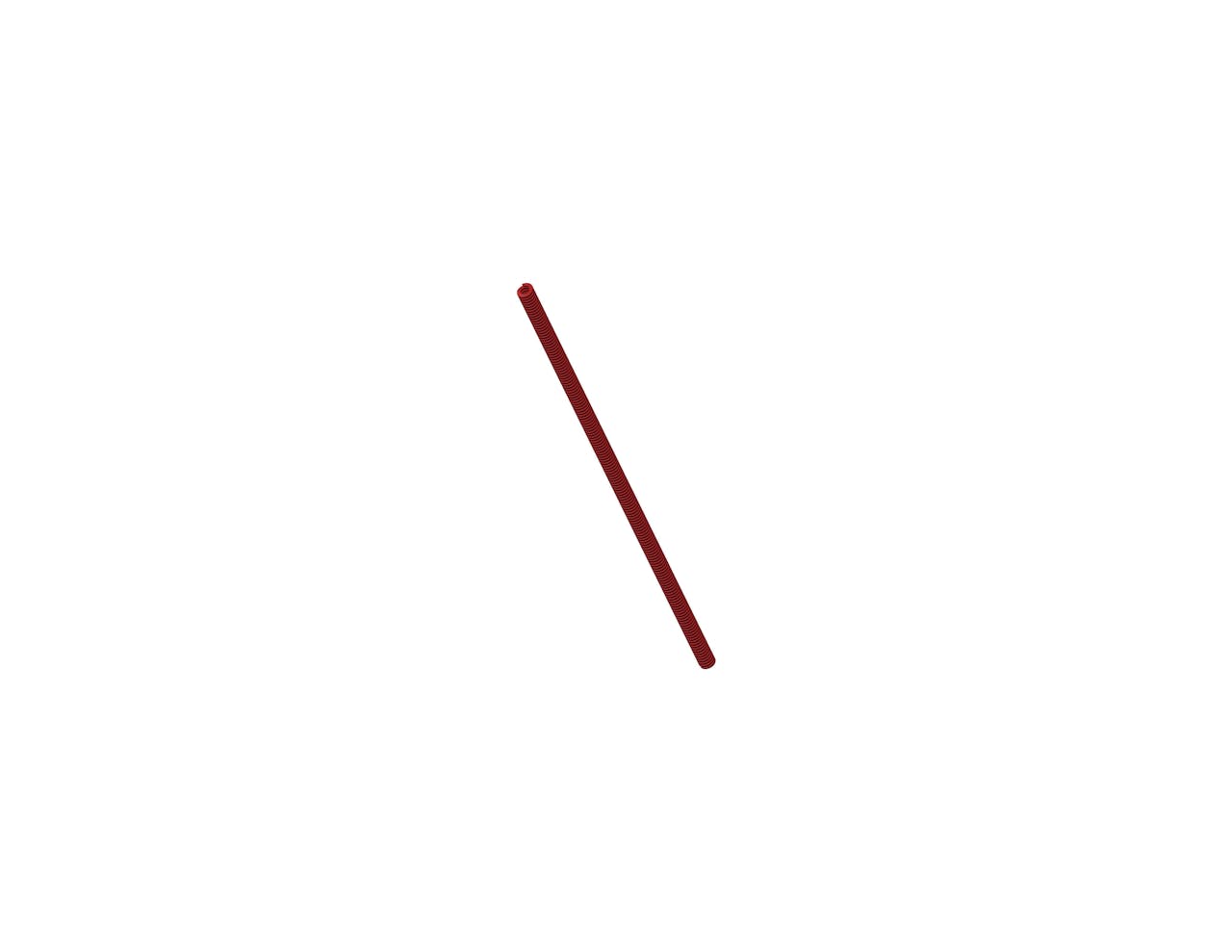

D-9064826CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 26 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 3 in
Display Name D-9064826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 12 in
Hole Size 0.375 in
Long Life Deflection Force 32 lb
Material Chrome Silicon
Maximum Deflection 3.6 in
Maximum Deflection Force 39 lb
Measurement Units Standard
Rate 11 lbs/in
Rod Size 0.1875 in
SKU D-9064826CS
Wire Diameter 0.071 in x 0.053 in
Specs (in metric)
Label Value
Average Life Deflection Force 11.79 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 76.2 mm
Display Name D-9064826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 304.8 mm
Hole Size 9.53 mm
Long Life Deflection Force 14.51 kg
Material Chrome Silicon
Maximum Deflection 91.44 mm
Maximum Deflection Force 17.69 kg
Measurement Units Standard
Rate 1.93 N/mm
Rod Size 4.76 mm
SKU D-9064826CS
Wire Diameter 1.8 mm x 1.35 mm
