Century Spring

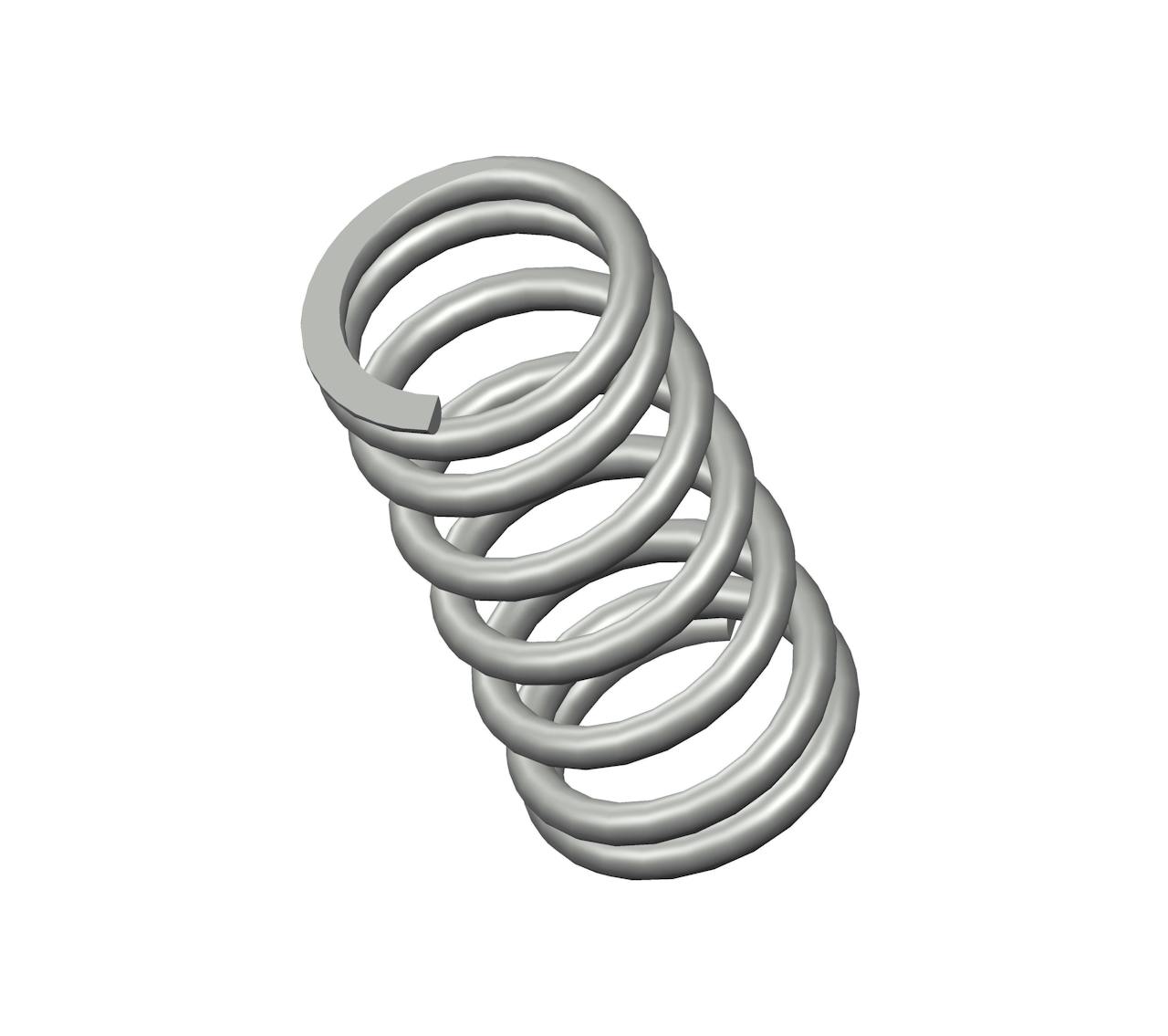

D-9060426CS - 1 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 25 lb
Brand Century Spring
Deflection For Average Life 0.2 in
Deflection For Long Life 0.25 in
Display Name D-9060426
Duty Load Heavy
Finish None
Finish Color Red
Free Length 1 in
Hole Size 0.375 in
Long Life Deflection Force 31 lb
Material Chrome Silicon
Maximum Deflection 0.3 in
Maximum Deflection Force 37 lb
Measurement Units Standard
Rate 126 lbs/in
Rod Size 0.1875 in
SKU D-9060426CS
Wire Diameter 0.071 in x 0.053 in
Specs (in metric)
Label Value
Average Life Deflection Force 11.34 kg
Brand Century Spring
Deflection For Average Life 5.08 mm
Deflection For Long Life 6.35 mm
Display Name D-9060426
Duty Load Heavy
Finish None
Finish Color Red
Free Length 25.4 mm
Hole Size 9.53 mm
Long Life Deflection Force 14.06 kg
Material Chrome Silicon
Maximum Deflection 7.62 mm
Maximum Deflection Force 16.78 kg
Measurement Units Standard
Rate 22.06 N/mm
Rod Size 4.76 mm
SKU D-9060426CS
Wire Diameter 1.8 mm x 1.35 mm
