Century Spring

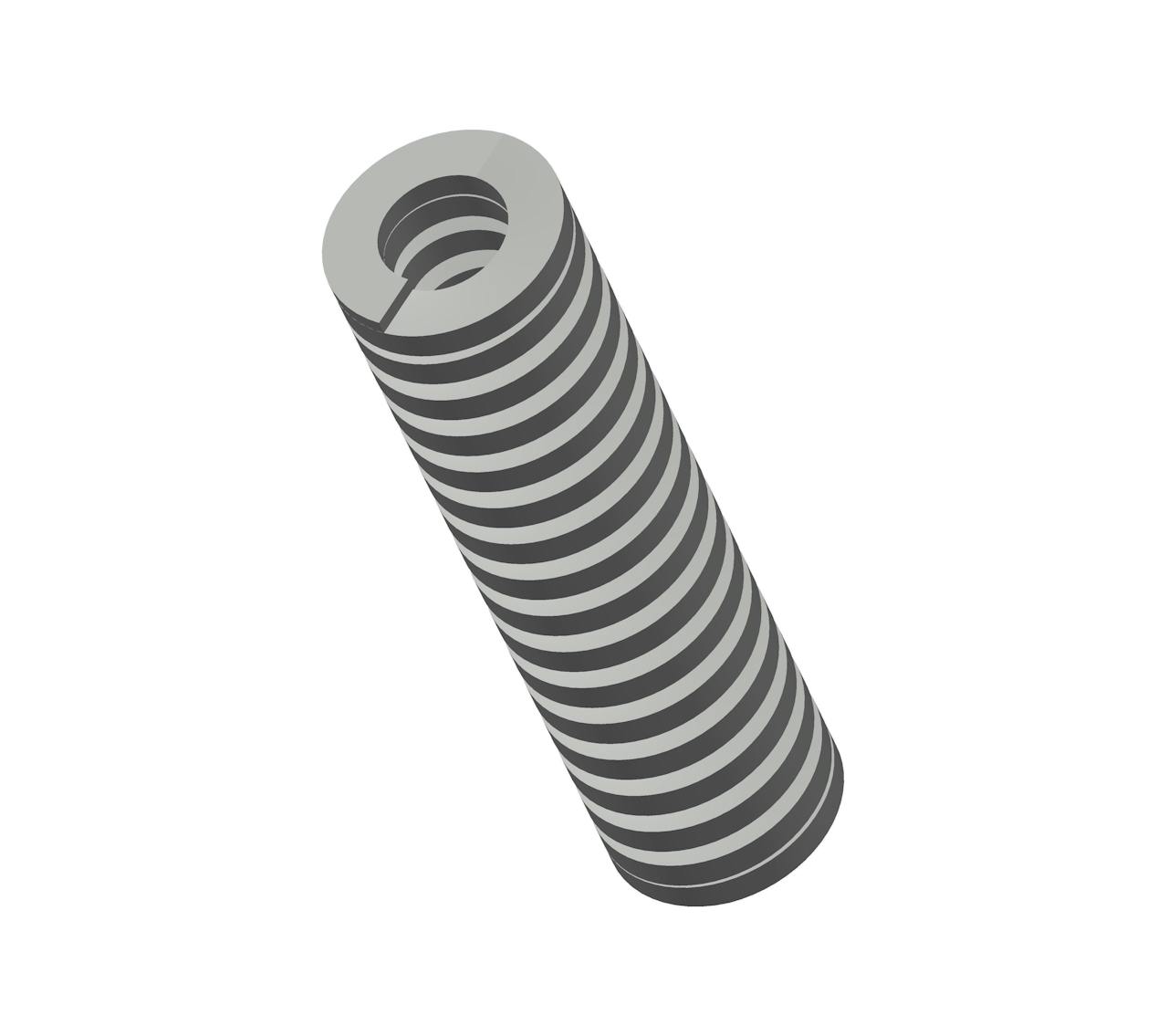

D-82CS - 4.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 450 lb
Brand Century Spring
Deflection For Average Life 1.13 in
Display Name D-82
Duty Load Medium
Finish None
Free Length 4.5 in
Hole Size 1.25 in
Material Oil Tempered
Maximum Deflection 1.8 in
Maximum Deflection Force 720 lb
Measurement Units Standard
Rate 400 lbs/in
Rod Size 0.625 in
SKU D-82CS
Wire Diameter 0.292 in x 0.17 in
Specs (in metric)
Label Value
Average Life Deflection Force 204.08 kg
Brand Century Spring
Deflection For Average Life 28.7 mm
Display Name D-82
Duty Load Medium
Finish None
Free Length 114.3 mm
Hole Size 31.75 mm
Material Oil Tempered
Maximum Deflection 45.72 mm
Maximum Deflection Force 326.53 kg
Measurement Units Standard
Rate 70.04 N/mm
Rod Size 15.88 mm
SKU D-82CS
Wire Diameter 7.42 mm x 4.32 mm
