Century Spring

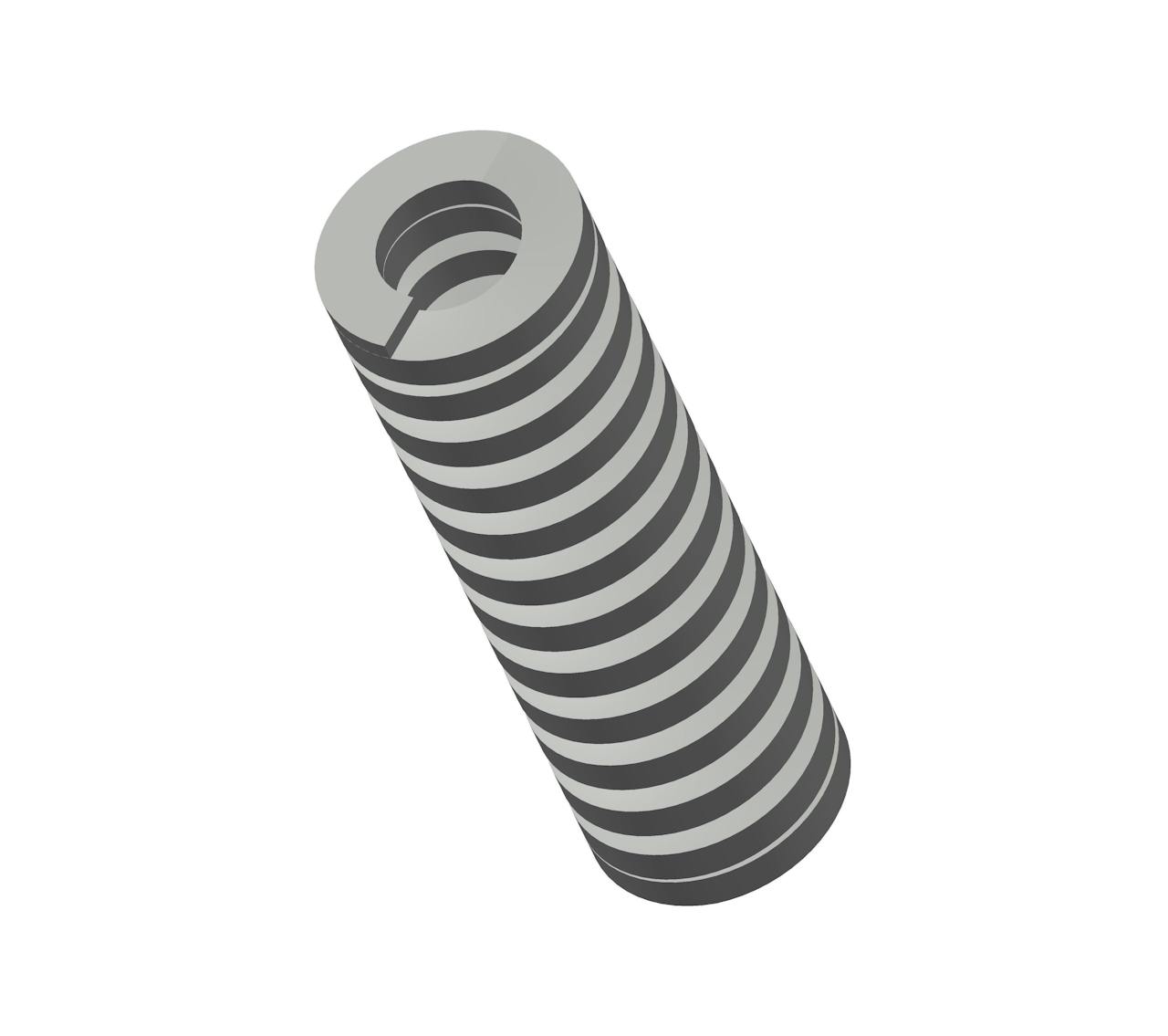

D-70CS - 3.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 378 lb
Brand Century Spring
Deflection For Average Life 0.88 in
Display Name D-70
Duty Load Medium
Finish None
Free Length 3.5 in
Hole Size 1.125 in
Material Oil Tempered
Maximum Deflection 1.4 in
Maximum Deflection Force 605 lb
Measurement Units Standard
Rate 432 lbs/in
Rod Size 0.5625 in
SKU D-70CS
Wire Diameter 0.25 in x 0.156 in
Specs (in metric)
Label Value
Average Life Deflection Force 171.43 kg
Brand Century Spring
Deflection For Average Life 22.35 mm
Display Name D-70
Duty Load Medium
Finish None
Free Length 88.9 mm
Hole Size 28.58 mm
Material Oil Tempered
Maximum Deflection 35.56 mm
Maximum Deflection Force 274.38 kg
Measurement Units Standard
Rate 75.64 N/mm
Rod Size 14.29 mm
SKU D-70CS
Wire Diameter 6.35 mm x 3.96 mm
