Century Spring

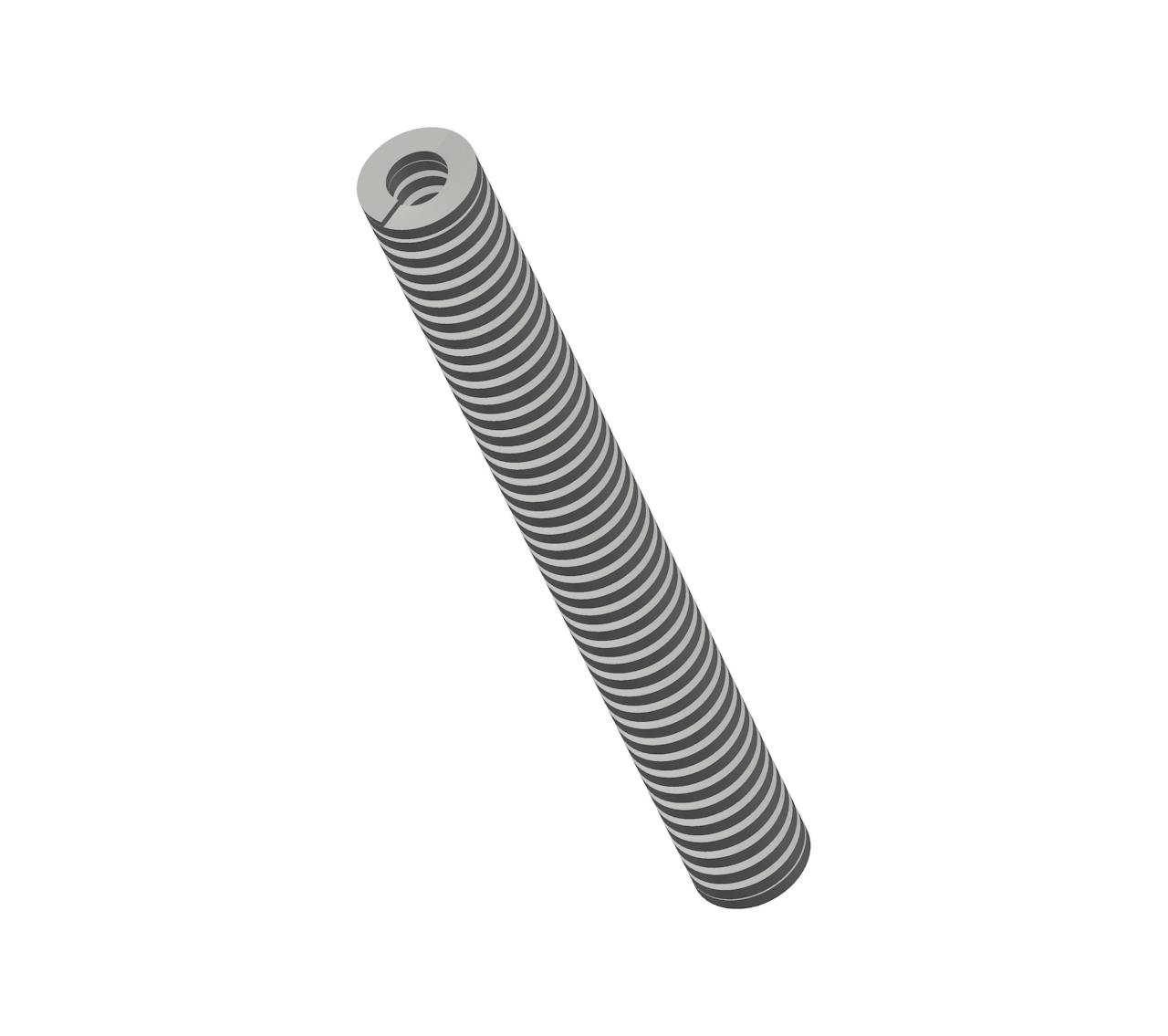

D-63CS - 9 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

9 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 252 lb
Brand Century Spring
Deflection For Average Life 2.25 in
Display Name D-63
Duty Load Medium
Finish None
Free Length 9 in
Hole Size 1.0625 in
Material Oil Tempered
Maximum Deflection 3.6 in
Maximum Deflection Force 403 lb
Measurement Units Standard
Rate 112 lbs/in
Rod Size 0.5 in
SKU D-63CS
Wire Diameter 0.25 in x 0.125 in
Specs (in metric)
Label Value
Average Life Deflection Force 114.29 kg
Brand Century Spring
Deflection For Average Life 57.15 mm
Display Name D-63
Duty Load Medium
Finish None
Free Length 228.6 mm
Hole Size 26.99 mm
Material Oil Tempered
Maximum Deflection 91.44 mm
Maximum Deflection Force 182.77 kg
Measurement Units Standard
Rate 19.61 N/mm
Rod Size 12.7 mm
SKU D-63CS
Wire Diameter 6.35 mm x 3.18 mm
