Century Spring

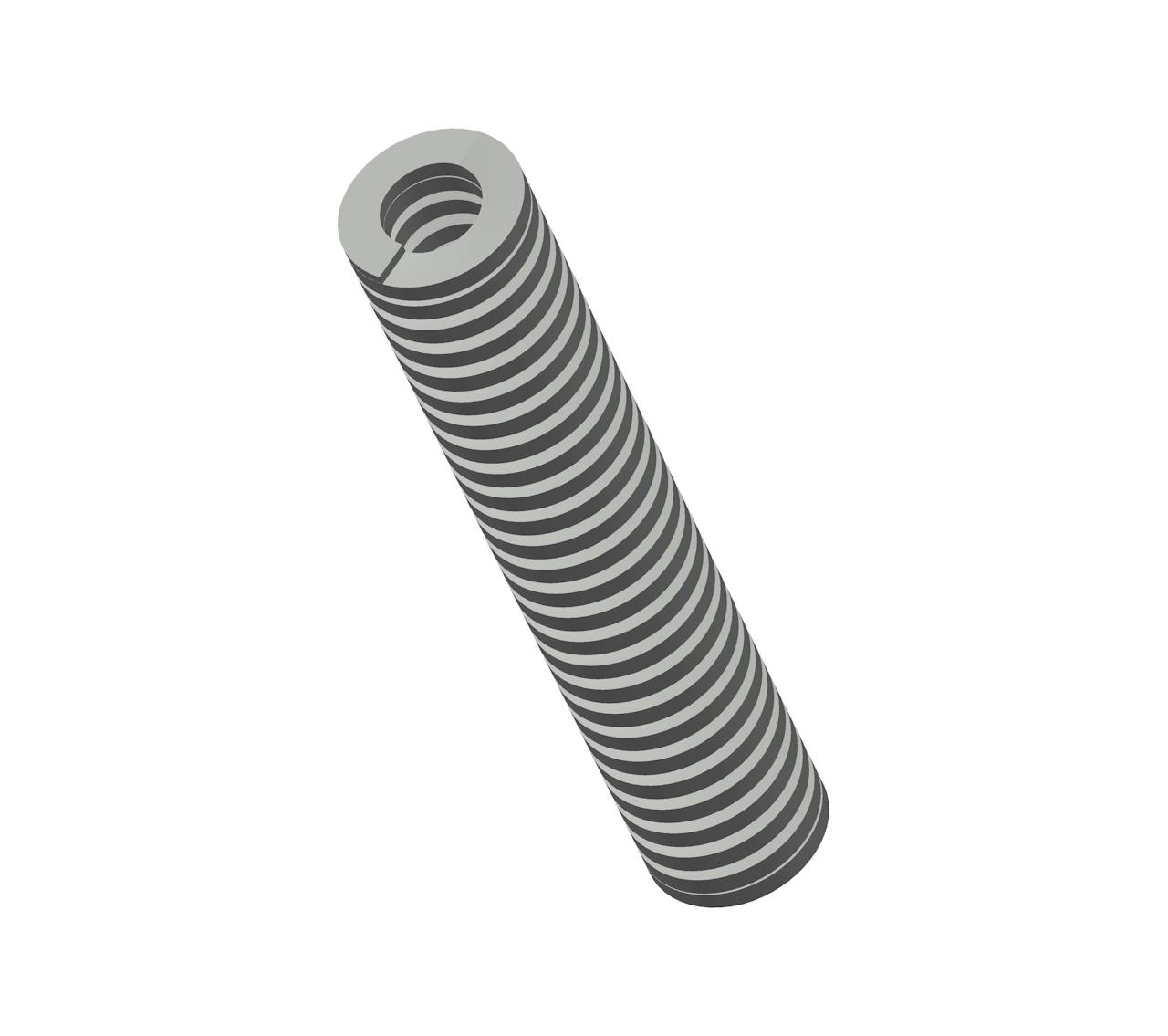

D-49CS - 5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 170 lb
Brand Century Spring
Deflection For Average Life 1.25 in
Display Name D-49
Duty Load Medium
Finish None
Free Length 5 in
Hole Size 1 in
Material Oil Tempered
Maximum Deflection 2 in
Maximum Deflection Force 272 lb
Measurement Units Standard
Rate 136 lbs/in
Rod Size 0.5 in
SKU D-49CS
Wire Diameter 0.219 in x 0.109 in
Specs (in metric)
Label Value
Average Life Deflection Force 77.1 kg
Brand Century Spring
Deflection For Average Life 31.75 mm
Display Name D-49
Duty Load Medium
Finish None
Free Length 127 mm
Hole Size 25.4 mm
Material Oil Tempered
Maximum Deflection 50.8 mm
Maximum Deflection Force 123.36 kg
Measurement Units Standard
Rate 23.81 N/mm
Rod Size 12.7 mm
SKU D-49CS
Wire Diameter 5.56 mm x 2.77 mm
