Century Spring

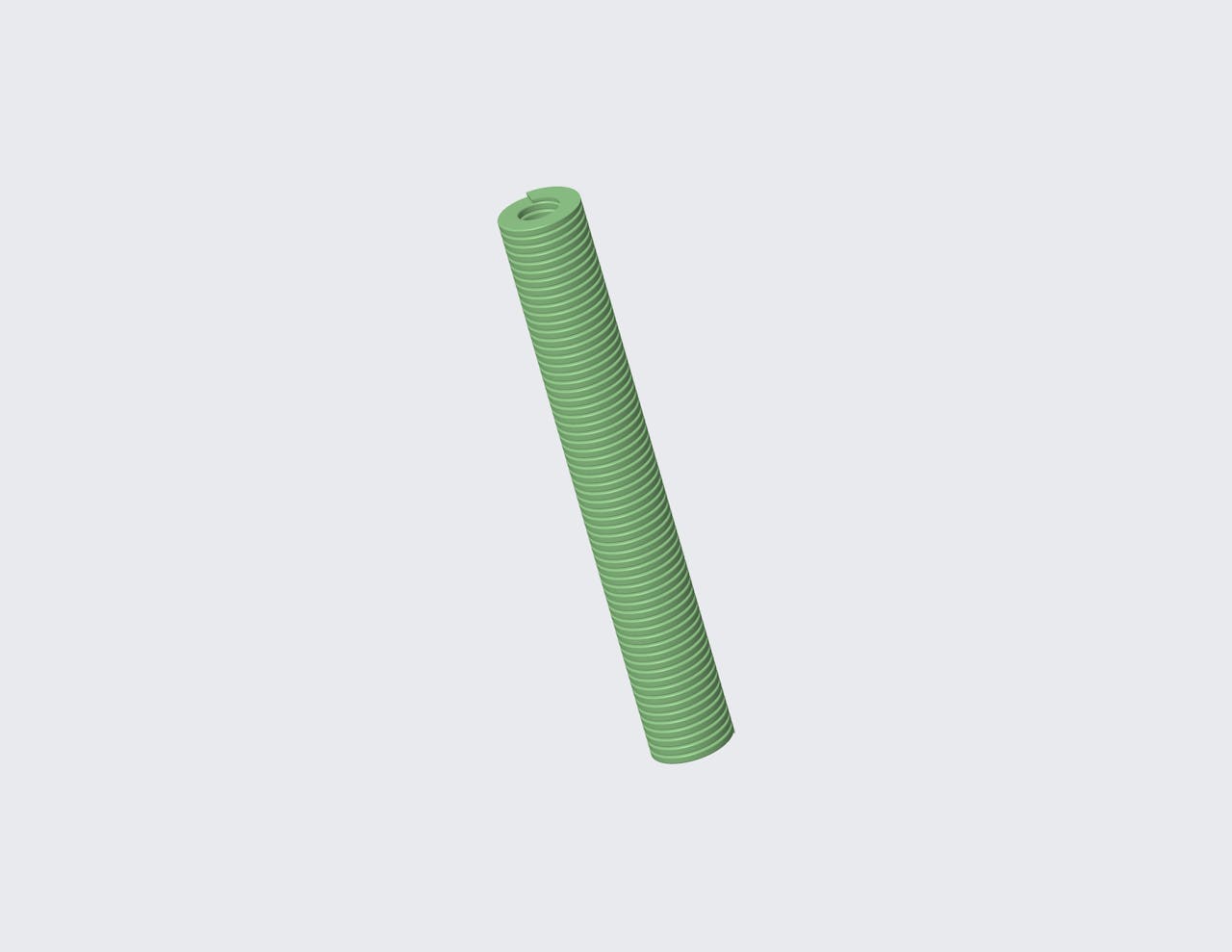

D-307748CS - 305 Millimeter Ultra Strong Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 305 Millimeter long and has a 246 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.2008 in
Deflection 2 1.622 in
Deflection 3 1.8031 in
Display Name D-307748
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 12.0079 in
Hole Size 1.5748 in
Load 1 1686.8255 lbf
Load 2 2276.9784 lbf
Load 3 2530.1259 lbf
Load At Max Deflection 4147.9317 lbf
Material Chrome Silicon
Max Deflection 2.9528 in
Measurement Units Metric
Rate 1404.9115 lbs/in
Rod Size 0.7874 in
SKU D-307748CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.5 mm
Deflection 2 41.2 mm
Deflection 3 45.8 mm
Display Name D-307748
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 305 mm
Hole Size 40 mm
Load 1 7503 N
Load 2 10128 N
Load 3 11254 N
Load At Max Deflection 18450 N
Material Chrome Silicon
Max Deflection 75 mm
Measurement Units Metric
Rate 246 N/mm
Rod Size 20 mm
SKU D-307748CS
