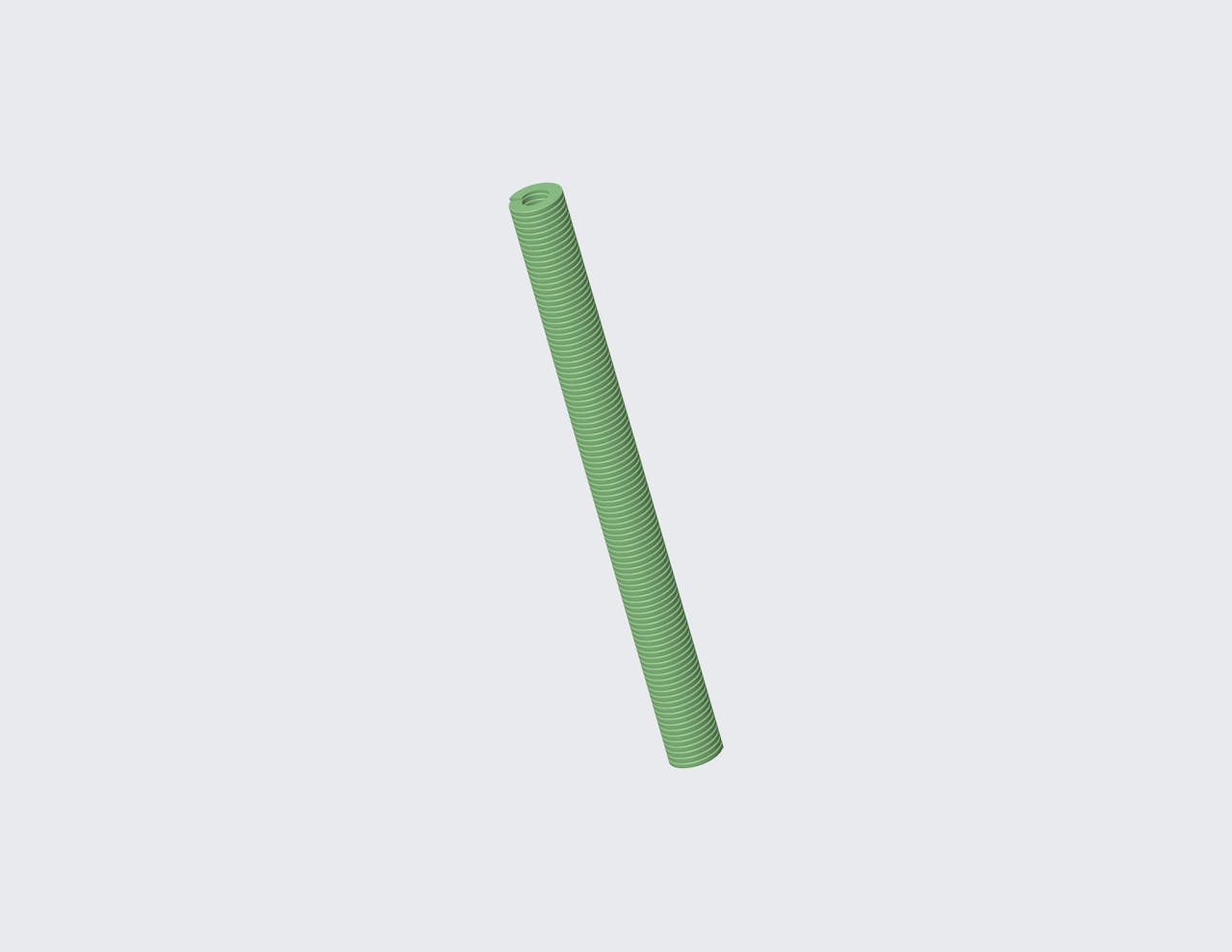

D-307548CS - 305 Millimeter Ultra Strong Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 305 Millimeter long and has a 136 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.2008 in
Deflection 2 1.622 in
Deflection 3 1.8031 in
Display Name D-307548
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 12.0079 in
Hole Size 0.9843 in
Load 1 932.554 lbf
Load 2 1258.9928 lbf
Load 3 1398.8309 lbf
Load At Max Deflection 1926.259 lbf
Material Chrome Silicon
Max Deflection 2.4803 in
Measurement Units Metric
Rate 776.699 lbs/in
Rod Size 0.4921 in
SKU D-307548CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.5 mm
Deflection 2 41.2 mm
Deflection 3 45.8 mm
Display Name D-307548
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 305 mm
Hole Size 25 mm
Load 1 4148 N
Load 2 5600 N
Load 3 6222 N
Load At Max Deflection 8568 N
Material Chrome Silicon
Max Deflection 63 mm
Measurement Units Metric
Rate 136 N/mm
Rod Size 12.5 mm
SKU D-307548CS
