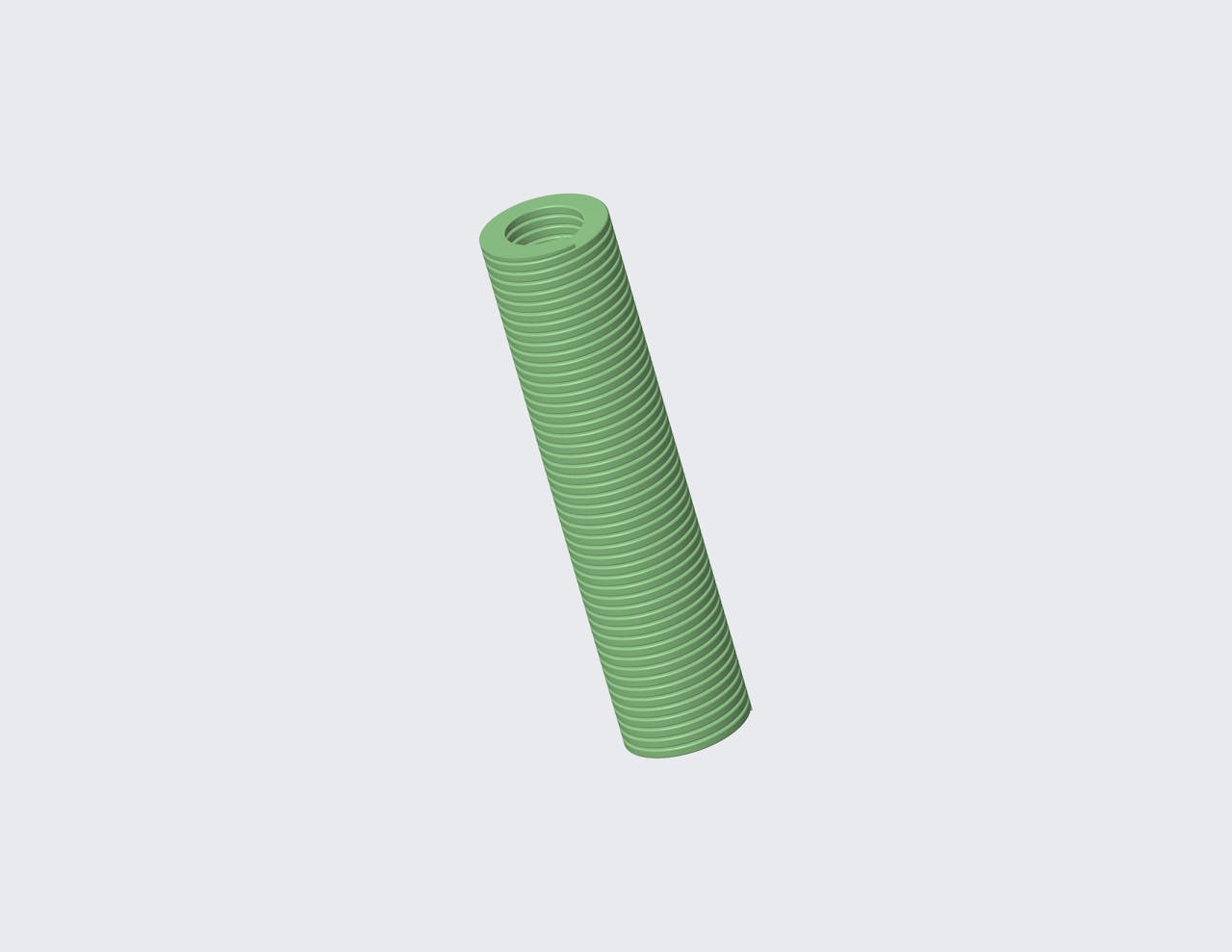

D-306948CS - 305 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 305 Millimeter long and has a 218 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.0433 in
Deflection 2 2.4016 in
Display Name D-306948
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 12.0079 in
Hole Size 2.4803 in
Load 1 2540.9173 lbf
Load 2 2989.4335 lbf
Load At Max Deflection 3493.0306 lbf
Material Chrome Silicon
Max Deflection 2.8059 in
Measurement Units Metric
Rate 1245.0029 lbs/in
Rod Size 1.4961 in
SKU D-306948CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 51.9 mm
Deflection 2 61 mm
Display Name D-306948
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 305 mm
Hole Size 63 mm
Load 1 11302 N
Load 2 13297 N
Load At Max Deflection 15537 N
Material Chrome Silicon
Max Deflection 71.27 mm
Measurement Units Metric
Rate 218 N/mm
Rod Size 38 mm
SKU D-306948CS
