Century Spring

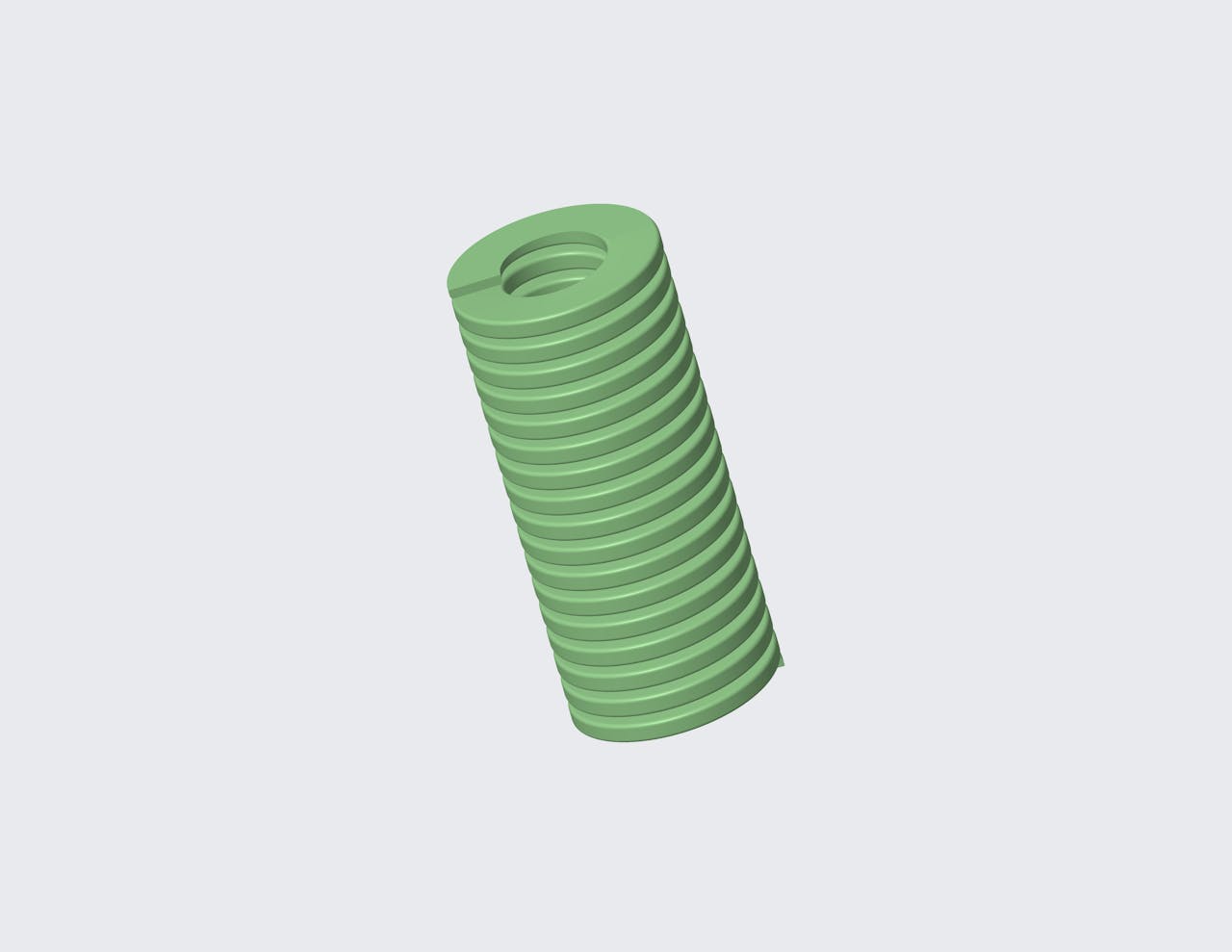

D-306820CS - 127 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 127 Millimeter long and has a 304.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.8504 in
Deflection 2 1 in
Deflection 3 1.252 in
Display Name D-306820
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 5 in
Hole Size 1.9685 in
Load 1 1479.7662 lbf
Load 2 1740.7824 lbf
Load 3 2176.0342 lbf
Load At Max Deflection 2974.3705 lbf
Material Chrome Silicon
Max Deflection 1.7087 in
Measurement Units Metric
Rate 1741.2907 lbs/in
Rod Size 0.9843 in
SKU D-306820CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 21.6 mm
Deflection 2 25.4 mm
Deflection 3 31.8 mm
Display Name D-306820
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 127 mm
Hole Size 50 mm
Load 1 6582 N
Load 2 7743 N
Load 3 9679 N
Load At Max Deflection 13230 N
Material Chrome Silicon
Max Deflection 43.4 mm
Measurement Units Metric
Rate 304.9 N/mm
Rod Size 25 mm
SKU D-306820CS
