Century Spring

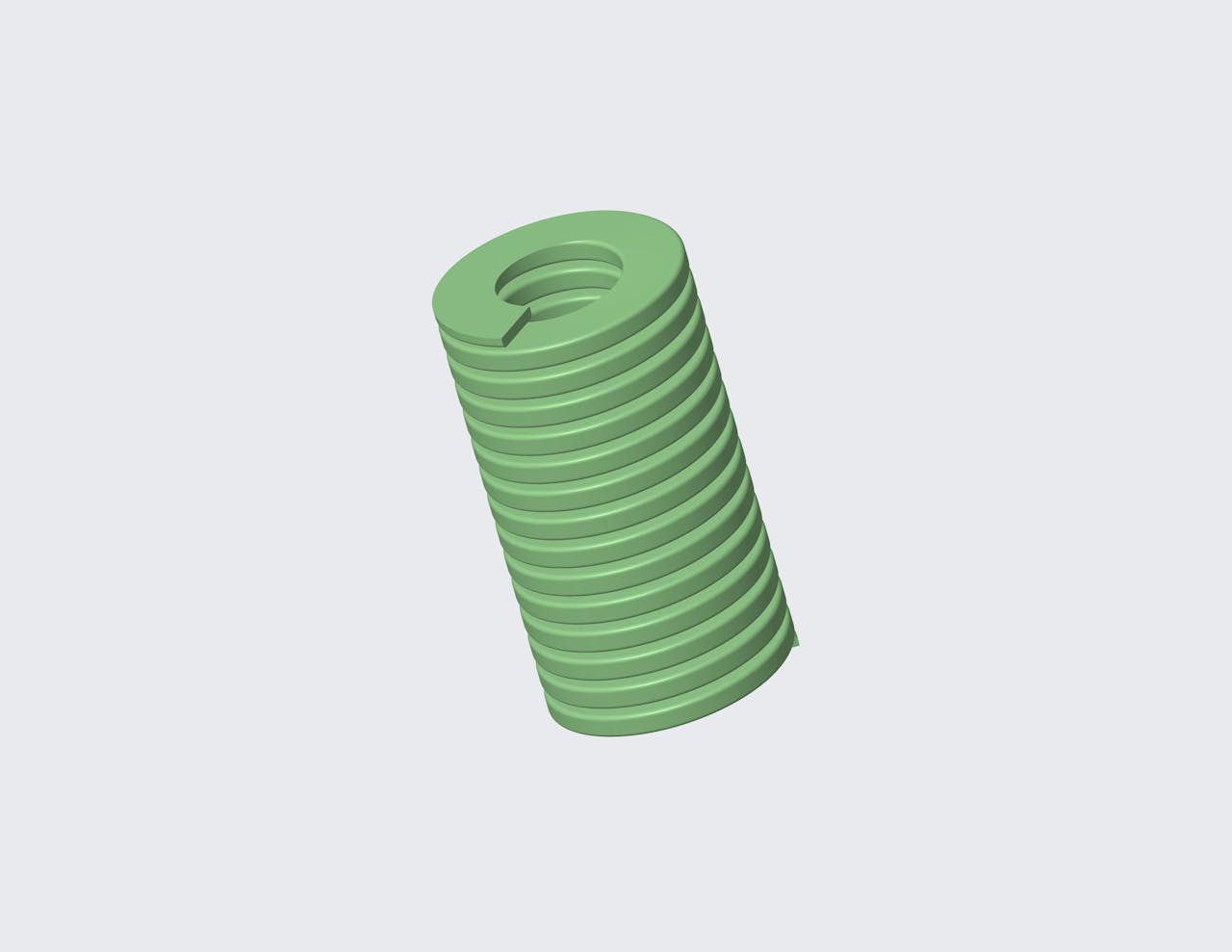

D-306610CS - 64 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 64 Millimeter long and has a 273.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.4291 in
Deflection 2 0.5039 in
Deflection 3 0.6299 in
Display Name D-306610
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 2.5197 in
Hole Size 1.2598 in
Load 1 668.6151 lbf
Load 2 786.6457 lbf
Load 3 983.1385 lbf
Load At Max Deflection 1185.9263 lbf
Material Chrome Silicon
Max Deflection 0.7598 in
Measurement Units Metric
Rate 1560.8224 lbs/in
Rod Size 0.6299 in
SKU D-306610CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 10.9 mm
Deflection 2 12.8 mm
Deflection 3 16 mm
Display Name D-306610
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 64 mm
Hole Size 32 mm
Load 1 2974 N
Load 2 3499 N
Load 3 4373 N
Load At Max Deflection 5275 N
Material Chrome Silicon
Max Deflection 19.3 mm
Measurement Units Metric
Rate 273.3 N/mm
Rod Size 16 mm
SKU D-306610CS
