Century Spring

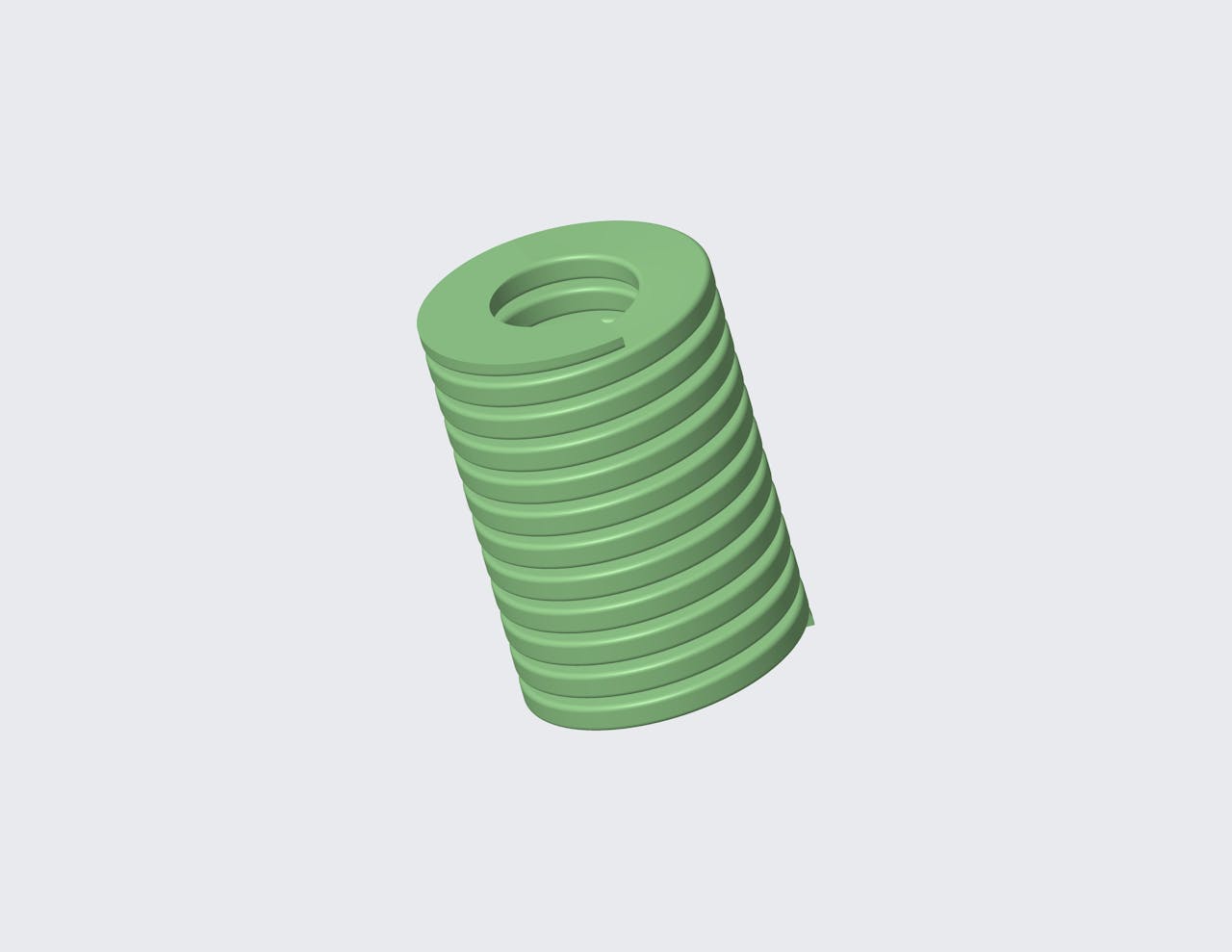

D-306608CS - 51 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 51 Millimeter long and has a 351.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.3425 in
Deflection 2 0.4016 in
Deflection 3 0.5039 in
Display Name D-306608
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 2.0079 in
Hole Size 1.2598 in
Load 1 685.027 lbf
Load 2 805.7554 lbf
Load 3 1007.4191 lbf
Load At Max Deflection 1177.1583 lbf
Material Chrome Silicon
Max Deflection 0.5866 in
Measurement Units Metric
Rate 2006.8532 lbs/in
Rod Size 0.6299 in
SKU D-306608CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 8.7 mm
Deflection 2 10.2 mm
Deflection 3 12.8 mm
Display Name D-306608
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 51 mm
Hole Size 32 mm
Load 1 3047 N
Load 2 3584 N
Load 3 4481 N
Load At Max Deflection 5236 N
Material Chrome Silicon
Max Deflection 14.9 mm
Measurement Units Metric
Rate 351.4 N/mm
Rod Size 16 mm
SKU D-306608CS
