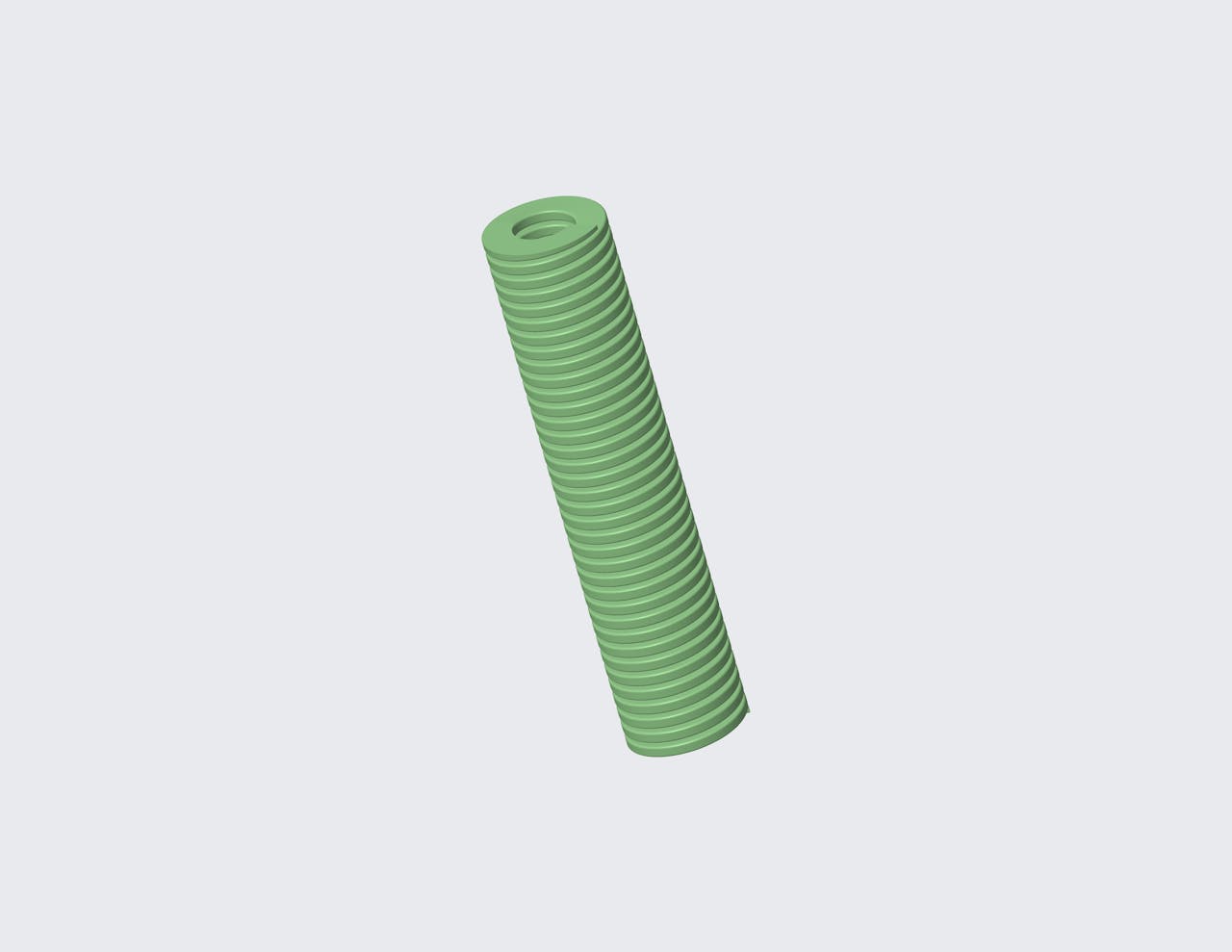

D-306520CS - 127 Millimeter Extra Heavy Duty Metric Die Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 127 Millimeter long and has a 76.3 Newtons per Millimeter spring rate.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Deflection 1 | 0.8504 in |
| Deflection 2 | 1 in |
| Deflection 3 | 1.252 in |
| Display Name | D-306520 |
| Duty Load | Extra Heavy |
| Finish | Powder Coat |
| Finish Color | Yellow |
| Free Length | 5 in |
| Hole Size | 0.9843 in |
| Load 1 | 370.2788 lbf |
| Load 2 | 435.7014 lbf |
| Load 3 | 544.7392 lbf |
| Load At Max Deflection | 723.9209 lbf |
| Material | Chrome Silicon |
| Max Deflection | 1.6614 in |
| Measurement Units | Metric |
| Rate | 435.751 lbs/in |
| Rod Size | 0.4921 in |
| SKU | D-306520CS |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Deflection 1 | 21.6 mm |
| Deflection 2 | 25.4 mm |
| Deflection 3 | 31.8 mm |
| Display Name | D-306520 |
| Duty Load | Extra Heavy |
| Finish | Powder Coat |
| Finish Color | Yellow |
| Free Length | 127 mm |
| Hole Size | 25 mm |
| Load 1 | 1647 N |
| Load 2 | 1938 N |
| Load 3 | 2423 N |
| Load At Max Deflection | 3220 N |
| Material | Chrome Silicon |
| Max Deflection | 42.2 mm |
| Measurement Units | Metric |
| Rate | 76.3 N/mm |
| Rod Size | 12.5 mm |
| SKU | D-306520CS |
