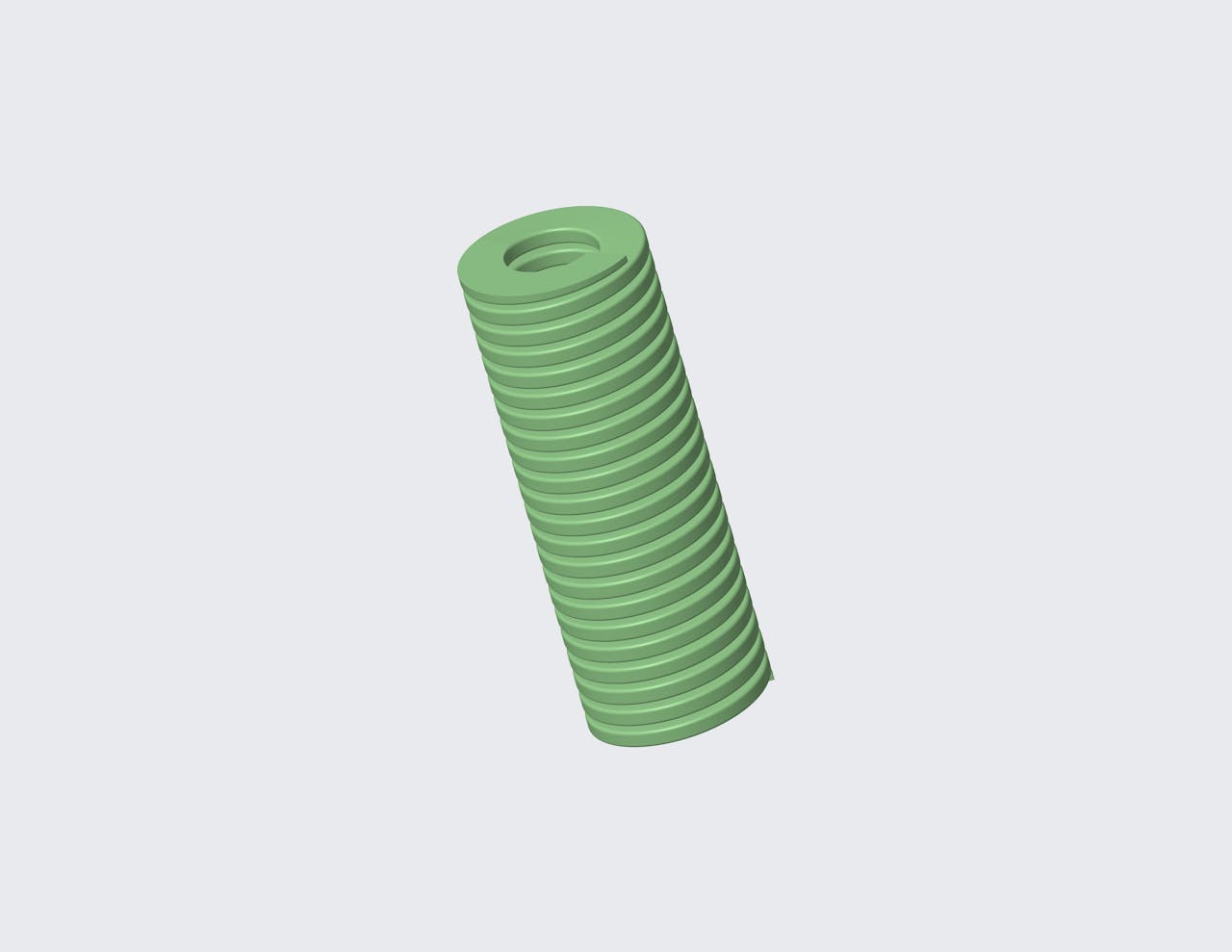

D-306512CS - 76 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 76 Millimeter long and has a 129.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5079 in
Deflection 2 0.5984 in
Deflection 3 0.748 in
Display Name D-306512
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 2.9921 in
Hole Size 0.9843 in
Load 1 375.6745 lbf
Load 2 441.9964 lbf
Load 3 552.3831 lbf
Load At Max Deflection 700.7644 lbf
Material Chrome Silicon
Max Deflection 0.9488 in
Measurement Units Metric
Rate 738.4352 lbs/in
Rod Size 0.4921 in
SKU D-306512CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.9 mm
Deflection 2 15.2 mm
Deflection 3 19 mm
Display Name D-306512
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 76 mm
Hole Size 25 mm
Load 1 1671 N
Load 2 1966 N
Load 3 2457 N
Load At Max Deflection 3117 N
Material Chrome Silicon
Max Deflection 24.1 mm
Measurement Units Metric
Rate 129.3 N/mm
Rod Size 12.5 mm
SKU D-306512CS
