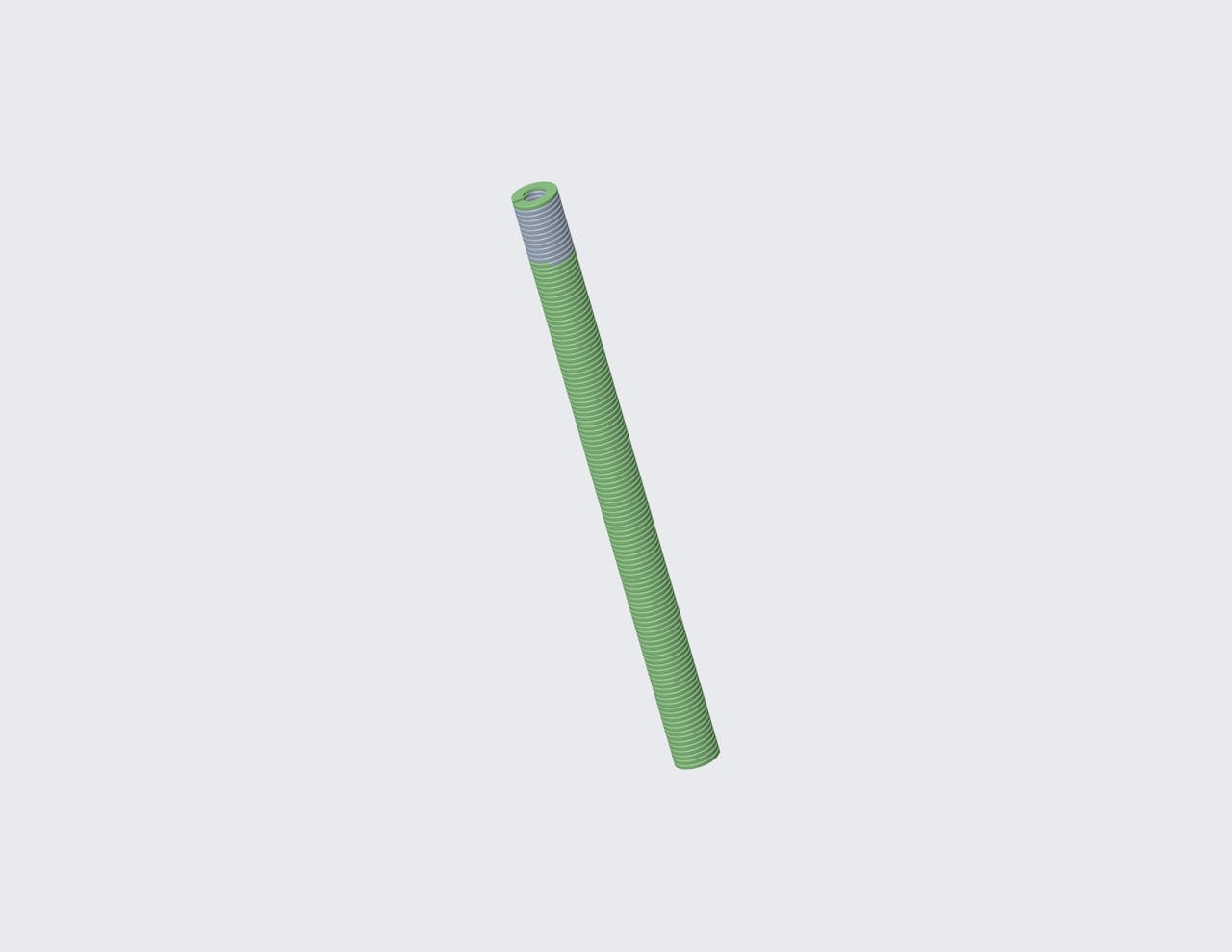

D-306448CS - 305 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 305 Millimeter long and has a 22 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.0433 in
Deflection 2 2.4016 in
Deflection 3 3.0039 in
Display Name D-306448
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 12.0079 in
Hole Size 0.7874 in
Load 1 241.6817 lbf
Load 2 284.3975 lbf
Load 3 355.4406 lbf
Load At Max Deflection 408.0486 lbf
Material Chrome Silicon
Max Deflection 3.248 in
Measurement Units Metric
Rate 125.6425 lbs/in
Rod Size 0.3937 in
SKU D-306448CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 51.9 mm
Deflection 2 61 mm
Deflection 3 76.3 mm
Display Name D-306448
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 305 mm
Hole Size 20 mm
Load 1 1075 N
Load 2 1265 N
Load 3 1581 N
Load At Max Deflection 1815 N
Material Chrome Silicon
Max Deflection 82.5 mm
Measurement Units Metric
Rate 22 N/mm
Rod Size 10 mm
SKU D-306448CS
