Century Spring

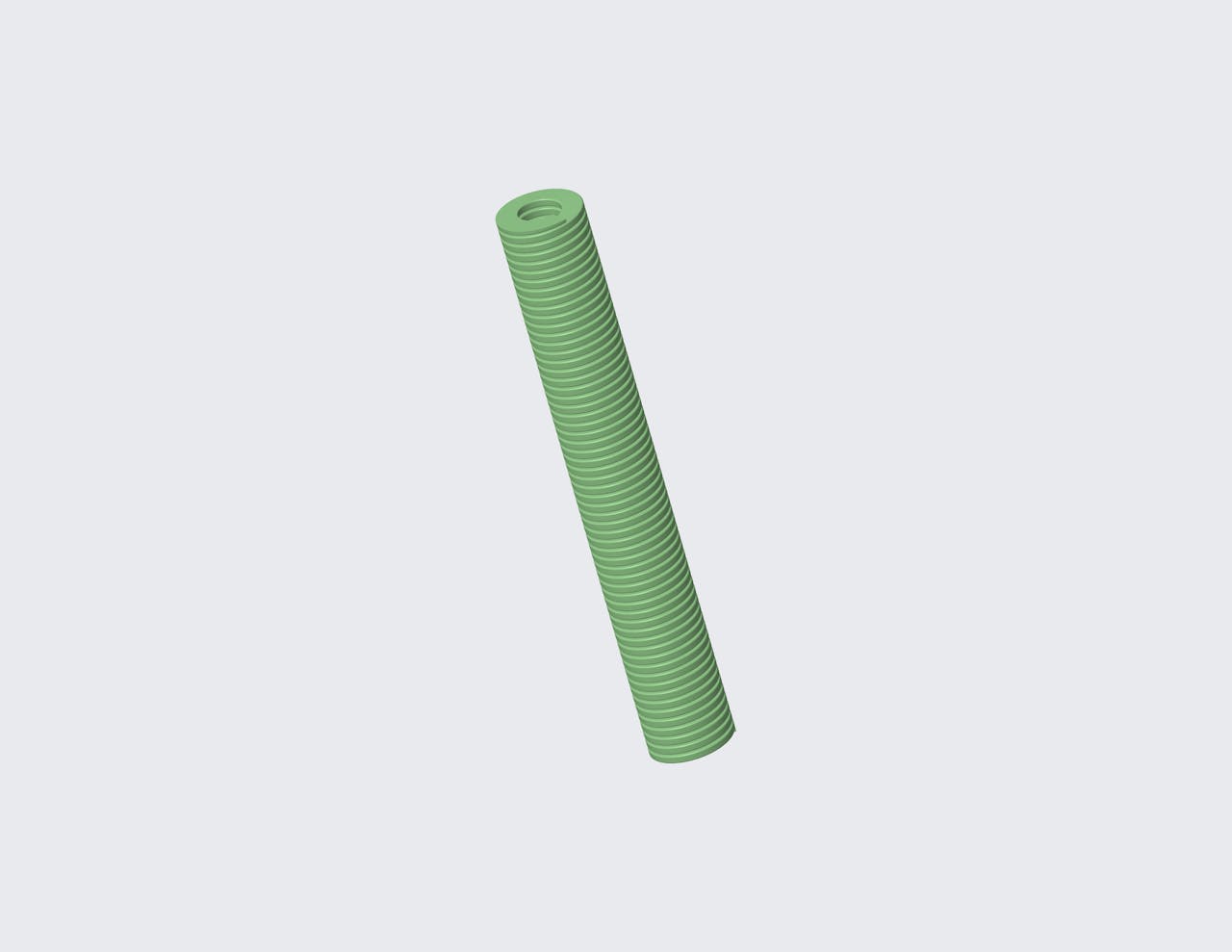

D-306424CS - 152 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 152 Millimeter long and has a 44.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0157 in
Deflection 2 1.1969 in
Deflection 3 1.4961 in
Display Name D-306424
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 5.9843 in
Hole Size 0.7874 in
Load 1 243.2554 lbf
Load 2 286.196 lbf
Load 3 357.6888 lbf
Load At Max Deflection 395.2338 lbf
Material Chrome Silicon
Max Deflection 1.5591 in
Measurement Units Metric
Rate 253.5694 lbs/in
Rod Size 0.3937 in
SKU D-306424CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.8 mm
Deflection 2 30.4 mm
Deflection 3 38 mm
Display Name D-306424
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 152 mm
Hole Size 20 mm
Load 1 1082 N
Load 2 1273 N
Load 3 1591 N
Load At Max Deflection 1758 N
Material Chrome Silicon
Max Deflection 39.6 mm
Measurement Units Metric
Rate 44.4 N/mm
Rod Size 10 mm
SKU D-306424CS
