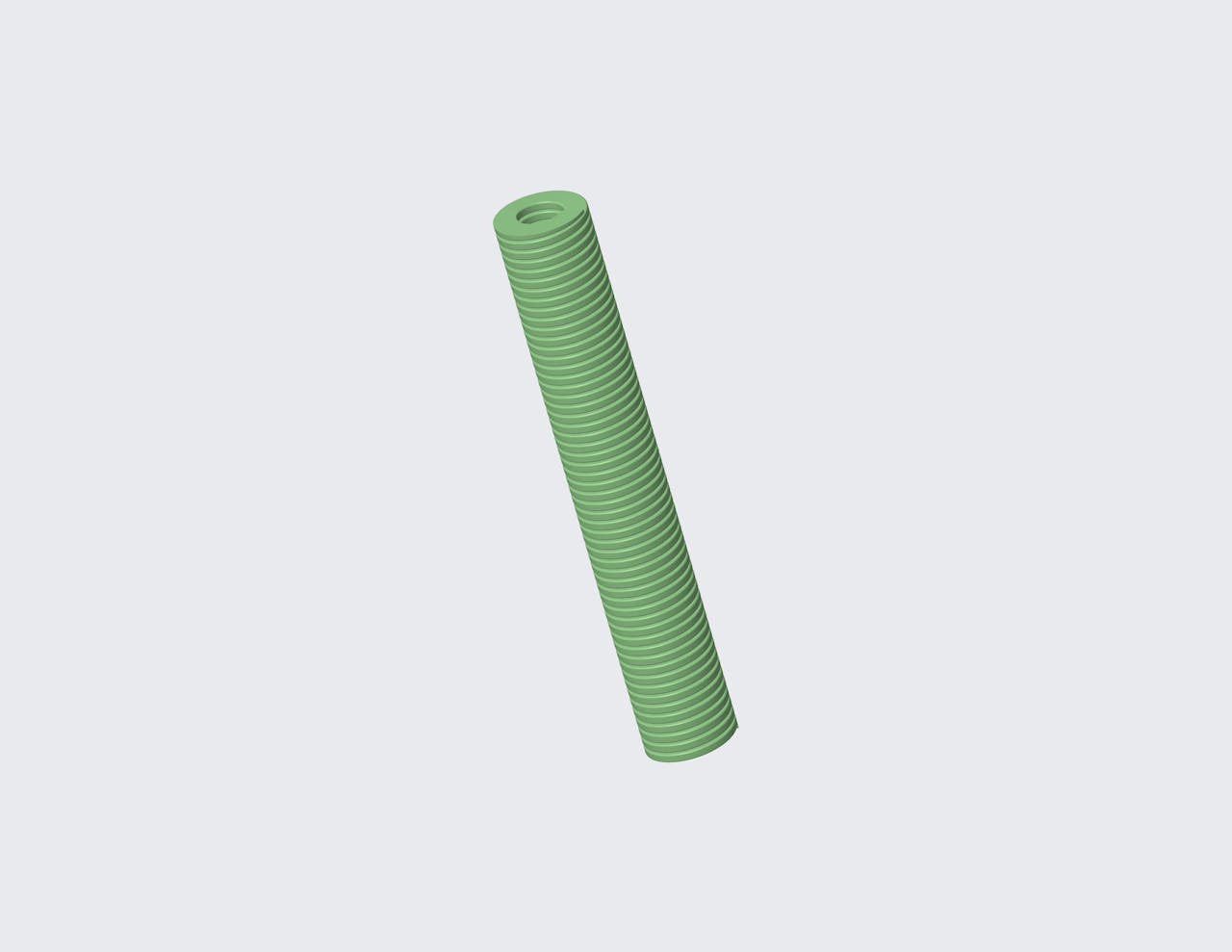

D-306422CS - 139 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 139 Millimeter long and has a 48.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.9291 in
Deflection 2 1.0945 in
Deflection 3 1.3701 in
Display Name D-306422
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 5.4724 in
Hole Size 0.7874 in
Load 1 243.0306 lbf
Load 2 285.9712 lbf
Load 3 357.2392 lbf
Load At Max Deflection 401.304 lbf
Material Chrome Silicon
Max Deflection 1.4488 in
Measurement Units Metric
Rate 276.9846 lbs/in
Rod Size 0.3937 in
SKU D-306422CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 23.6 mm
Deflection 2 27.8 mm
Deflection 3 34.8 mm
Display Name D-306422
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 139 mm
Hole Size 20 mm
Load 1 1081 N
Load 2 1272 N
Load 3 1589 N
Load At Max Deflection 1785 N
Material Chrome Silicon
Max Deflection 36.8 mm
Measurement Units Metric
Rate 48.5 N/mm
Rod Size 10 mm
SKU D-306422CS
