Century Spring

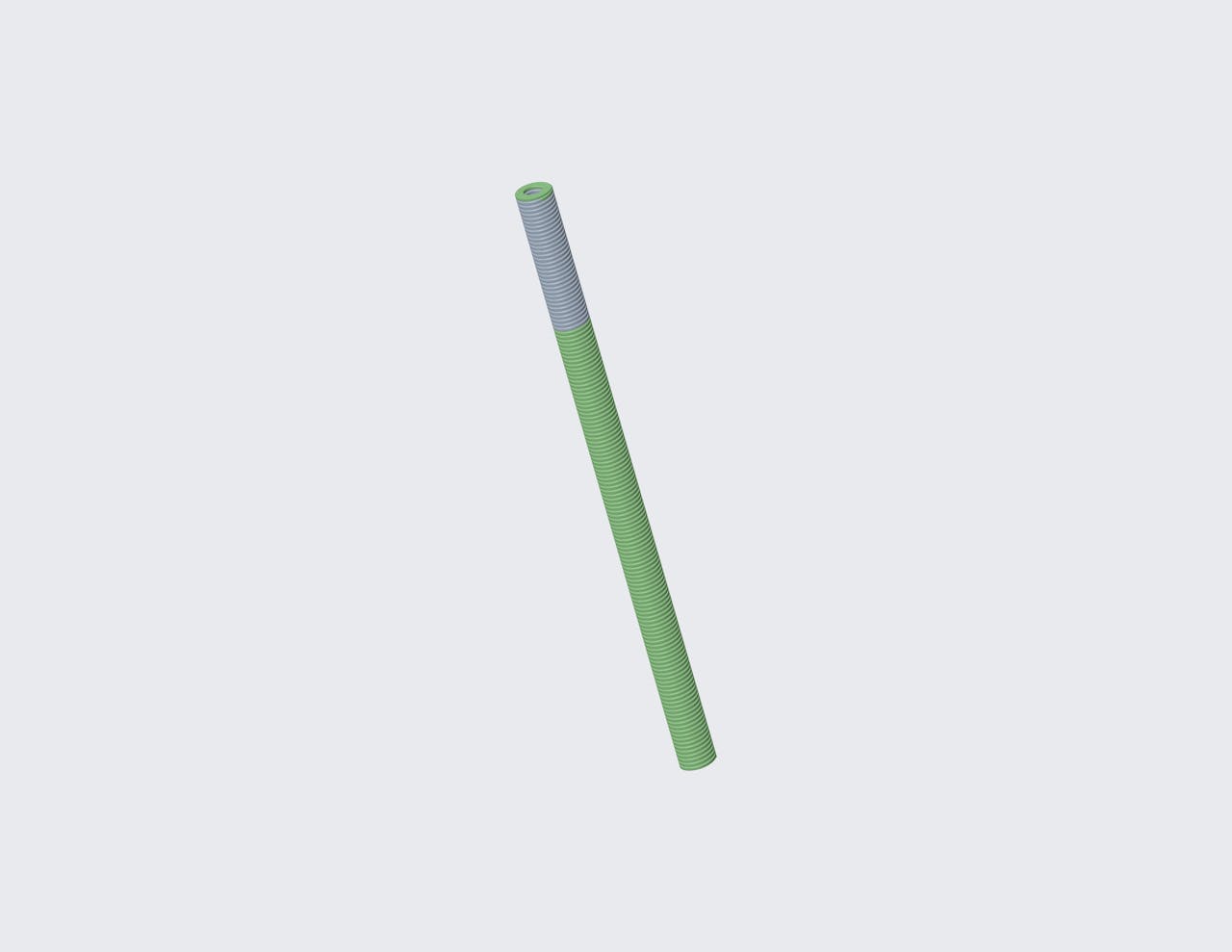

D-306348CS - 305 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 305 Millimeter long and has a 9.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.0433 in
Deflection 2 2.4016 in
Deflection 3 3.0039 in
Display Name D-306348
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 12.0079 in
Hole Size 0.6299 in
Load 1 114.2086 lbf
Load 2 134.2176 lbf
Load 3 167.7158 lbf
Load At Max Deflection 234.0378 lbf
Material Chrome Silicon
Max Deflection 4.185 in
Measurement Units Metric
Rate 55.968 lbs/in
Rod Size 0.3346 in
SKU D-306348CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 51.9 mm
Deflection 2 61 mm
Deflection 3 76.3 mm
Display Name D-306348
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 305 mm
Hole Size 16 mm
Load 1 508 N
Load 2 597 N
Load 3 746 N
Load At Max Deflection 1041 N
Material Chrome Silicon
Max Deflection 106.3 mm
Measurement Units Metric
Rate 9.8 N/mm
Rod Size 8.5 mm
SKU D-306348CS
