Century Spring

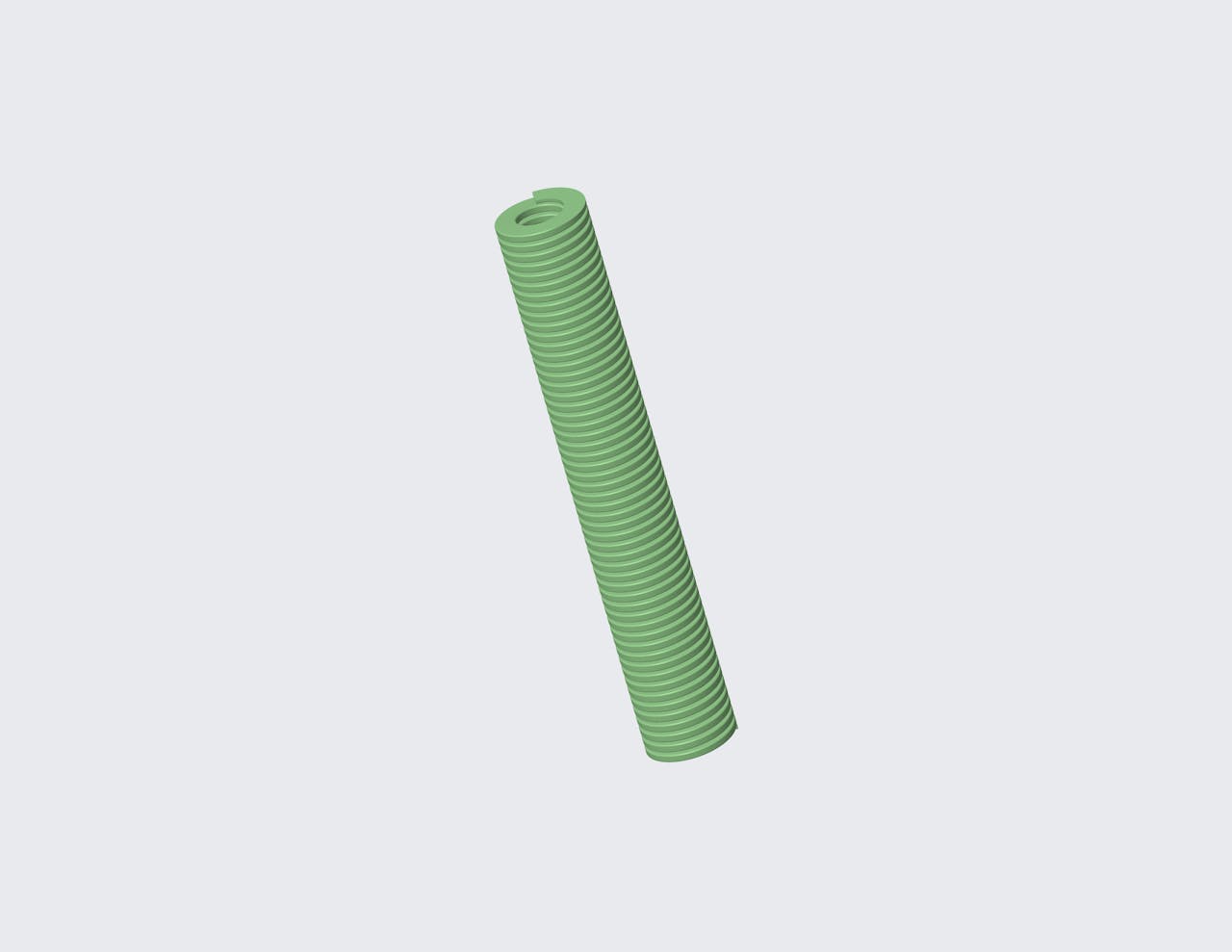

D-306318CS - 114 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 114 Millimeter long and has a 26.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.7638 in
Deflection 2 0.8976 in
Deflection 3 1.122 in
Display Name D-306318
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 4.4882 in
Hole Size 0.6299 in
Load 1 115.1079 lbf
Load 2 135.3417 lbf
Load 3 169.0647 lbf
Load At Max Deflection 264.1637 lbf
Material Chrome Silicon
Max Deflection 1.752 in
Measurement Units Metric
Rate 150.771 lbs/in
Rod Size 0.3346 in
SKU D-306318CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 19.4 mm
Deflection 2 22.8 mm
Deflection 3 28.5 mm
Display Name D-306318
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 114 mm
Hole Size 16 mm
Load 1 512 N
Load 2 602 N
Load 3 752 N
Load At Max Deflection 1175 N
Material Chrome Silicon
Max Deflection 44.5 mm
Measurement Units Metric
Rate 26.4 N/mm
Rod Size 8.5 mm
SKU D-306318CS
