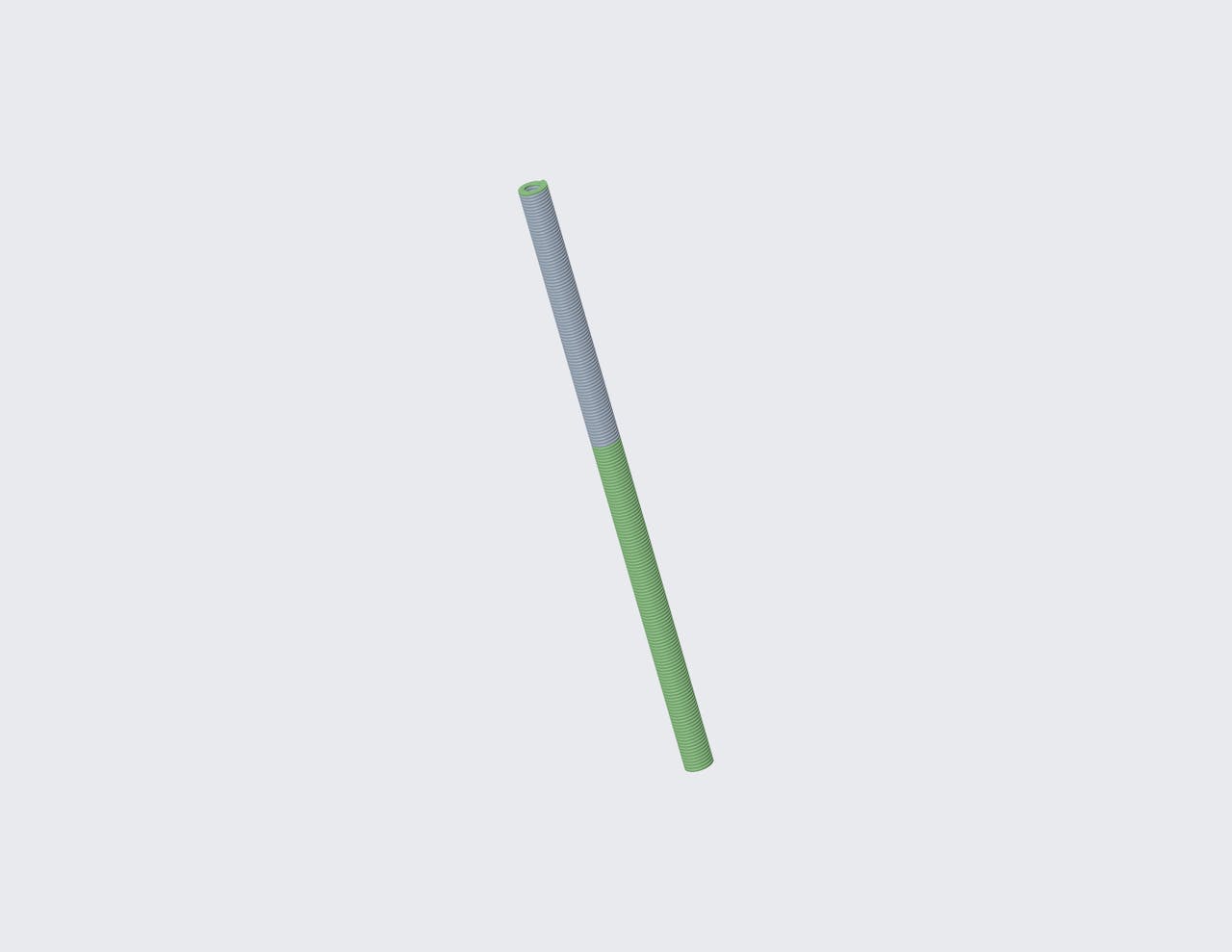

D-306248CS - 305 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 305 Millimeter long and has a 3.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.0433 in
Deflection 2 2.4016 in
Deflection 3 3.0039 in
Display Name D-306248
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 12.0079 in
Hole Size 0.4921 in
Load 1 44.7392 lbf
Load 2 52.6079 lbf
Load 3 65.8723 lbf
Load At Max Deflection 92.8507 lbf
Material Chrome Silicon
Max Deflection 4.2362 in
Measurement Units Metric
Rate 21.7019 lbs/in
Rod Size 0.2756 in
SKU D-306248CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 51.9 mm
Deflection 2 61 mm
Deflection 3 76.3 mm
Display Name D-306248
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 305 mm
Hole Size 12.5 mm
Load 1 199 N
Load 2 234 N
Load 3 293 N
Load At Max Deflection 413 N
Material Chrome Silicon
Max Deflection 107.6 mm
Measurement Units Metric
Rate 3.8 N/mm
Rod Size 7 mm
SKU D-306248CS
