Century Spring

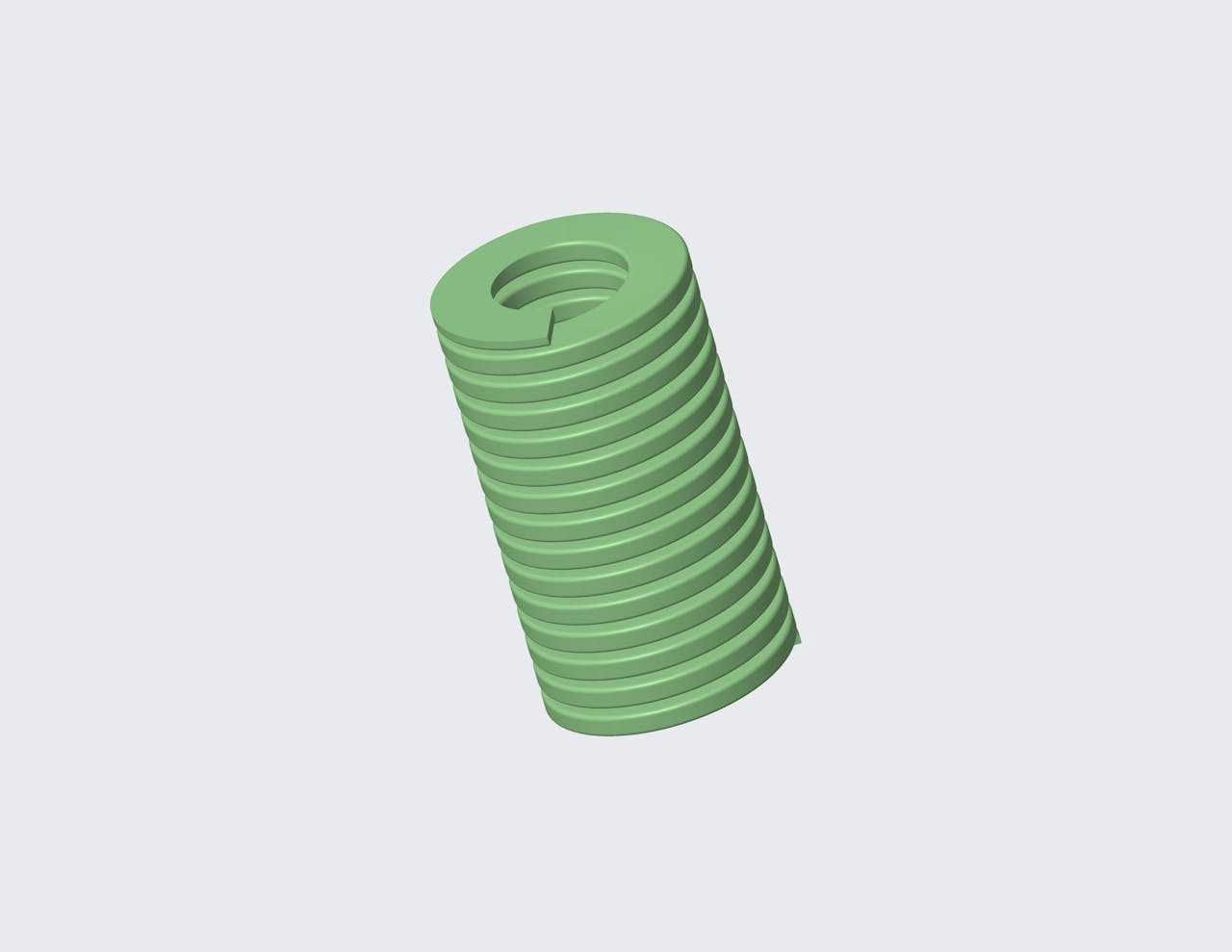

D-305712CS - 76 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 76 Millimeter long and has a 233.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5984 in
Deflection 2 0.748 in
Deflection 3 0.8976 in
Display Name D-305712
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 2.9921 in
Hole Size 1.5748 in
Load 1 798.3363 lbf
Load 2 997.9766 lbf
Load 3 1197.3921 lbf
Load At Max Deflection 1334.0827 lbf
Material Chrome Silicon
Max Deflection 1 in
Measurement Units Metric
Rate 1334.0948 lbs/in
Rod Size 0.7874 in
SKU D-305712CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 15.2 mm
Deflection 2 19 mm
Deflection 3 22.8 mm
Display Name D-305712
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 76 mm
Hole Size 40 mm
Load 1 3551 N
Load 2 4439 N
Load 3 5326 N
Load At Max Deflection 5934 N
Material Chrome Silicon
Max Deflection 25.4 mm
Measurement Units Metric
Rate 233.6 N/mm
Rod Size 20 mm
SKU D-305712CS
