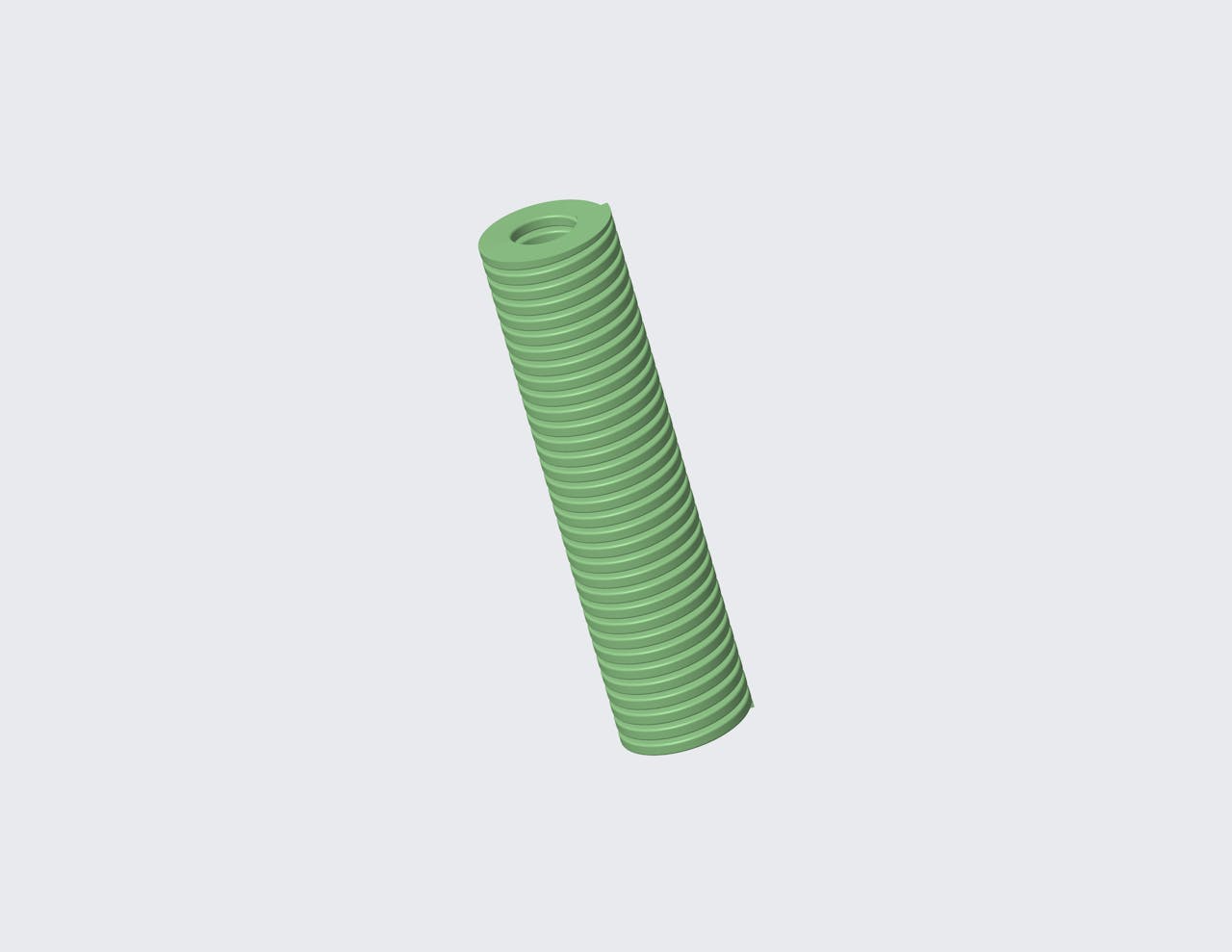

D-305624CS - 152 Millimeter Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 152 Millimeter long and has a 81.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.1969 in
Deflection 2 1.4961 in
Deflection 3 1.7953 in
Display Name D-305624
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 5.9843 in
Hole Size 1.2598 in
Load 1 558.4532 lbf
Load 2 698.0665 lbf
Load 3 837.6799 lbf
Load At Max Deflection 957.2842 lbf
Material Chrome Silicon
Max Deflection 2.0512 in
Measurement Units Metric
Rate 466.5905 lbs/in
Rod Size 0.6299 in
SKU D-305624CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.4 mm
Deflection 2 38 mm
Deflection 3 45.6 mm
Display Name D-305624
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 152 mm
Hole Size 32 mm
Load 1 2484 N
Load 2 3105 N
Load 3 3726 N
Load At Max Deflection 4258 N
Material Chrome Silicon
Max Deflection 52.1 mm
Measurement Units Metric
Rate 81.7 N/mm
Rod Size 16 mm
SKU D-305624CS
