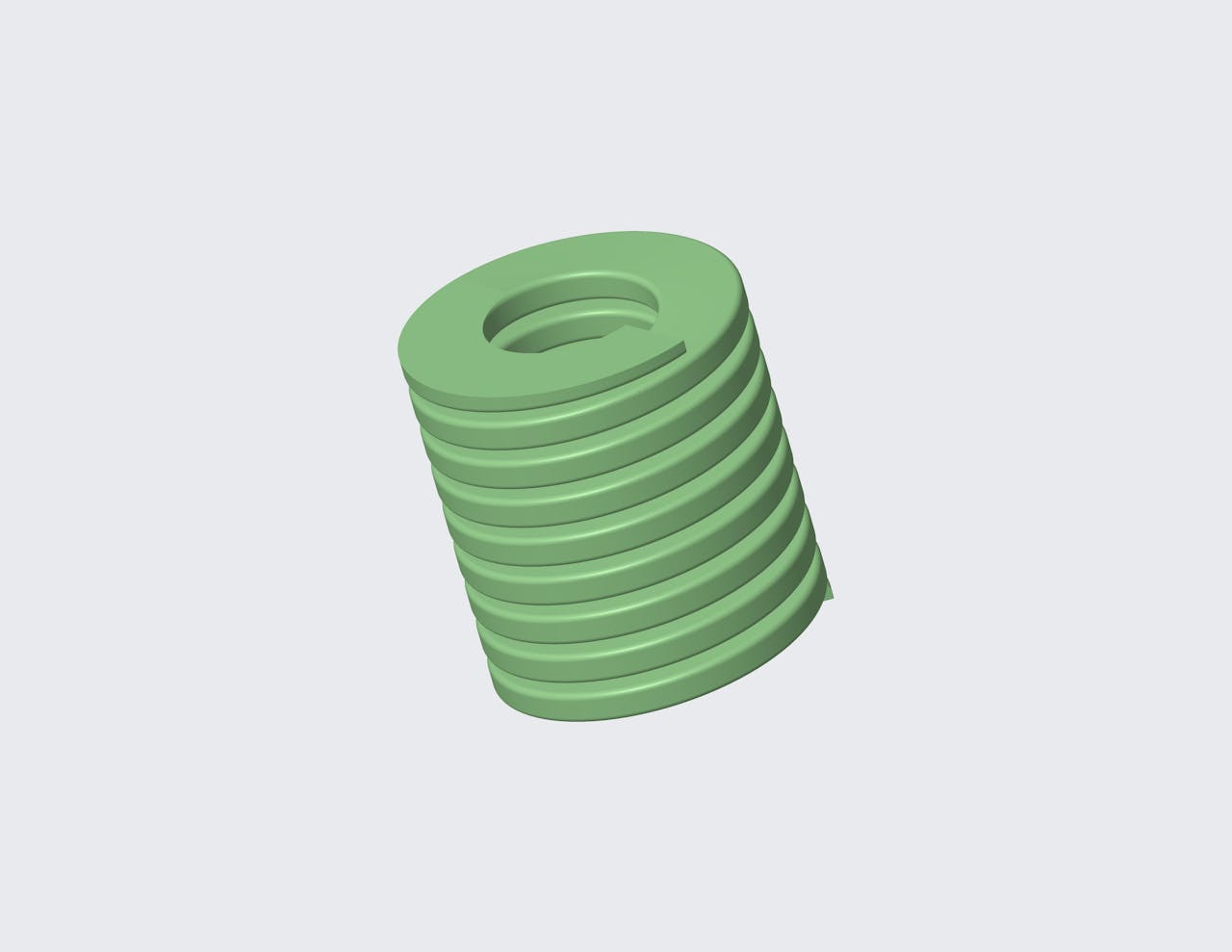

D-305404CS - 25 Millimeter Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 25 Millimeter long and has a 219.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.1969 in
Deflection 2 0.248 in
Deflection 3 0.2953 in
Display Name D-305404
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 0.9843 in
Hole Size 0.7874 in
Load 1 246.4029 lbf
Load 2 308.0036 lbf
Load 3 369.6043 lbf
Load At Max Deflection 389.1637 lbf
Material Chrome Silicon
Max Deflection 0.311 in
Measurement Units Metric
Rate 1251.8561 lbs/in
Rod Size 0.3937 in
SKU D-305404CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 5 mm
Deflection 2 6.3 mm
Deflection 3 7.5 mm
Display Name D-305404
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 25 mm
Hole Size 20 mm
Load 1 1096 N
Load 2 1370 N
Load 3 1644 N
Load At Max Deflection 1731 N
Material Chrome Silicon
Max Deflection 7.9 mm
Measurement Units Metric
Rate 219.2 N/mm
Rod Size 10 mm
SKU D-305404CS
