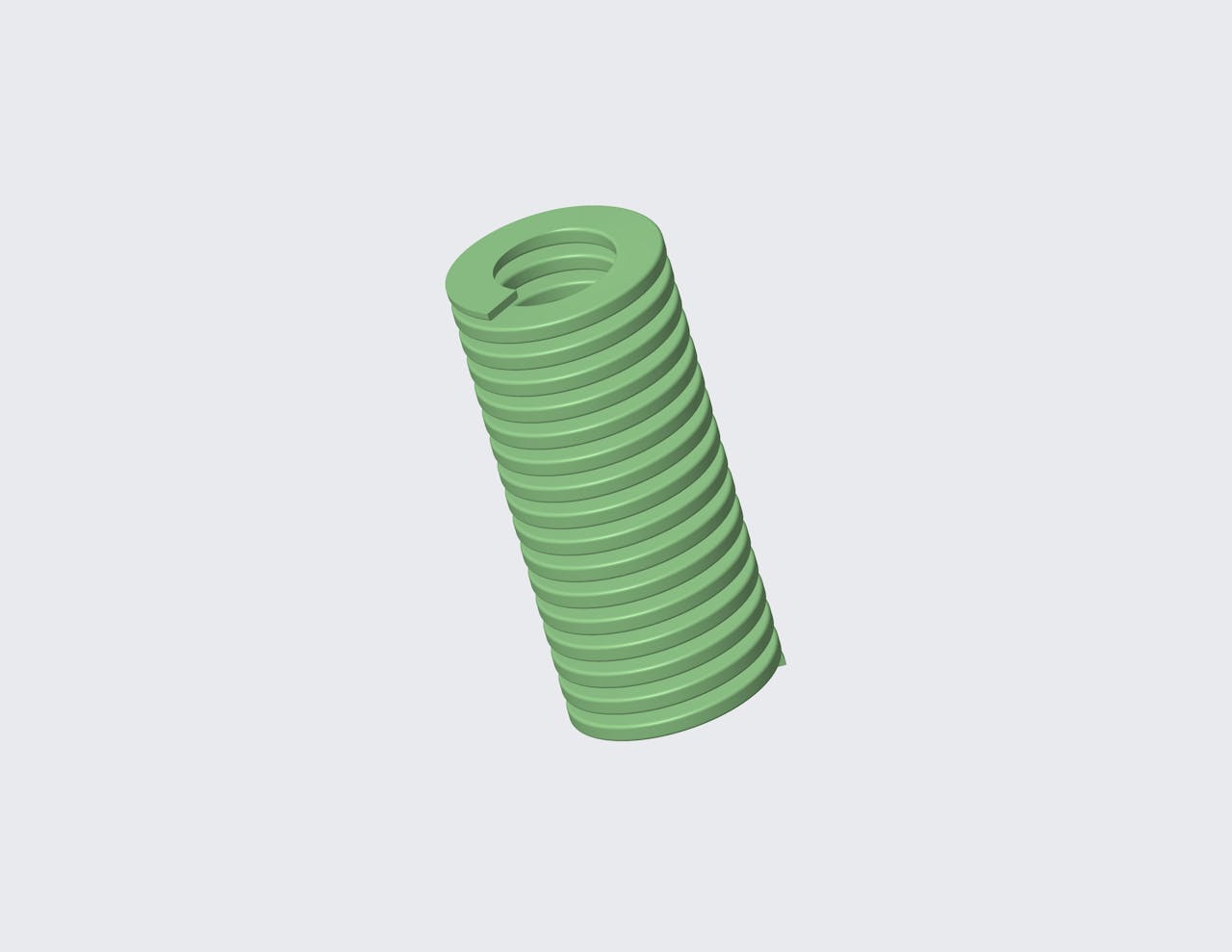

D-305205CS - 32 Millimeter Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 32 Millimeter long and has a 31.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.252 in
Deflection 2 0.315 in
Deflection 3 0.378 in
Display Name D-305205
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 1.2598 in
Hole Size 0.4921 in
Load 1 45.6385 lbf
Load 2 57.1043 lbf
Load 3 68.5701 lbf
Load At Max Deflection 102.2932 lbf
Material Chrome Silicon
Max Deflection 0.563 in
Measurement Units Metric
Rate 181.6105 lbs/in
Rod Size 0.2756 in
SKU D-305205CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 6.4 mm
Deflection 2 8 mm
Deflection 3 9.6 mm
Display Name D-305205
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 32 mm
Hole Size 12.5 mm
Load 1 203 N
Load 2 254 N
Load 3 305 N
Load At Max Deflection 455 N
Material Chrome Silicon
Max Deflection 14.3 mm
Measurement Units Metric
Rate 31.8 N/mm
Rod Size 7 mm
SKU D-305205CS
