Century Spring

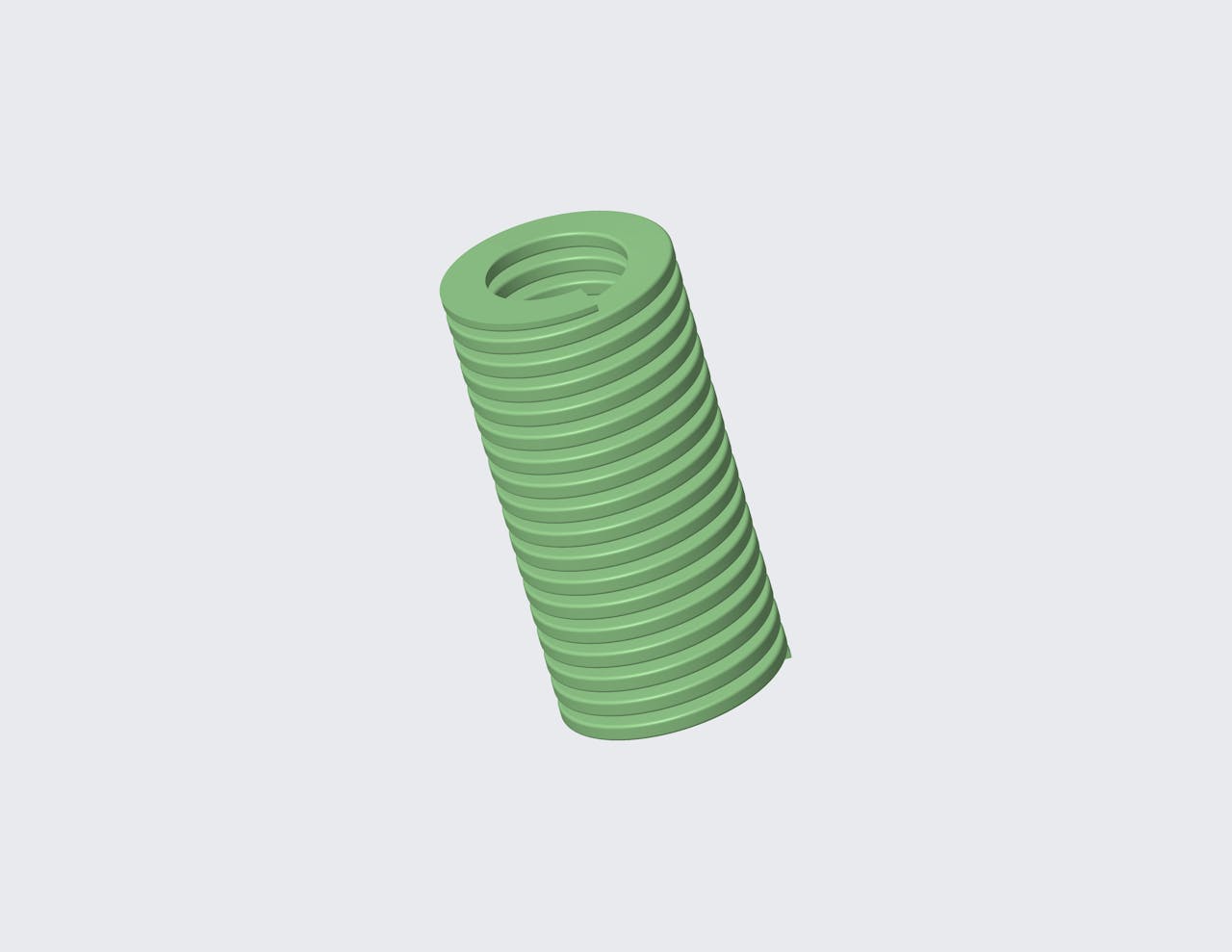

D-304924CS - 152 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 152 Millimeter long and has a 132.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.4961 in
Deflection 2 1.7953 in
Deflection 3 2.3937 in
Display Name D-304924
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 5.9843 in
Hole Size 2.4803 in
Load 1 1130.6205 lbf
Load 2 1356.7896 lbf
Load 3 1809.1277 lbf
Load At Max Deflection 1975.7194 lbf
Material Chrome Silicon
Max Deflection 2.6142 in
Measurement Units Metric
Rate 756.1393 lbs/in
Rod Size 1.4961 in
SKU D-304924CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 38 mm
Deflection 2 45.6 mm
Deflection 3 60.8 mm
Display Name D-304924
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 152 mm
Hole Size 63 mm
Load 1 5029 N
Load 2 6035 N
Load 3 8047 N
Load At Max Deflection 8788 N
Material Chrome Silicon
Max Deflection 66.4 mm
Measurement Units Metric
Rate 132.4 N/mm
Rod Size 38 mm
SKU D-304924CS
