Century Spring

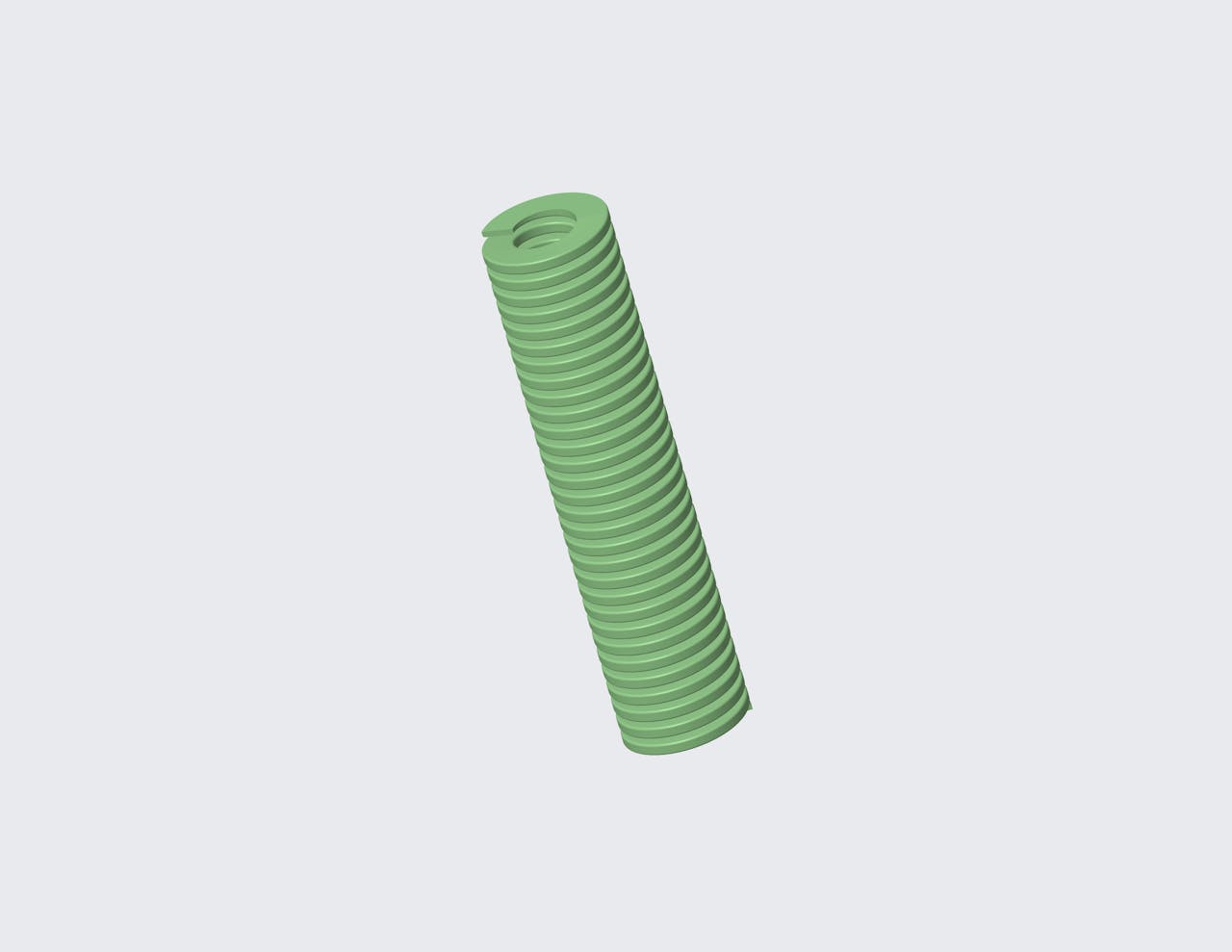

D-304840CS - 254 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 254 Millimeter long and has a 46 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.5 in
Deflection 2 3 in
Deflection 3 4 in
Display Name D-304840
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 10 in
Hole Size 1.9685 in
Load 1 656.25 lbf
Load 2 787.545 lbf
Load 3 1050.1349 lbf
Load At Max Deflection 1129.7212 lbf
Material Chrome Silicon
Max Deflection 4.3031 in
Measurement Units Metric
Rate 262.707 lbs/in
Rod Size 0.9843 in
SKU D-304840CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 63.5 mm
Deflection 2 76.2 mm
Deflection 3 101.6 mm
Display Name D-304840
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 254 mm
Hole Size 50 mm
Load 1 2919 N
Load 2 3503 N
Load 3 4671 N
Load At Max Deflection 5025 N
Material Chrome Silicon
Max Deflection 109.3 mm
Measurement Units Metric
Rate 46 N/mm
Rod Size 25 mm
SKU D-304840CS
