Century Spring

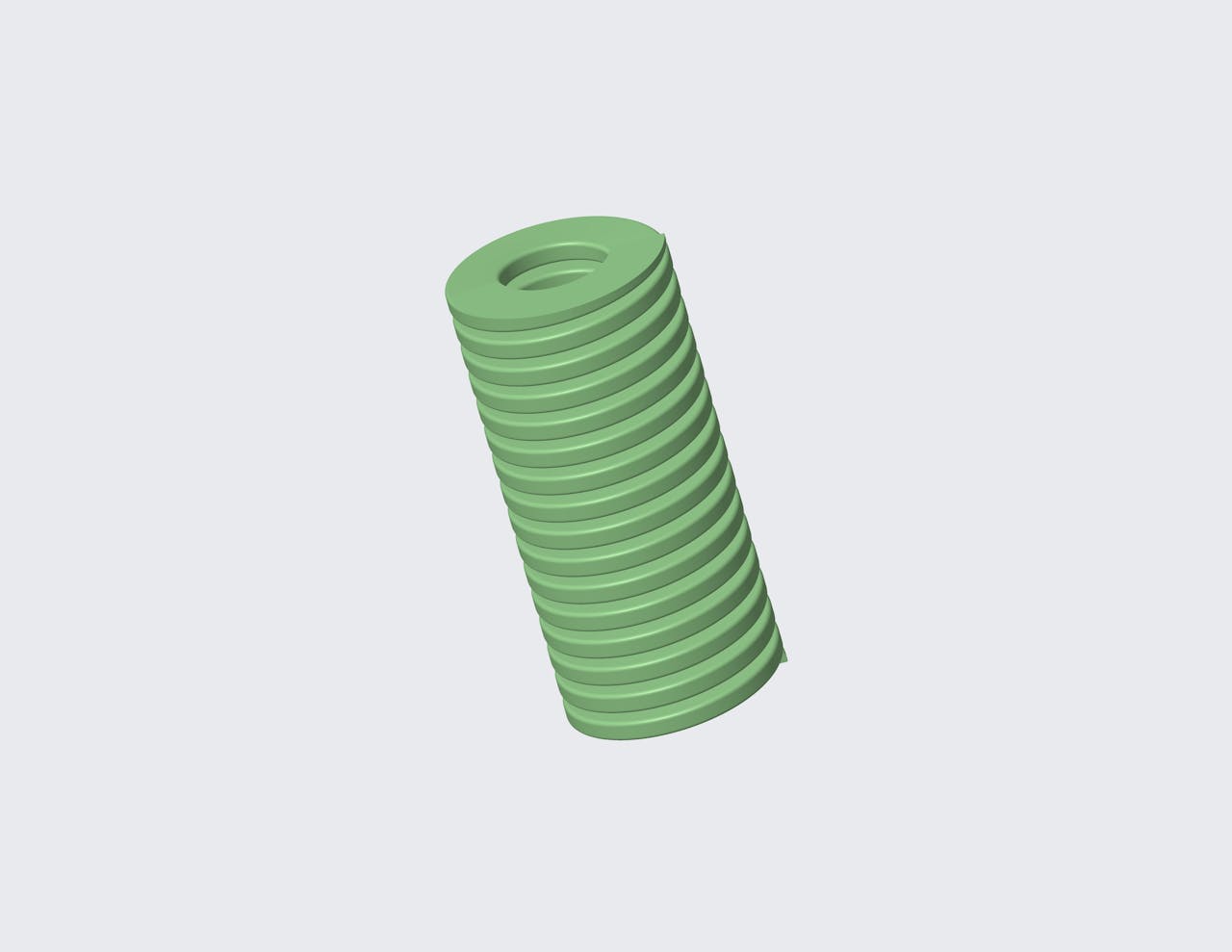

D-304716CS - 102 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 102 Millimeter long and has a 75.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0039 in
Deflection 2 1.2047 in
Deflection 3 1.6063 in
Display Name D-304716
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 4.0157 in
Hole Size 1.5748 in
Load 1 433.0036 lbf
Load 2 519.7842 lbf
Load 3 692.8957 lbf
Load At Max Deflection 689.5234 lbf
Material Chrome Silicon
Max Deflection 1.5984 in
Measurement Units Metric
Rate 431.1822 lbs/in
Rod Size 0.7874 in
SKU D-304716CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.5 mm
Deflection 2 30.6 mm
Deflection 3 40.8 mm
Display Name D-304716
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 102 mm
Hole Size 40 mm
Load 1 1926 N
Load 2 2312 N
Load 3 3082 N
Load At Max Deflection 3067 N
Material Chrome Silicon
Max Deflection 40.6 mm
Measurement Units Metric
Rate 75.5 N/mm
Rod Size 20 mm
SKU D-304716CS
