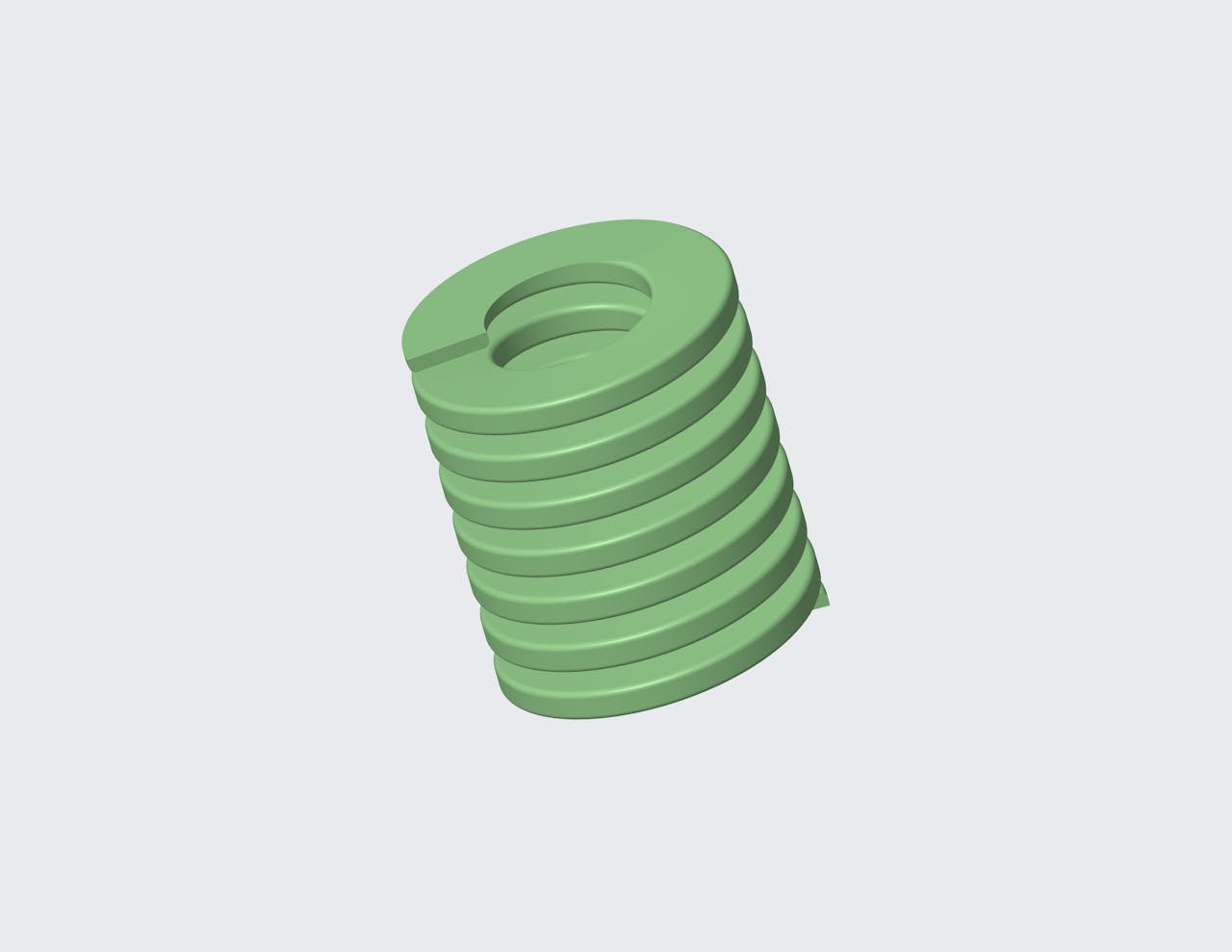

D-304607CS - 44 Millimeter Medium Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 44 Millimeter long and has a 136.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.4331 in
Deflection 2 0.5197 in
Deflection 3 0.6929 in
Display Name D-304607
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 1.7323 in
Hole Size 1.2598 in
Load 1 337.2302 lbf
Load 2 404.6763 lbf
Load 3 539.5683 lbf
Load At Max Deflection 603.8669 lbf
Material Chrome Silicon
Max Deflection 0.7756 in
Measurement Units Metric
Rate 778.9834 lbs/in
Rod Size 0.6299 in
SKU D-304607CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 11 mm
Deflection 2 13.2 mm
Deflection 3 17.6 mm
Display Name D-304607
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 44 mm
Hole Size 32 mm
Load 1 1500 N
Load 2 1800 N
Load 3 2400 N
Load At Max Deflection 2686 N
Material Chrome Silicon
Max Deflection 19.7 mm
Measurement Units Metric
Rate 136.4 N/mm
Rod Size 16 mm
SKU D-304607CS
