Century Spring

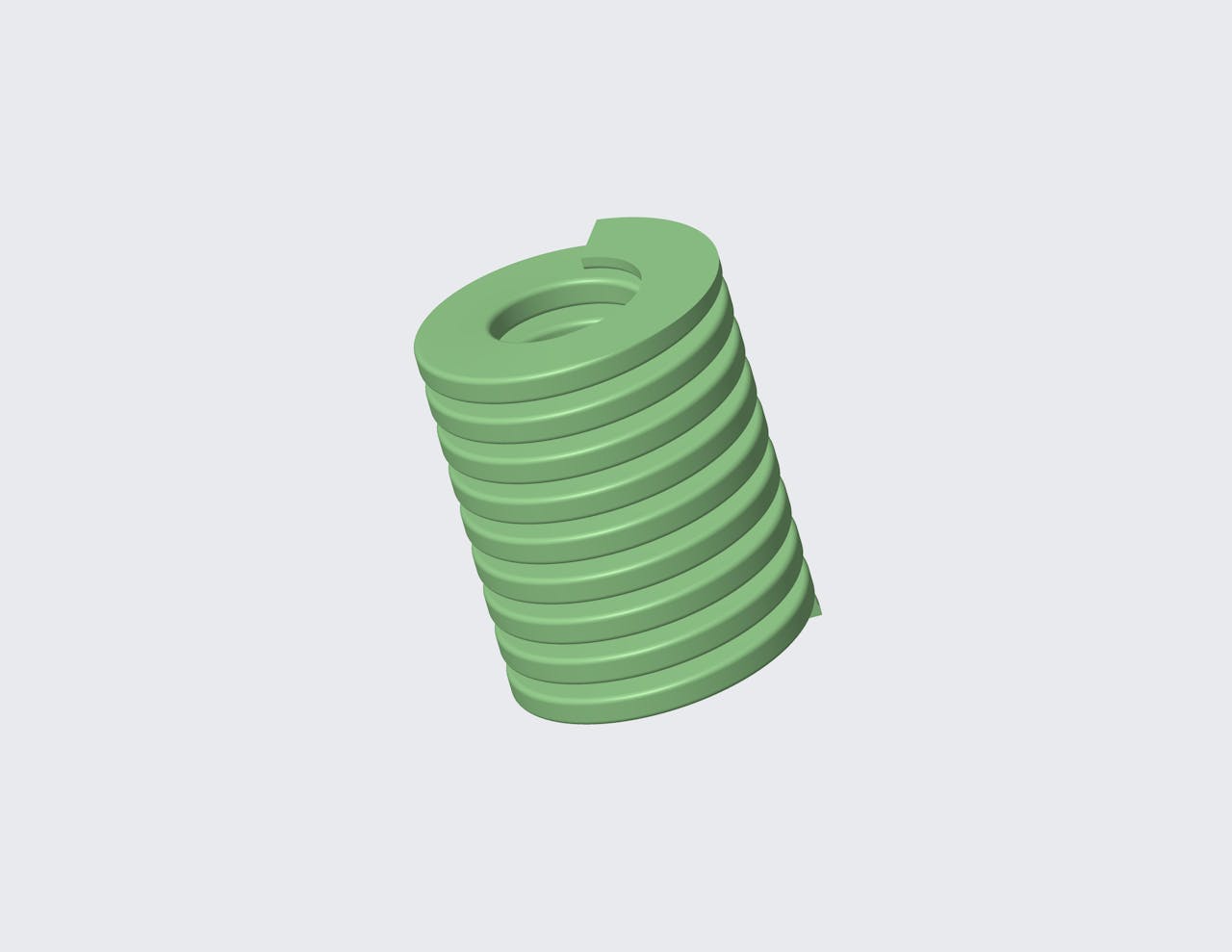

D-304506CS - 38 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 38 Millimeter long and has a 104.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.374 in
Deflection 2 0.4488 in
Deflection 3 0.5984 in
Display Name D-304506
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 1.4961 in
Hole Size 0.9843 in
Load 1 222.5719 lbf
Load 2 267.0863 lbf
Load 3 356.1151 lbf
Load At Max Deflection 360.8363 lbf
Material Chrome Silicon
Max Deflection 0.6063 in
Measurement Units Metric
Rate 595.0885 lbs/in
Rod Size 0.4921 in
SKU D-304506CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 9.5 mm
Deflection 2 11.4 mm
Deflection 3 15.2 mm
Display Name D-304506
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 38 mm
Hole Size 25 mm
Load 1 990 N
Load 2 1188 N
Load 3 1584 N
Load At Max Deflection 1605 N
Material Chrome Silicon
Max Deflection 15.4 mm
Measurement Units Metric
Rate 104.2 N/mm
Rod Size 12.5 mm
SKU D-304506CS
