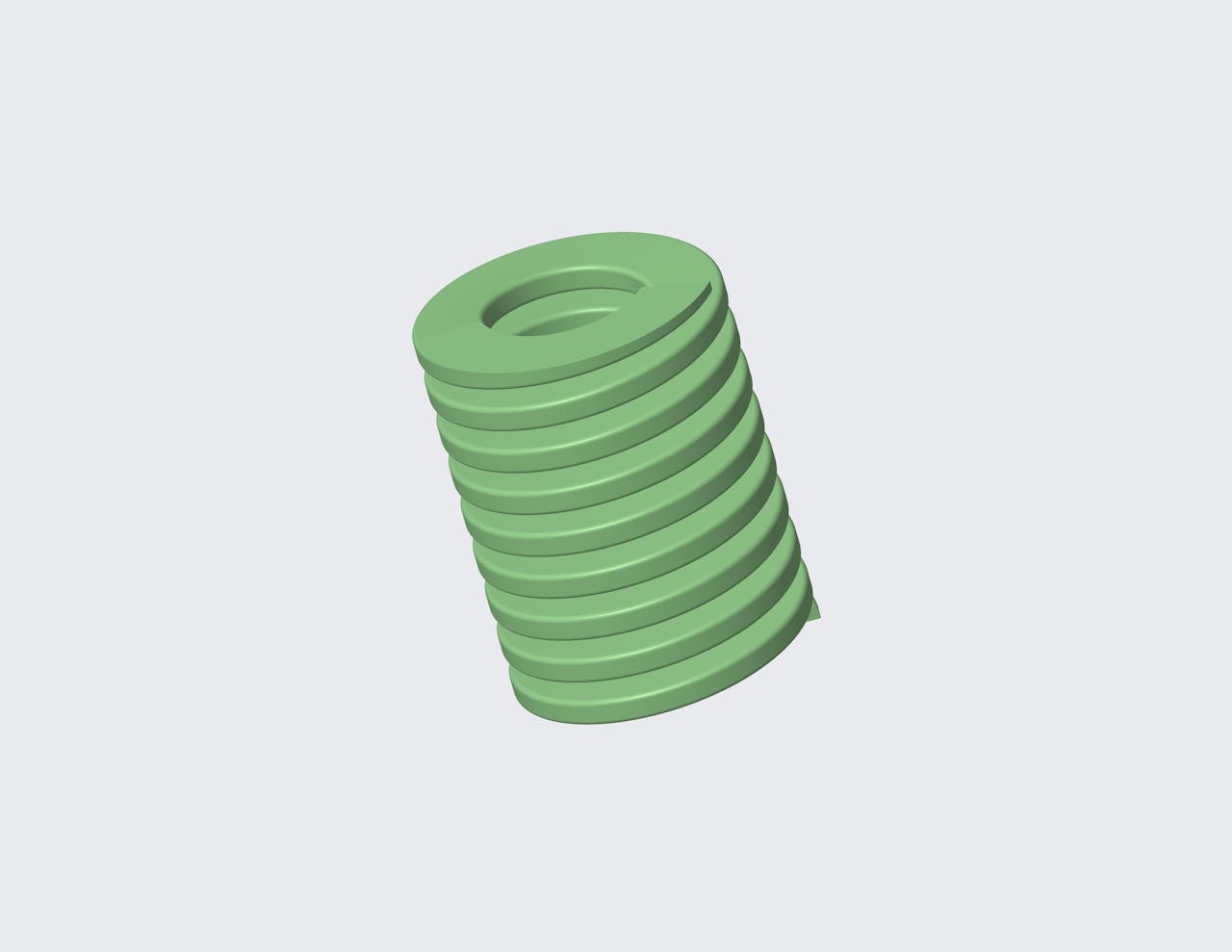

D-304304CS - 25 Millimeter Medium Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 25 Millimeter long and has a 55.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.248 in
Deflection 2 0.2953 in
Deflection 3 0.3937 in
Display Name D-304304
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 0.9843 in
Hole Size 0.6299 in
Load 1 78.2374 lbf
Load 2 93.9748 lbf
Load 3 125.2248 lbf
Load At Max Deflection 145.2338 lbf
Material Chrome Silicon
Max Deflection 0.4567 in
Measurement Units Metric
Rate 318.1039 lbs/in
Rod Size 0.3346 in
SKU D-304304CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 6.3 mm
Deflection 2 7.5 mm
Deflection 3 10 mm
Display Name D-304304
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 25 mm
Hole Size 16 mm
Load 1 348 N
Load 2 418 N
Load 3 557 N
Load At Max Deflection 646 N
Material Chrome Silicon
Max Deflection 11.6 mm
Measurement Units Metric
Rate 55.7 N/mm
Rod Size 8.5 mm
SKU D-304304CS
