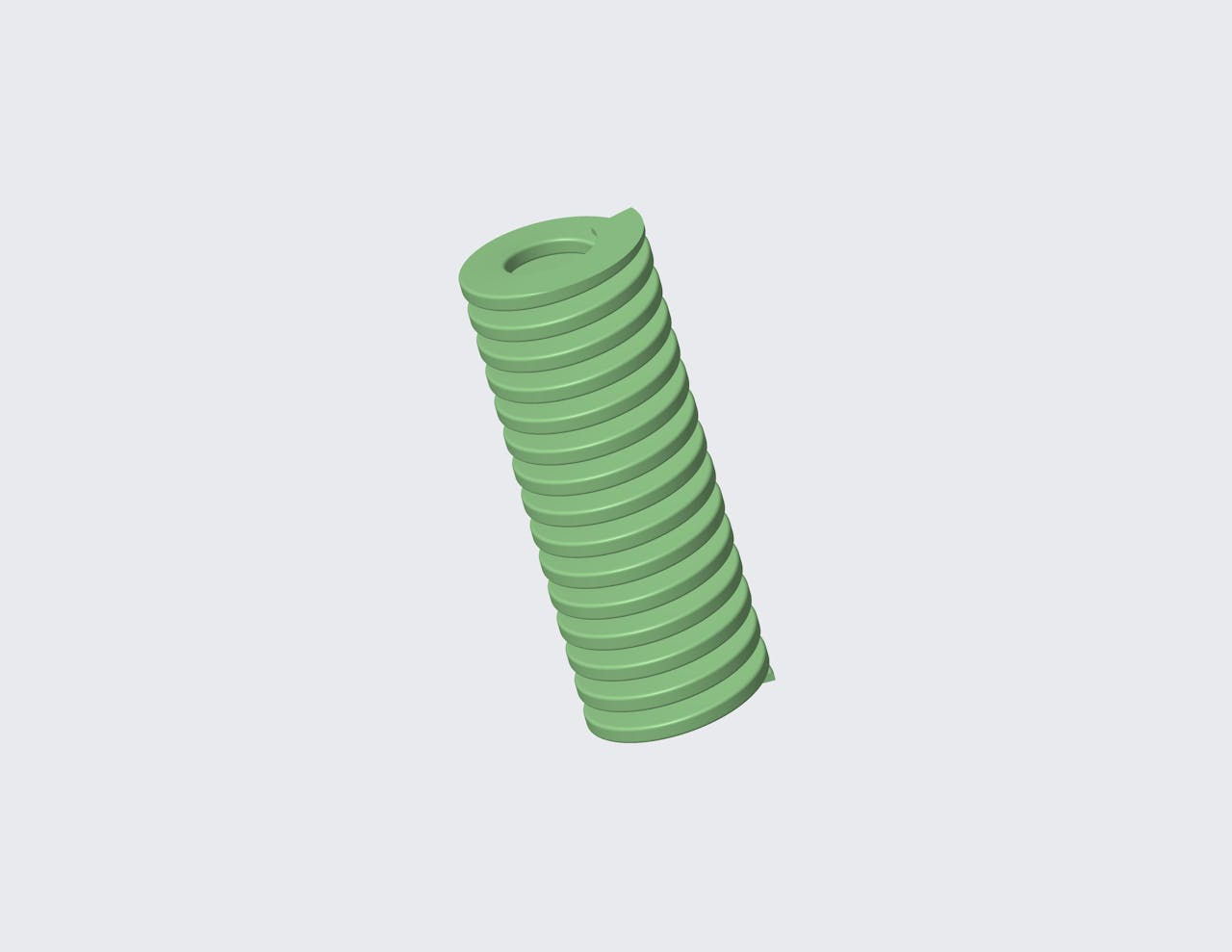

D-304105CS - 32 Millimeter Medium Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 32 Millimeter long and has a 13.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.315 in
Deflection 2 0.378 in
Deflection 3 0.5039 in
Display Name D-304105
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 1.2598 in
Hole Size 0.3937 in
Load 1 24.2806 lbf
Load 2 29.2266 lbf
Load 3 38.8939 lbf
Load At Max Deflection 52.3831 lbf
Material Chrome Silicon
Max Deflection 0.6772 in
Measurement Units Metric
Rate 77.0988 lbs/in
Rod Size 0.1969 in
SKU D-304105CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 8 mm
Deflection 2 9.6 mm
Deflection 3 12.8 mm
Display Name D-304105
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 32 mm
Hole Size 10 mm
Load 1 108 N
Load 2 130 N
Load 3 173 N
Load At Max Deflection 233 N
Material Chrome Silicon
Max Deflection 17.2 mm
Measurement Units Metric
Rate 13.5 N/mm
Rod Size 5 mm
SKU D-304105CS
