Century Spring

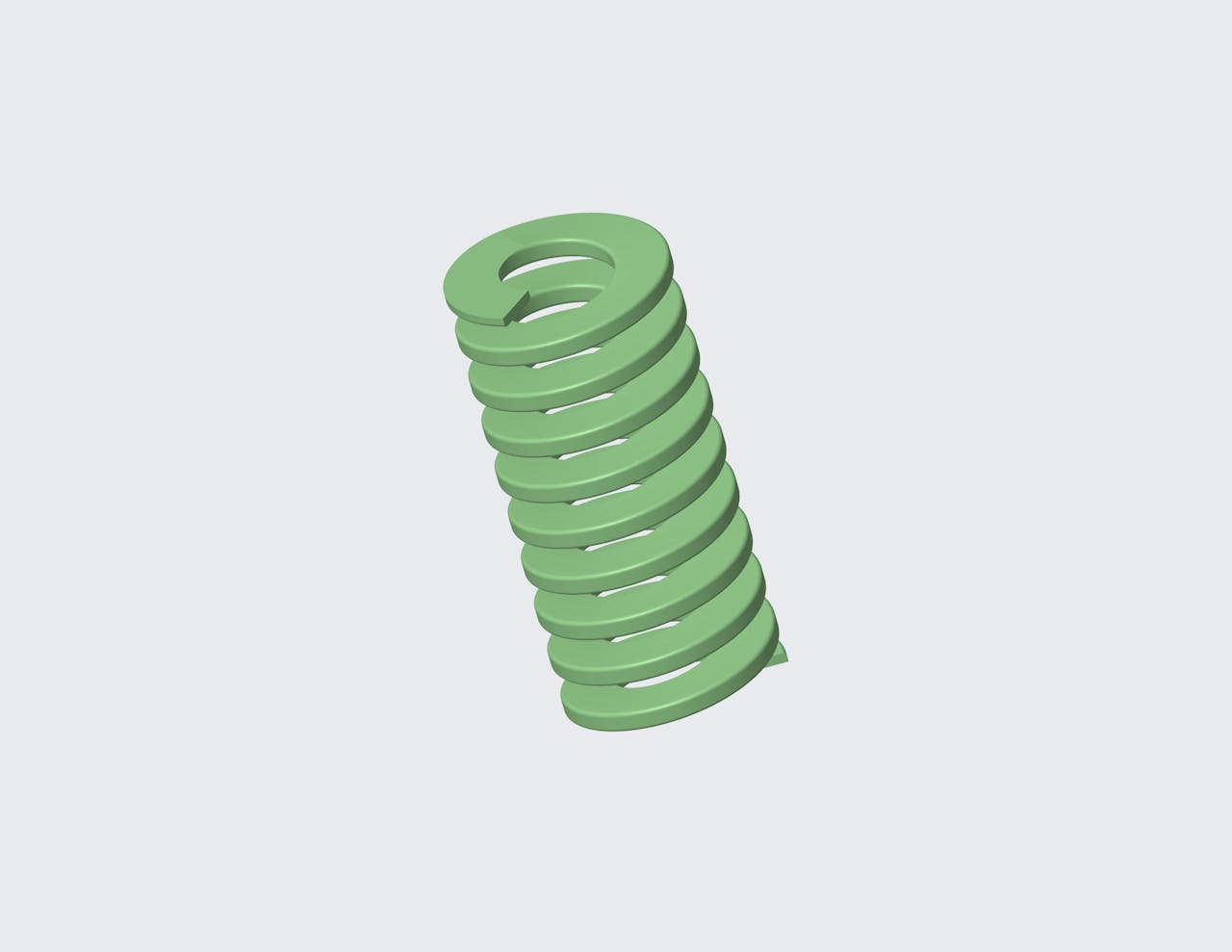

D-303820CS - 127 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 127 Millimeter long and has a 70.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.252 in
Deflection 2 1.5 in
Deflection 3 2 in
Display Name D-303820
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 5 in
Hole Size 1.9685 in
Load 1 502.473 lbf
Load 2 602.7428 lbf
Load 3 803.732 lbf
Load At Max Deflection 1224.5953 lbf
Material Chrome Silicon
Max Deflection 3.0472 in
Measurement Units Metric
Rate 402.056 lbs/in
Rod Size 0.9843 in
SKU D-303820CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 31.8 mm
Deflection 2 38.1 mm
Deflection 3 50.8 mm
Display Name D-303820
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 127 mm
Hole Size 50 mm
Load 1 2235 N
Load 2 2681 N
Load 3 3575 N
Load At Max Deflection 5447 N
Material Chrome Silicon
Max Deflection 77.4 mm
Measurement Units Metric
Rate 70.4 N/mm
Rod Size 25 mm
SKU D-303820CS
