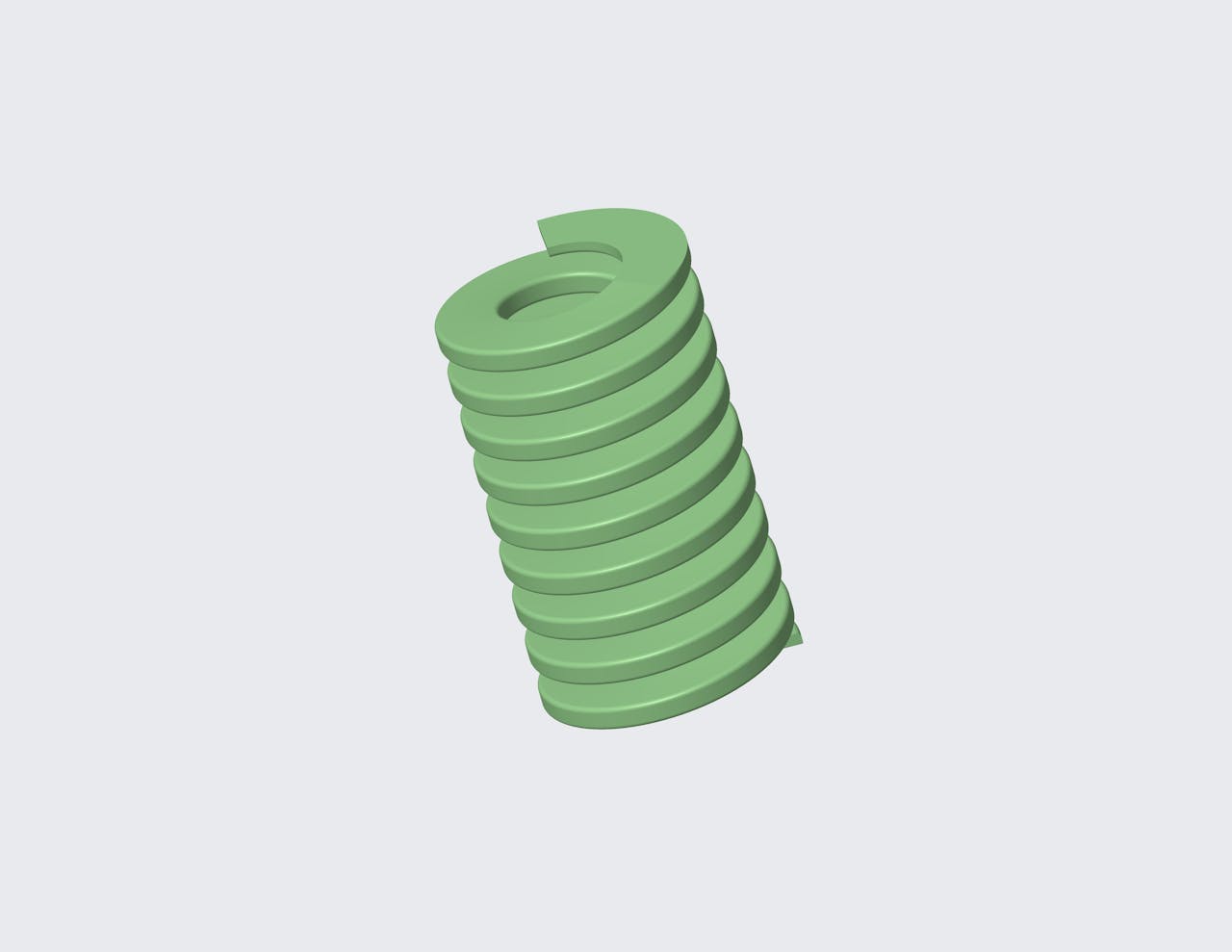

D-303508CS - 51 Millimeter Light Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 51 Millimeter long and has a 45.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6024 in
Deflection 3 0.8031 in
Display Name D-303508
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 2.0079 in
Hole Size 0.9843 in
Load 1 131.295 lbf
Load 2 157.5989 lbf
Load 3 210.2068 lbf
Load At Max Deflection 283.2734 lbf
Material Chrome Silicon
Max Deflection 1.0827 in
Measurement Units Metric
Rate 261.5648 lbs/in
Rod Size 0.4921 in
SKU D-303508CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 15.3 mm
Deflection 3 20.4 mm
Display Name D-303508
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 51 mm
Hole Size 25 mm
Load 1 584 N
Load 2 701 N
Load 3 935 N
Load At Max Deflection 1260 N
Material Chrome Silicon
Max Deflection 27.5 mm
Measurement Units Metric
Rate 45.8 N/mm
Rod Size 12.5 mm
SKU D-303508CS
