Century Spring

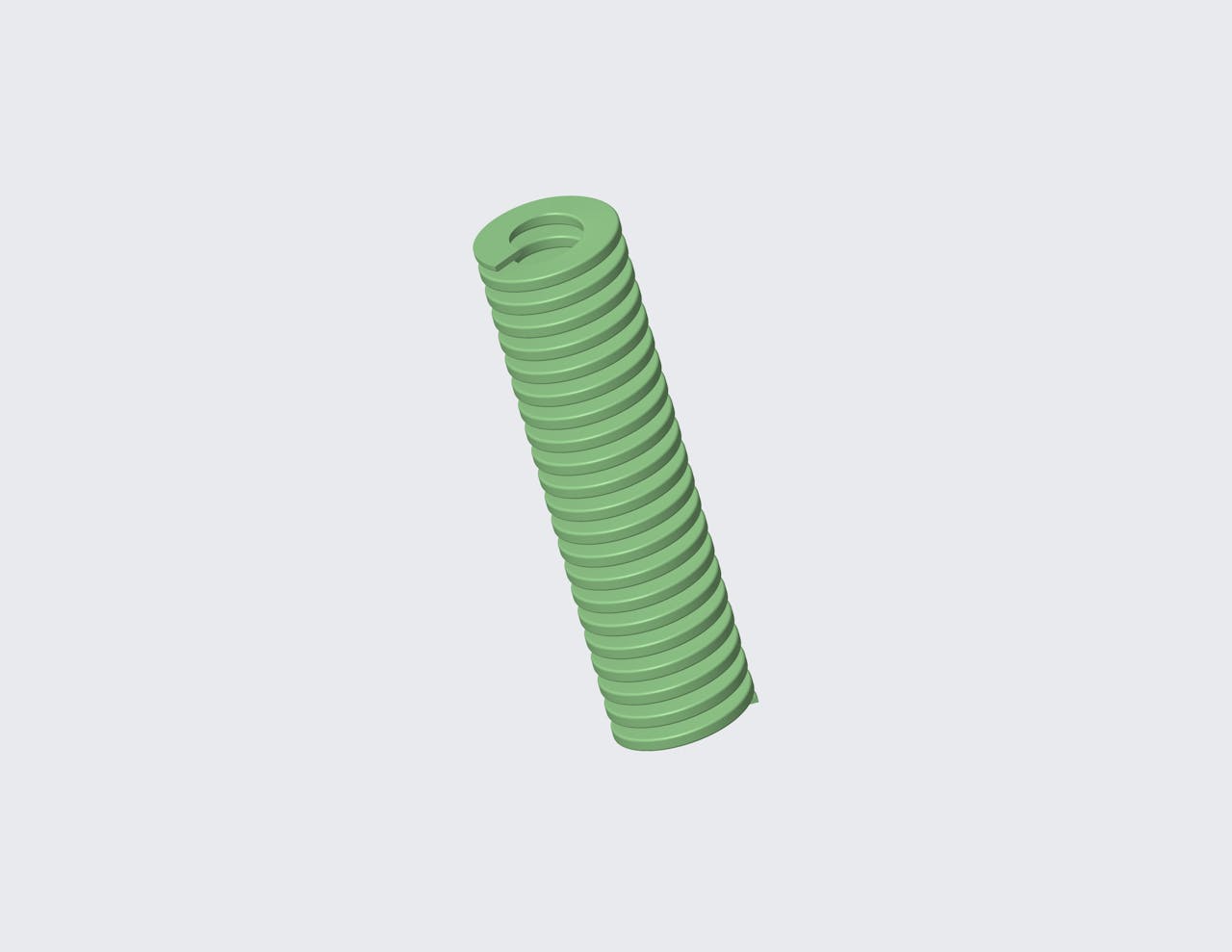

D-303414CS - 89 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 89 Millimeter long and has a 13.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.878 in
Deflection 2 1.0512 in
Deflection 3 1.4016 in
Display Name D-303414
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 3.5039 in
Hole Size 0.7874 in
Load 1 65.6475 lbf
Load 2 78.6871 lbf
Load 3 104.991 lbf
Load At Max Deflection 139.1637 lbf
Material Chrome Silicon
Max Deflection 1.8583 in
Measurement Units Metric
Rate 74.8144 lbs/in
Rod Size 0.3937 in
SKU D-303414CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 22.3 mm
Deflection 2 26.7 mm
Deflection 3 35.6 mm
Display Name D-303414
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 89 mm
Hole Size 20 mm
Load 1 292 N
Load 2 350 N
Load 3 467 N
Load At Max Deflection 619 N
Material Chrome Silicon
Max Deflection 47.2 mm
Measurement Units Metric
Rate 13.1 N/mm
Rod Size 10 mm
SKU D-303414CS
