Century Spring

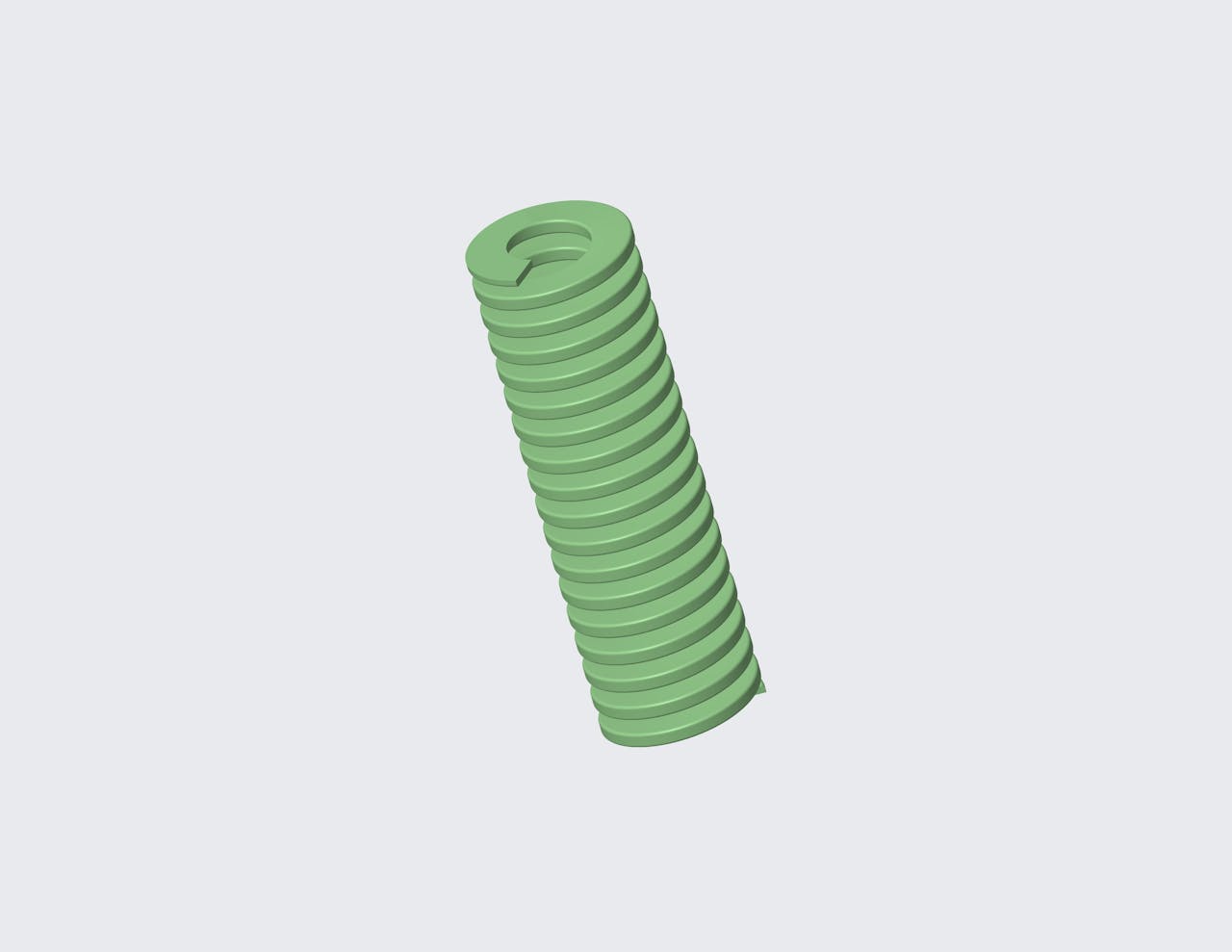

D-303412CS - 76 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 76 Millimeter long and has a 16.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.748 in
Deflection 2 0.8976 in
Deflection 3 1.1969 in
Display Name D-303412
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 2.9921 in
Hole Size 0.7874 in
Load 1 68.795 lbf
Load 2 82.509 lbf
Load 3 109.9371 lbf
Load At Max Deflection 149.955 lbf
Material Chrome Silicon
Max Deflection 1.6339 in
Measurement Units Metric
Rate 91.9475 lbs/in
Rod Size 0.3937 in
SKU D-303412CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 19 mm
Deflection 2 22.8 mm
Deflection 3 30.4 mm
Display Name D-303412
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 76 mm
Hole Size 20 mm
Load 1 306 N
Load 2 367 N
Load 3 489 N
Load At Max Deflection 667 N
Material Chrome Silicon
Max Deflection 41.5 mm
Measurement Units Metric
Rate 16.1 N/mm
Rod Size 10 mm
SKU D-303412CS
