Century Spring

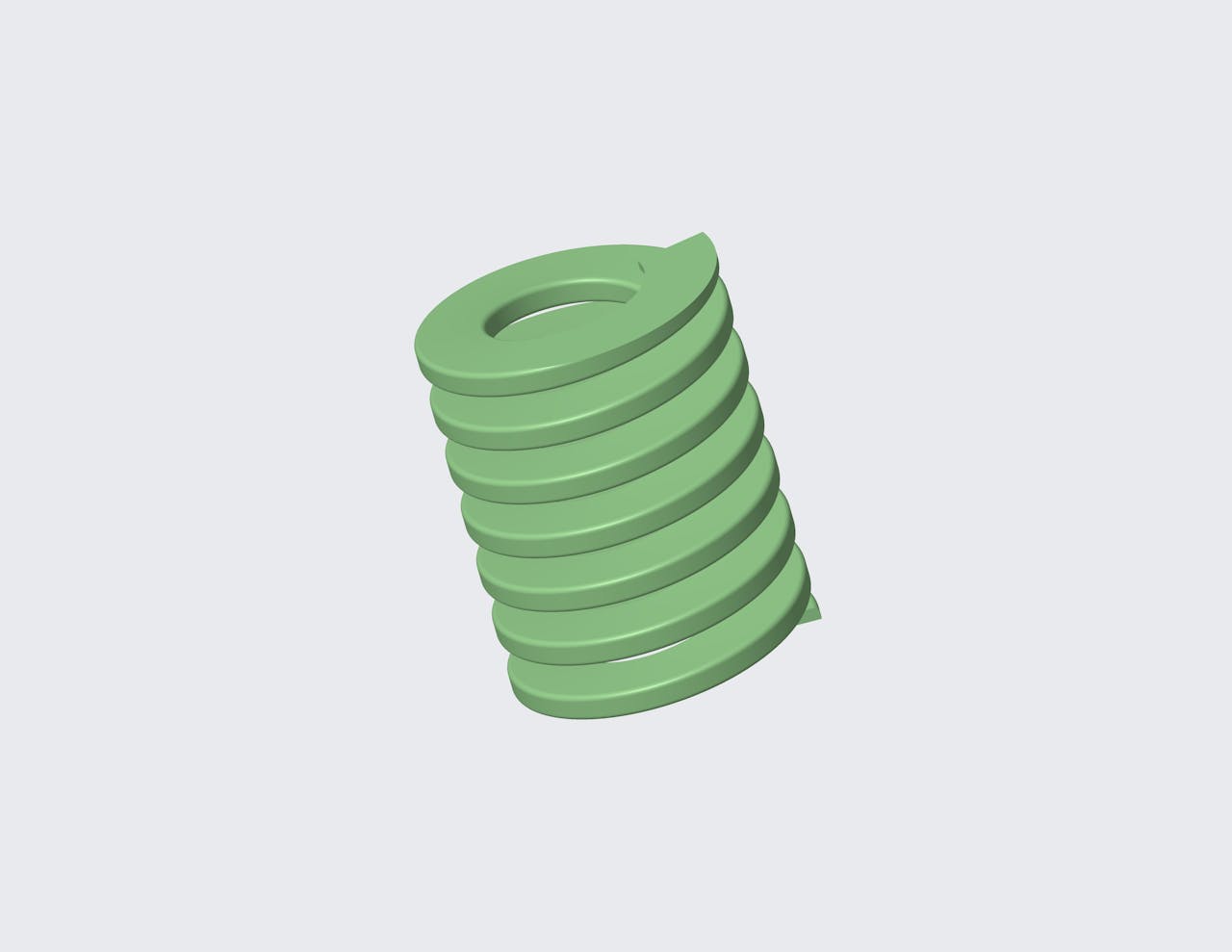

D-303304CS - 25 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 25 Millimeter long and has a 31.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.248 in
Deflection 2 0.2953 in
Deflection 3 0.3937 in
Display Name D-303304
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 0.9843 in
Hole Size 0.6299 in
Load 1 44.5144 lbf
Load 2 53.5072 lbf
Load 3 71.268 lbf
Load At Max Deflection 99.1457 lbf
Material Chrome Silicon
Max Deflection 0.5472 in
Measurement Units Metric
Rate 181.0394 lbs/in
Rod Size 0.3346 in
SKU D-303304CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 6.3 mm
Deflection 2 7.5 mm
Deflection 3 10 mm
Display Name D-303304
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 25 mm
Hole Size 16 mm
Load 1 198 N
Load 2 238 N
Load 3 317 N
Load At Max Deflection 441 N
Material Chrome Silicon
Max Deflection 13.9 mm
Measurement Units Metric
Rate 31.7 N/mm
Rod Size 8.5 mm
SKU D-303304CS
