Century Spring

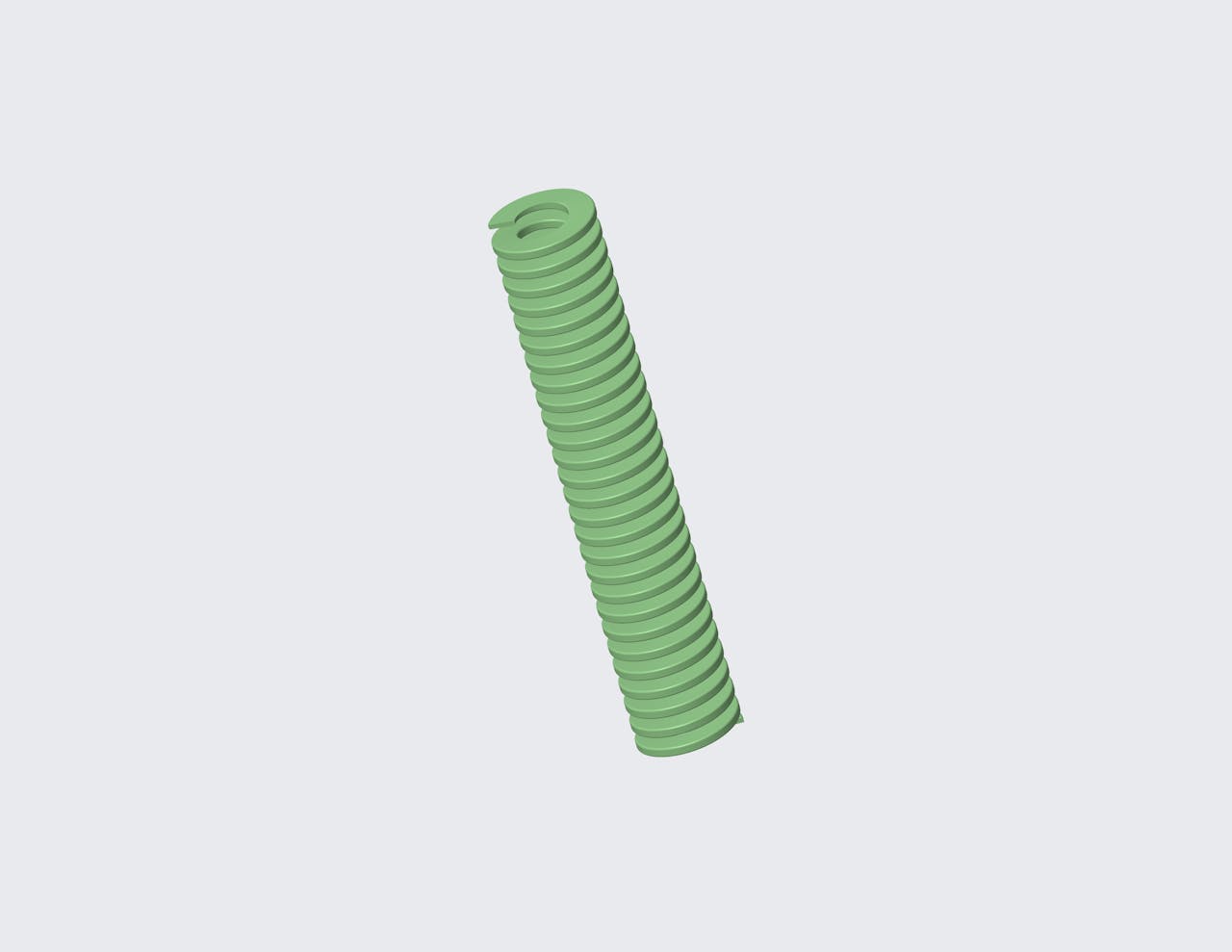

D-303110CS - 64 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 64 Millimeter long and has a 5.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.6299 in
Deflection 2 0.7559 in
Deflection 3 1.0079 in
Display Name D-303110
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 2.5197 in
Hole Size 0.3937 in
Load 1 19.1097 lbf
Load 2 22.9317 lbf
Load 3 30.3507 lbf
Load At Max Deflection 44.5144 lbf
Material Chrome Silicon
Max Deflection 1.4764 in
Measurement Units Metric
Rate 30.2684 lbs/in
Rod Size 0.1969 in
SKU D-303110CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 16 mm
Deflection 2 19.2 mm
Deflection 3 25.6 mm
Display Name D-303110
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 64 mm
Hole Size 10 mm
Load 1 85 N
Load 2 102 N
Load 3 135 N
Load At Max Deflection 198 N
Material Chrome Silicon
Max Deflection 37.5 mm
Measurement Units Metric
Rate 5.3 N/mm
Rod Size 5 mm
SKU D-303110CS
