Century Spring

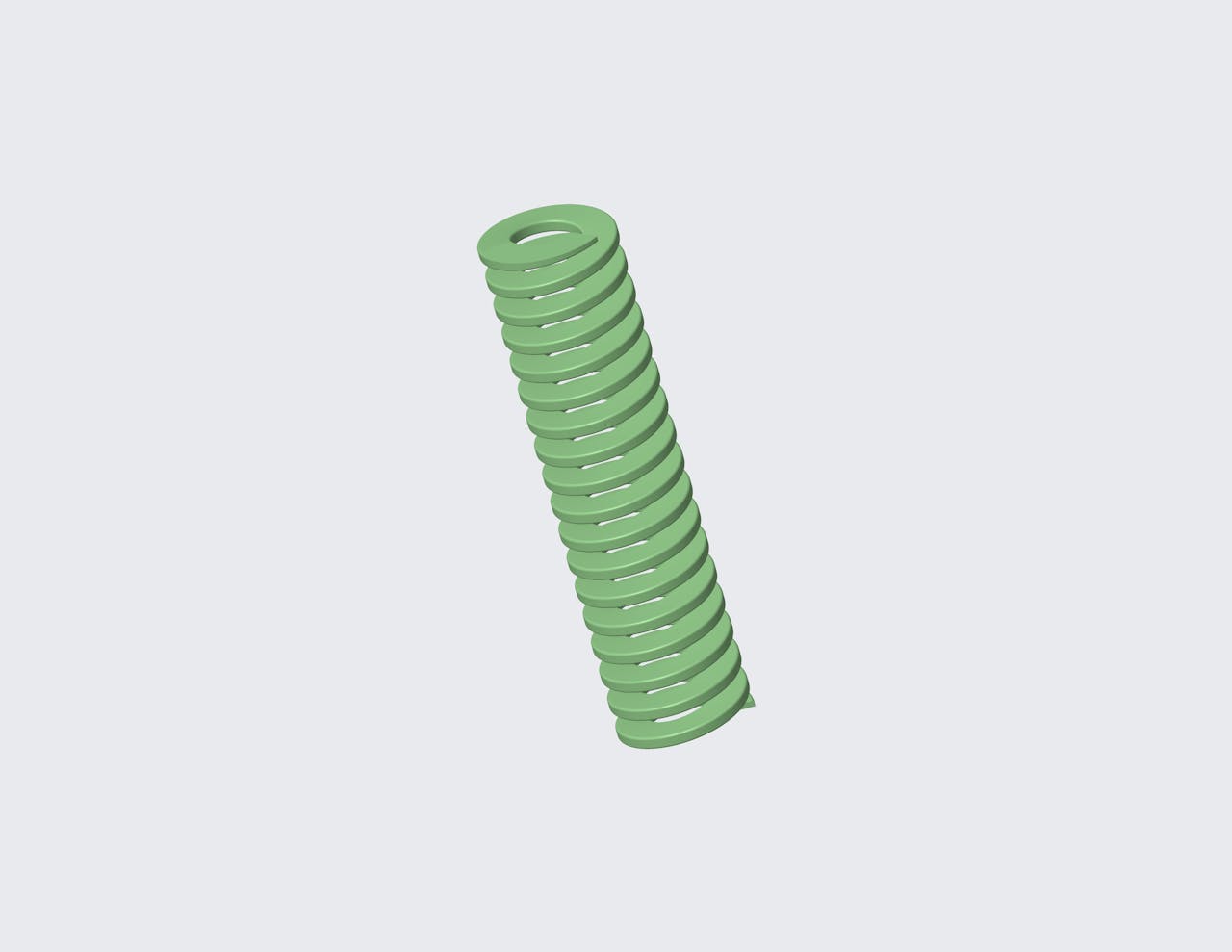

D-302732CS - 203 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 203 Millimeter long and has a 12.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.3976 in
Deflection 2 3.1969 in
Deflection 3 3.9961 in
Display Name D-302732
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 7.9921 in
Hole Size 1.5748 in
Load 1 168.3903 lbf
Load 2 224.5953 lbf
Load 3 280.5755 lbf
Load At Max Deflection 366.4568 lbf
Material Chrome Silicon
Max Deflection 5.2165 in
Measurement Units Metric
Rate 70.2456 lbs/in
Rod Size 0.7874 in
SKU D-302732CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 60.9 mm
Deflection 2 81.2 mm
Deflection 3 101.5 mm
Display Name D-302732
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 203 mm
Hole Size 40 mm
Load 1 749 N
Load 2 999 N
Load 3 1248 N
Load At Max Deflection 1630 N
Material Chrome Silicon
Max Deflection 132.5 mm
Measurement Units Metric
Rate 12.3 N/mm
Rod Size 20 mm
SKU D-302732CS
