Century Spring

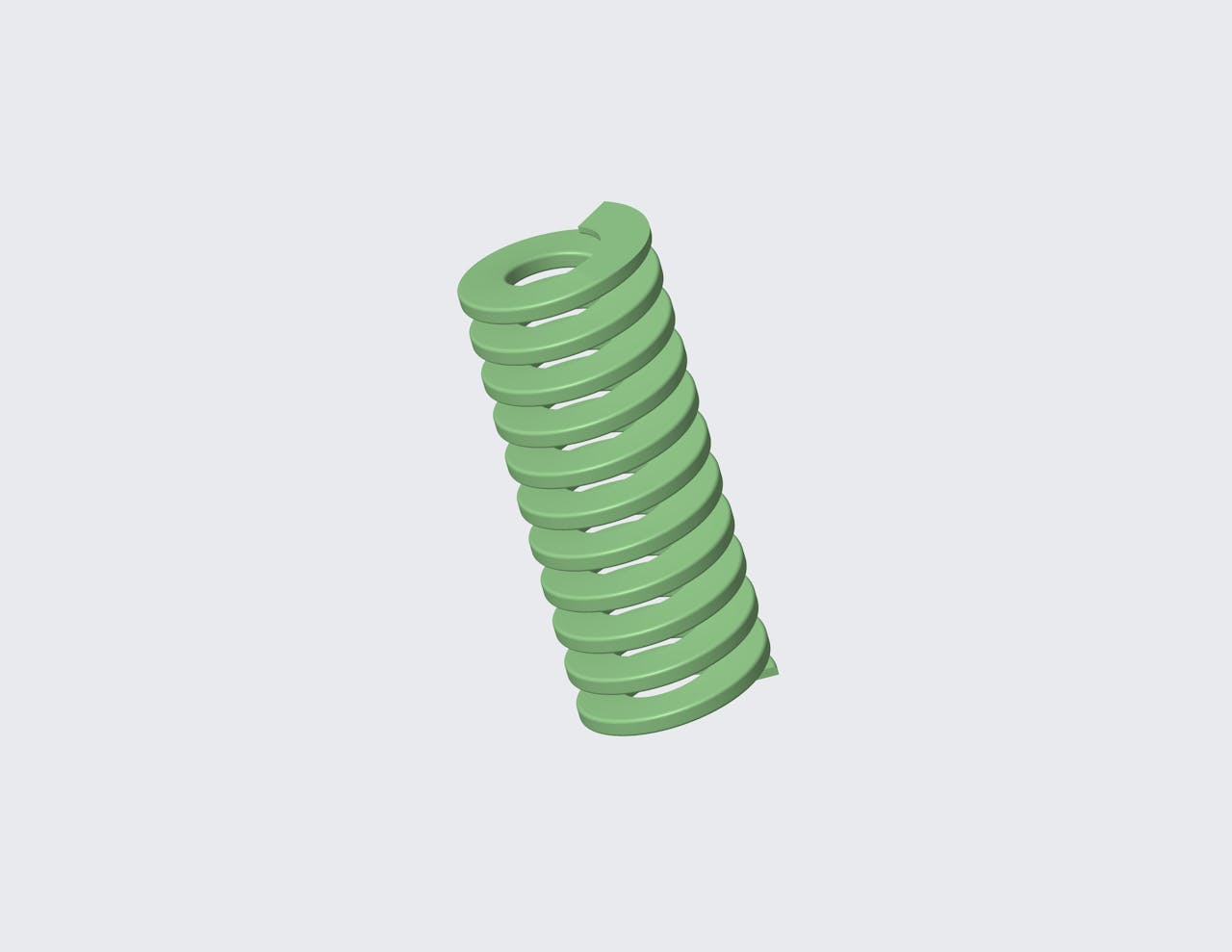

D-302720CS - 127 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 127 Millimeter long and has a 19.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.5 in
Deflection 2 2 in
Deflection 3 2.5 in
Display Name D-302720
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 5 in
Hole Size 1.5748 in
Load 1 167.9406 lbf
Load 2 223.9209 lbf
Load 3 279.9011 lbf
Load At Max Deflection 359.9371 lbf
Material Chrome Silicon
Max Deflection 3.2165 in
Measurement Units Metric
Rate 111.936 lbs/in
Rod Size 0.7874 in
SKU D-302720CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 38.1 mm
Deflection 2 50.8 mm
Deflection 3 63.5 mm
Display Name D-302720
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 127 mm
Hole Size 40 mm
Load 1 747 N
Load 2 996 N
Load 3 1245 N
Load At Max Deflection 1601 N
Material Chrome Silicon
Max Deflection 81.7 mm
Measurement Units Metric
Rate 19.6 N/mm
Rod Size 20 mm
SKU D-302720CS
