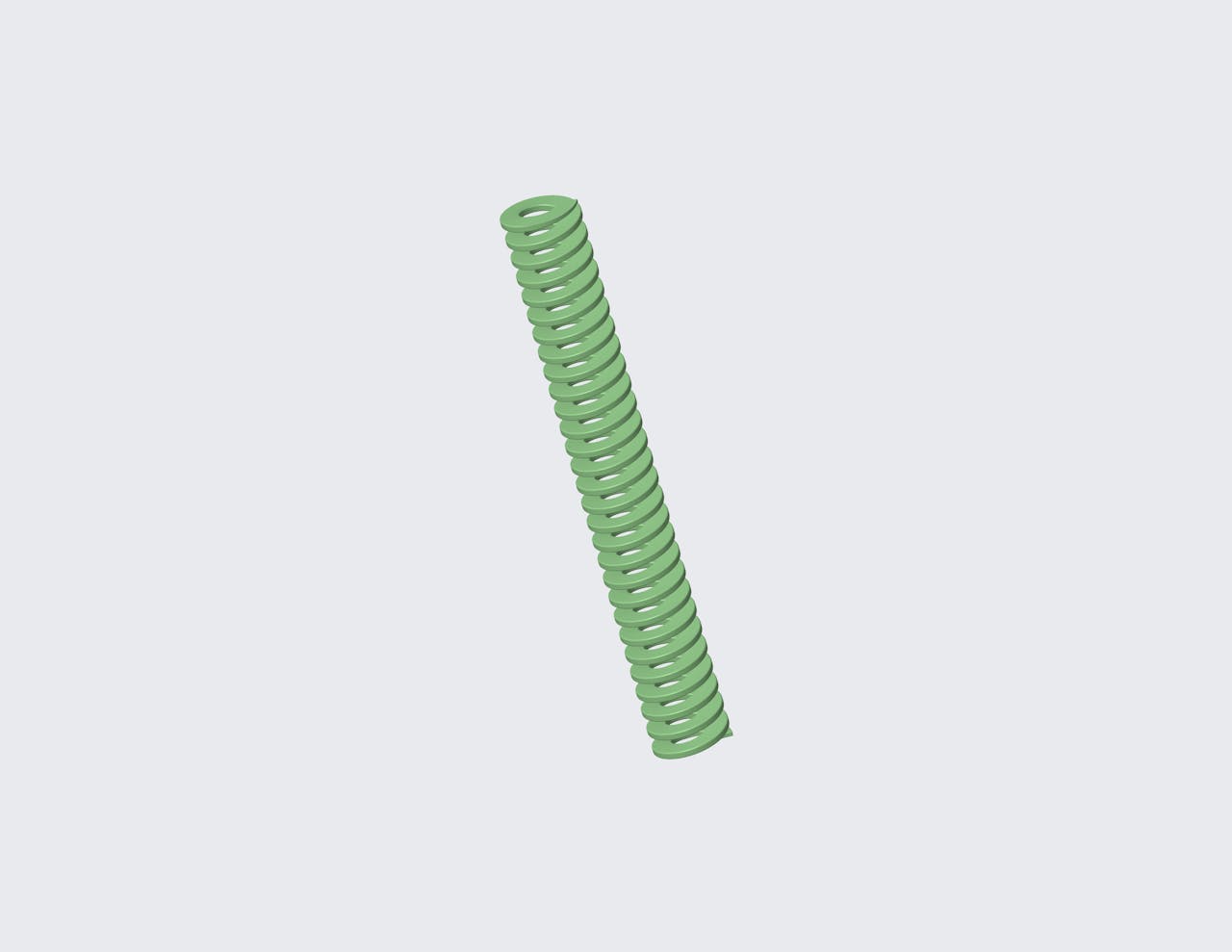

D-302648CS - 305 Millimeter Ultra Light Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 305 Millimeter long and has a 5.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 3.6024 in
Deflection 2 4.8031 in
Deflection 3 6.0079 in
Display Name D-302648
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 12.0079 in
Hole Size 1.2598 in
Load 1 109.0378 lbf
Load 2 145.4586 lbf
Load 3 181.6547 lbf
Load At Max Deflection 256.295 lbf
Material Chrome Silicon
Max Deflection 8.4646 in
Measurement Units Metric
Rate 30.2684 lbs/in
Rod Size 0.6299 in
SKU D-302648CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 91.5 mm
Deflection 2 122 mm
Deflection 3 152.6 mm
Display Name D-302648
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 305 mm
Hole Size 32 mm
Load 1 485 N
Load 2 647 N
Load 3 808 N
Load At Max Deflection 1140 N
Material Chrome Silicon
Max Deflection 215 mm
Measurement Units Metric
Rate 5.3 N/mm
Rod Size 16 mm
SKU D-302648CS
