Century Spring

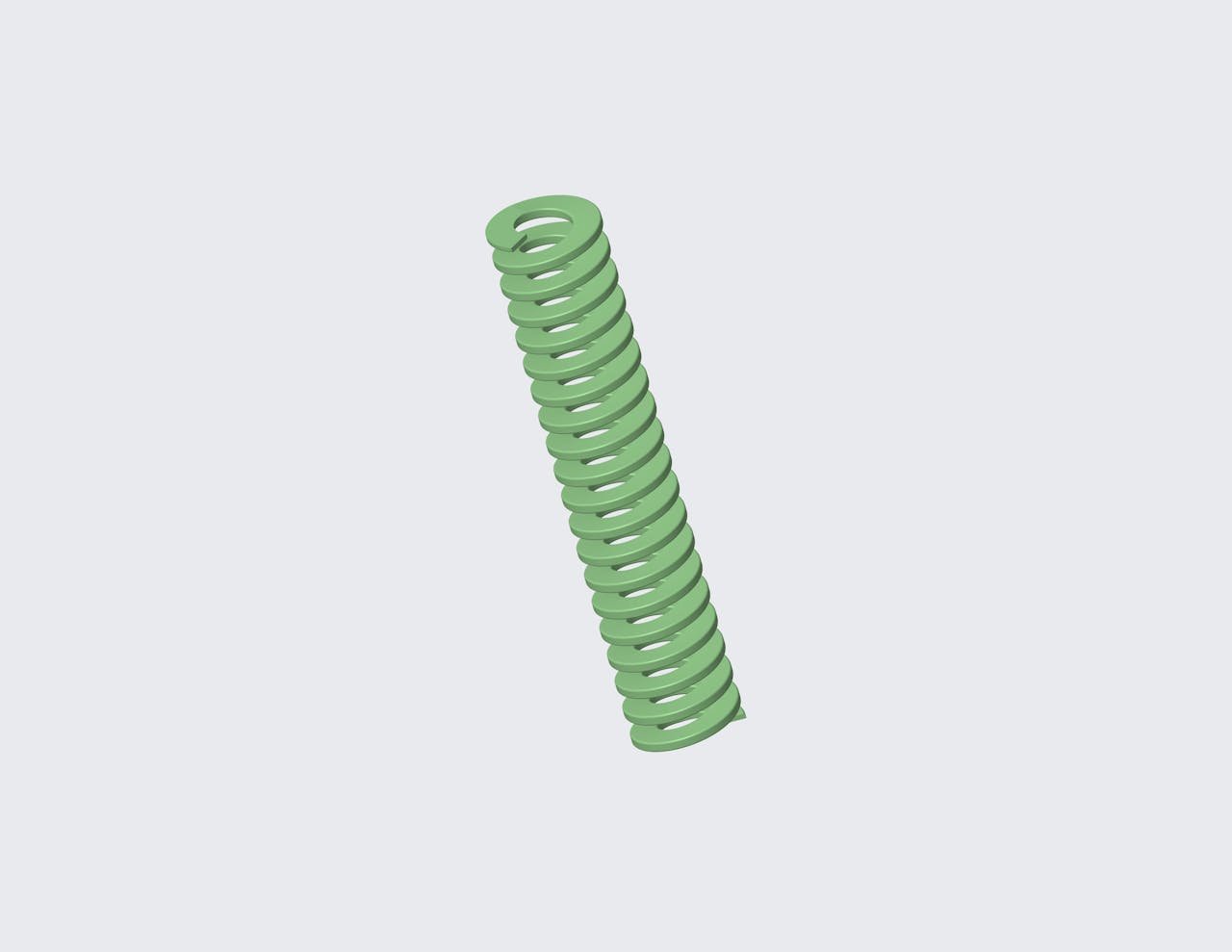

D-302632CS - 203 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 203 Millimeter long and has a 7.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.3976 in
Deflection 2 3.1969 in
Deflection 3 3.9961 in
Display Name D-302632
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 7.9921 in
Hole Size 1.2598 in
Load 1 106.7896 lbf
Load 2 142.3112 lbf
Load 3 178.0576 lbf
Load At Max Deflection 247.3022 lbf
Material Chrome Silicon
Max Deflection 5.5512 in
Measurement Units Metric
Rate 44.546 lbs/in
Rod Size 0.6299 in
SKU D-302632CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 60.9 mm
Deflection 2 81.2 mm
Deflection 3 101.5 mm
Display Name D-302632
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 203 mm
Hole Size 32 mm
Load 1 475 N
Load 2 633 N
Load 3 792 N
Load At Max Deflection 1100 N
Material Chrome Silicon
Max Deflection 141 mm
Measurement Units Metric
Rate 7.8 N/mm
Rod Size 16 mm
SKU D-302632CS
