Century Spring

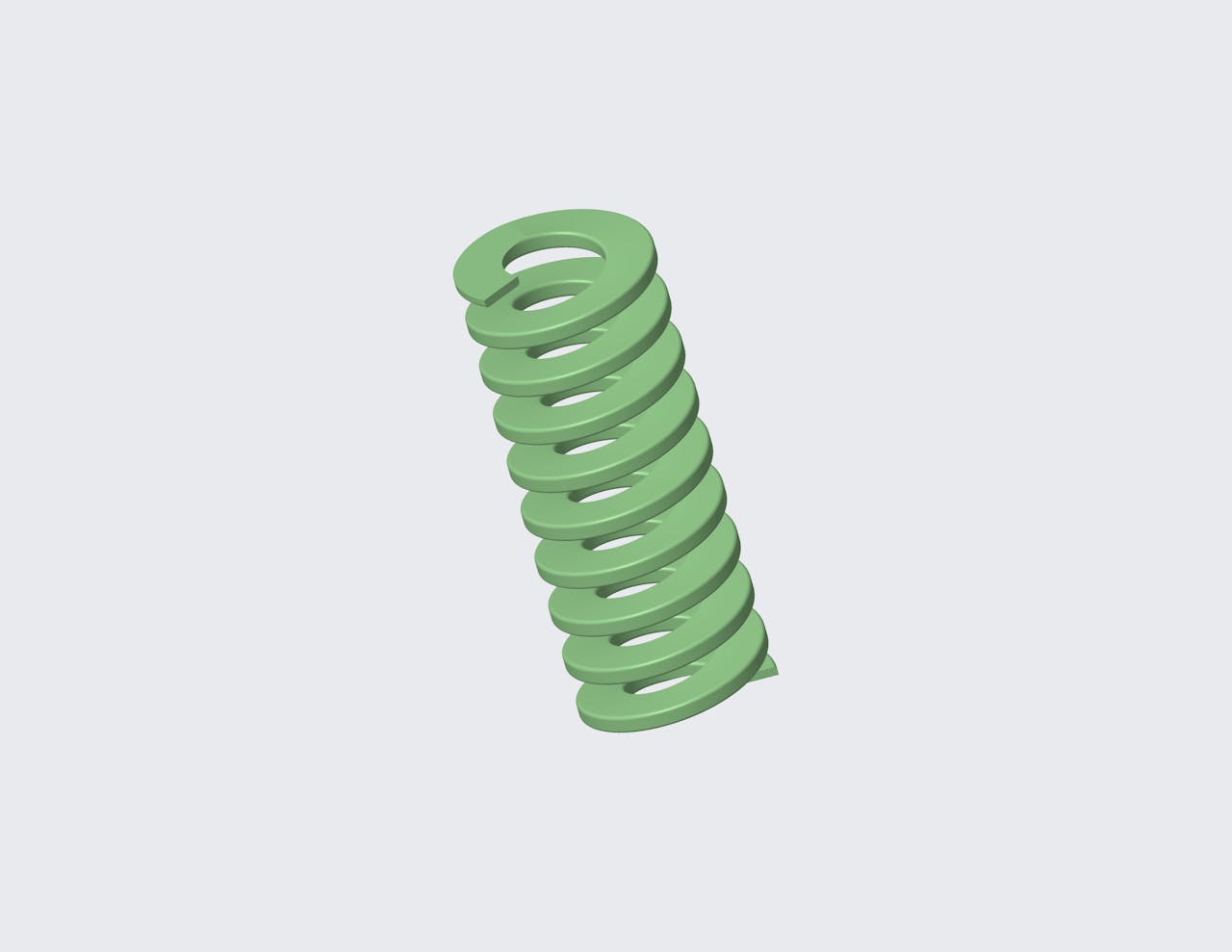

D-302616CS - 102 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 102 Millimeter long and has a 15.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.2047 in
Deflection 2 1.6063 in
Deflection 3 2.0079 in
Display Name D-302616
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 4.0157 in
Hole Size 1.2598 in
Load 1 107.9137 lbf
Load 2 144.1097 lbf
Load 3 180.0809 lbf
Load At Max Deflection 247.0773 lbf
Material Chrome Silicon
Max Deflection 2.7559 in
Measurement Units Metric
Rate 89.663 lbs/in
Rod Size 0.6299 in
SKU D-302616CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.6 mm
Deflection 2 40.8 mm
Deflection 3 51 mm
Display Name D-302616
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 102 mm
Hole Size 32 mm
Load 1 480 N
Load 2 641 N
Load 3 801 N
Load At Max Deflection 1099 N
Material Chrome Silicon
Max Deflection 70 mm
Measurement Units Metric
Rate 15.7 N/mm
Rod Size 16 mm
SKU D-302616CS
