Century Spring

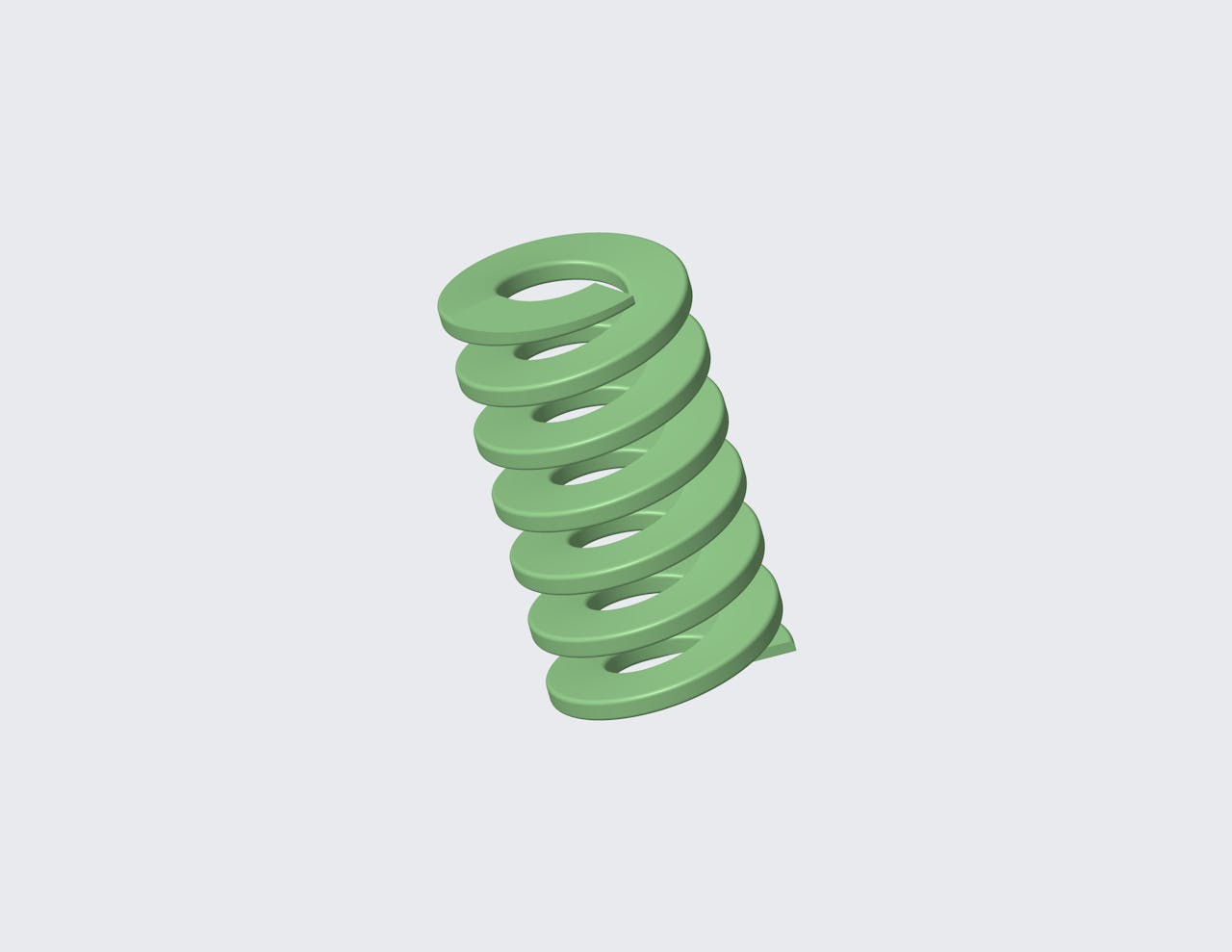

D-302612CS - 76 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 76 Millimeter long and has a 21.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.8976 in
Deflection 2 1.1969 in
Deflection 3 1.4961 in
Display Name D-302612
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 2.9921 in
Hole Size 1.2598 in
Load 1 110.6115 lbf
Load 2 147.7068 lbf
Load 3 184.5773 lbf
Load At Max Deflection 253.5971 lbf
Material Chrome Silicon
Max Deflection 2.0551 in
Measurement Units Metric
Rate 123.3581 lbs/in
Rod Size 0.6299 in
SKU D-302612CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 22.8 mm
Deflection 2 30.4 mm
Deflection 3 38 mm
Display Name D-302612
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 76 mm
Hole Size 32 mm
Load 1 492 N
Load 2 657 N
Load 3 821 N
Load At Max Deflection 1128 N
Material Chrome Silicon
Max Deflection 52.2 mm
Measurement Units Metric
Rate 21.6 N/mm
Rod Size 16 mm
SKU D-302612CS
