Century Spring

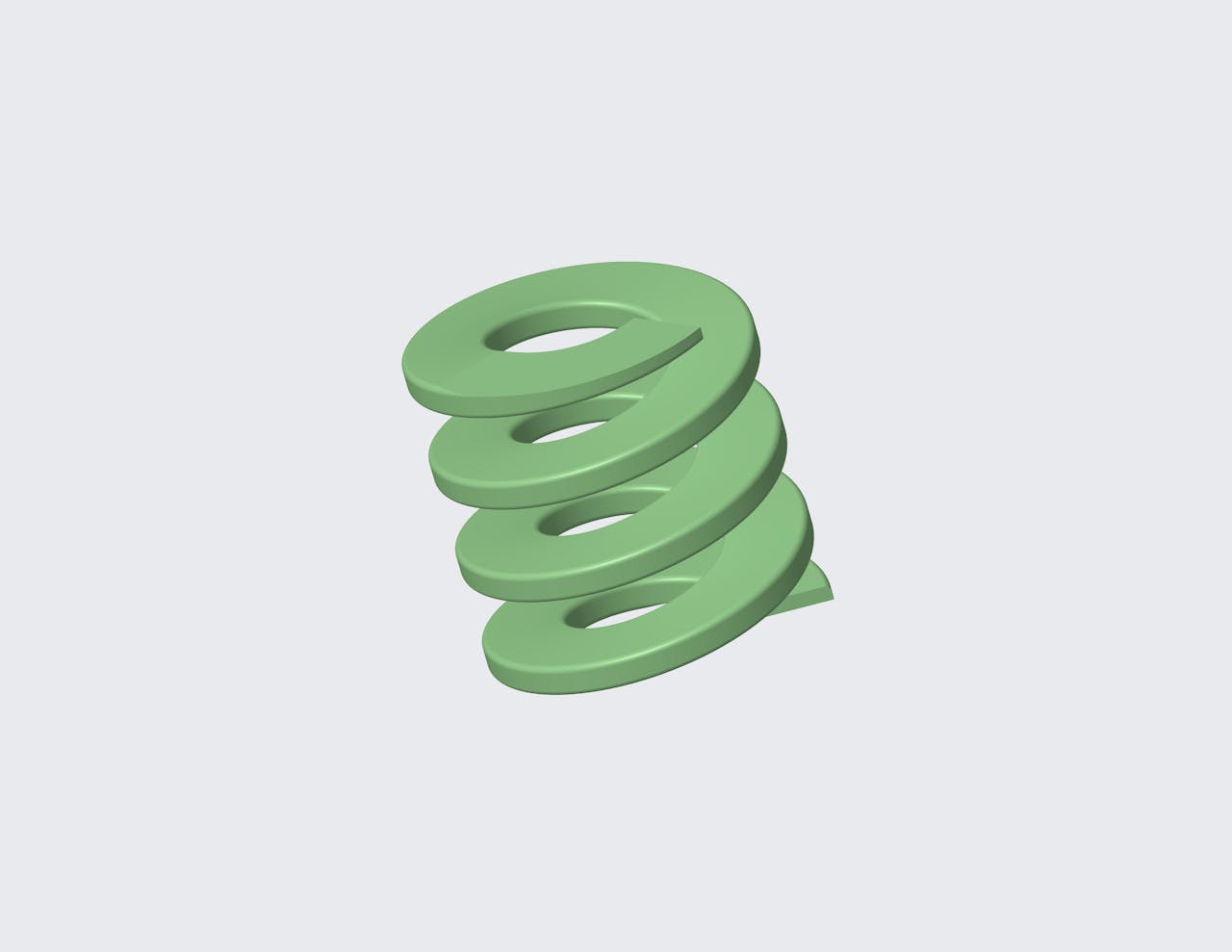

D-302607CS - 44 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 44 Millimeter long and has a 37.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5197 in
Deflection 2 0.6929 in
Deflection 3 0.8661 in
Display Name D-302607
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 1.7323 in
Hole Size 1.2598 in
Load 1 110.6115 lbf
Load 2 147.482 lbf
Load 3 184.5773 lbf
Load At Max Deflection 243.2554 lbf
Material Chrome Silicon
Max Deflection 1.1417 in
Measurement Units Metric
Rate 213.0211 lbs/in
Rod Size 0.6299 in
SKU D-302607CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 13.2 mm
Deflection 2 17.6 mm
Deflection 3 22 mm
Display Name D-302607
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 44 mm
Hole Size 32 mm
Load 1 492 N
Load 2 656 N
Load 3 821 N
Load At Max Deflection 1082 N
Material Chrome Silicon
Max Deflection 29 mm
Measurement Units Metric
Rate 37.3 N/mm
Rod Size 16 mm
SKU D-302607CS
