Century Spring

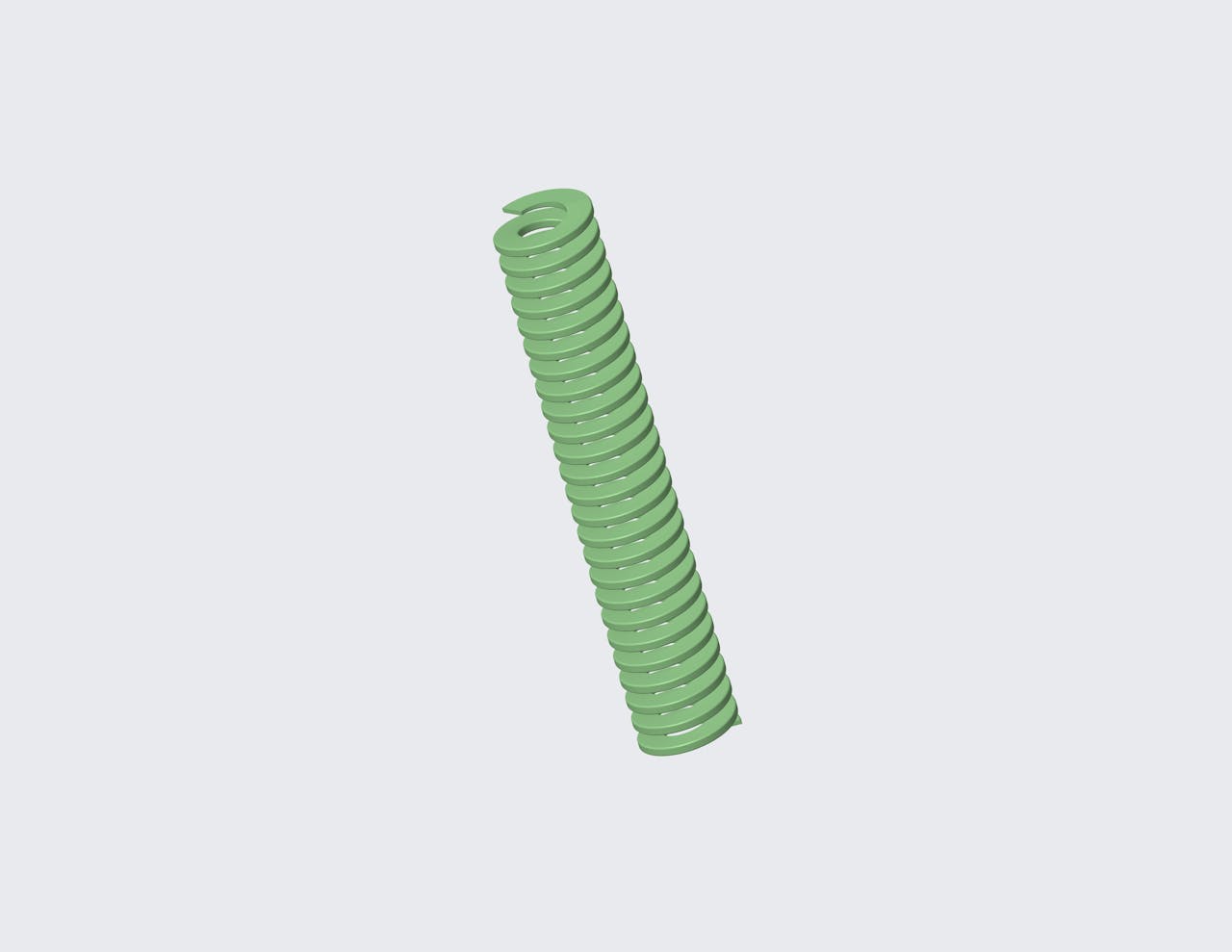

D-302528CS - 178 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 178 Millimeter long and has a 7.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.1024 in
Deflection 2 2.8031 in
Deflection 3 3.5039 in
Display Name D-302528
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 7.0079 in
Hole Size 0.9843 in
Load 1 91.277 lbf
Load 2 121.6277 lbf
Load 3 151.9784 lbf
Load At Max Deflection 198.9658 lbf
Material Chrome Silicon
Max Deflection 4.5827 in
Measurement Units Metric
Rate 43.4038 lbs/in
Rod Size 0.4921 in
SKU D-302528CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 53.4 mm
Deflection 2 71.2 mm
Deflection 3 89 mm
Display Name D-302528
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 178 mm
Hole Size 25 mm
Load 1 406 N
Load 2 541 N
Load 3 676 N
Load At Max Deflection 885 N
Material Chrome Silicon
Max Deflection 116.4 mm
Measurement Units Metric
Rate 7.6 N/mm
Rod Size 12.5 mm
SKU D-302528CS
