Century Spring

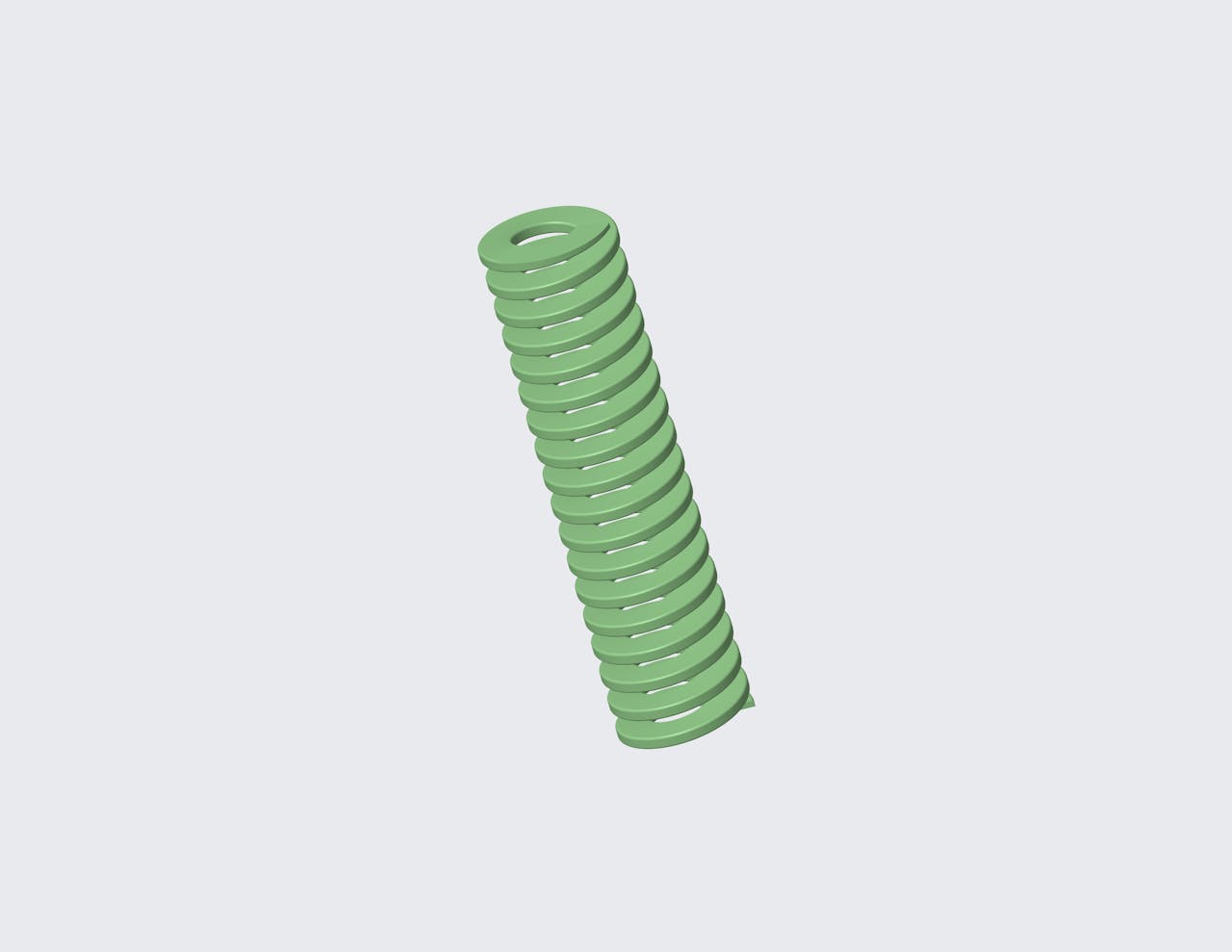

D-302520CS - 127 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 127 Millimeter long and has a 10.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.5 in
Deflection 2 2 in
Deflection 3 2.5 in
Display Name D-302520
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 5 in
Hole Size 0.9843 in
Load 1 90.8273 lbf
Load 2 120.9532 lbf
Load 3 151.304 lbf
Load At Max Deflection 197.3921 lbf
Material Chrome Silicon
Max Deflection 3.2598 in
Measurement Units Metric
Rate 60.5368 lbs/in
Rod Size 0.4921 in
SKU D-302520CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 38.1 mm
Deflection 2 50.8 mm
Deflection 3 63.5 mm
Display Name D-302520
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 127 mm
Hole Size 25 mm
Load 1 404 N
Load 2 538 N
Load 3 673 N
Load At Max Deflection 878 N
Material Chrome Silicon
Max Deflection 82.8 mm
Measurement Units Metric
Rate 10.6 N/mm
Rod Size 12.5 mm
SKU D-302520CS
