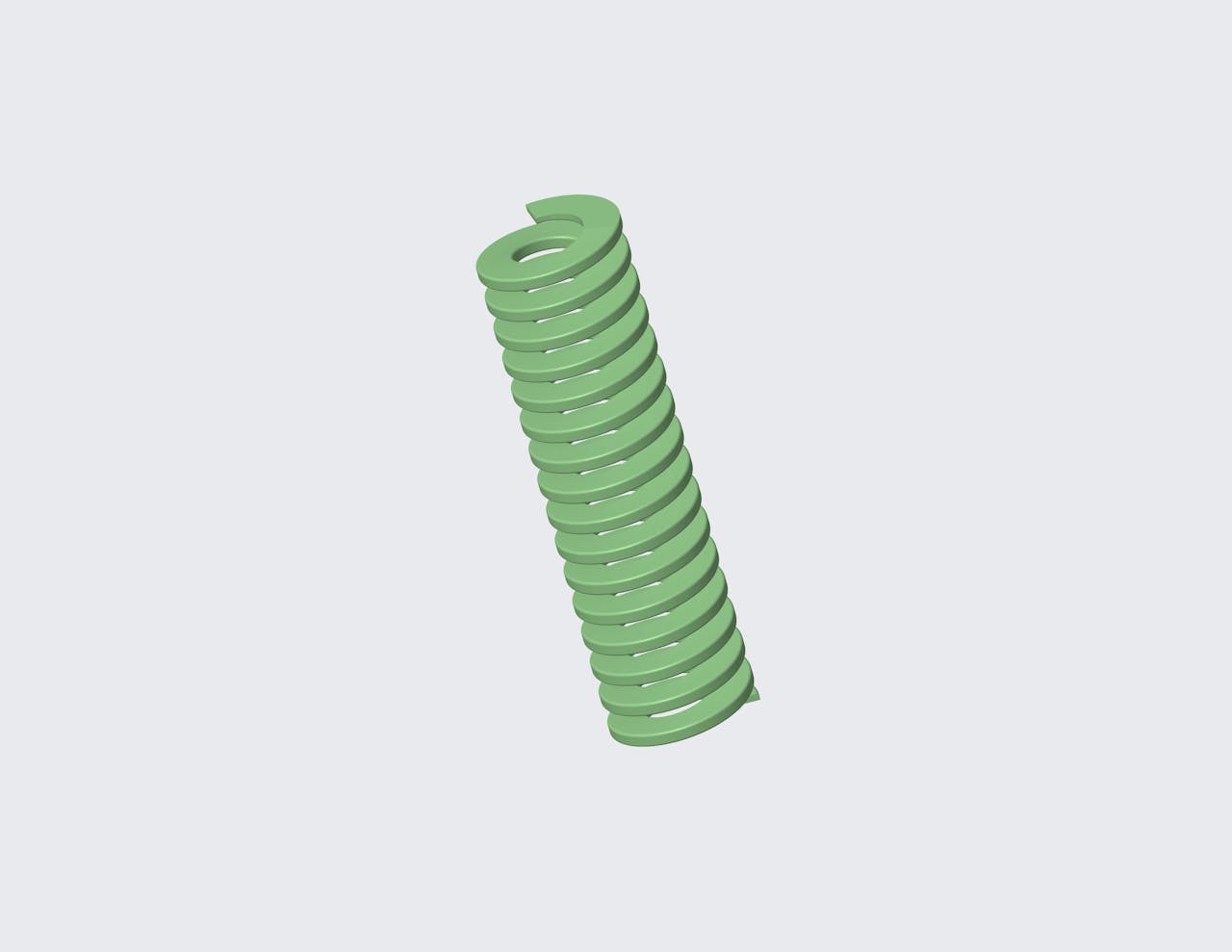

D-302518CS - 114 Millimeter Ultra Light Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 114 Millimeter long and has a 11.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.3465 in
Deflection 2 1.7953 in
Deflection 3 2.2441 in
Display Name D-302518
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 4.4882 in
Hole Size 0.9843 in
Load 1 90.8273 lbf
Load 2 120.9532 lbf
Load 3 151.304 lbf
Load At Max Deflection 195.5935 lbf
Material Chrome Silicon
Max Deflection 2.9016 in
Measurement Units Metric
Rate 67.3901 lbs/in
Rod Size 0.4921 in
SKU D-302518CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 34.2 mm
Deflection 2 45.6 mm
Deflection 3 57 mm
Display Name D-302518
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 114 mm
Hole Size 25 mm
Load 1 404 N
Load 2 538 N
Load 3 673 N
Load At Max Deflection 870 N
Material Chrome Silicon
Max Deflection 73.7 mm
Measurement Units Metric
Rate 11.8 N/mm
Rod Size 12.5 mm
SKU D-302518CS
