Century Spring

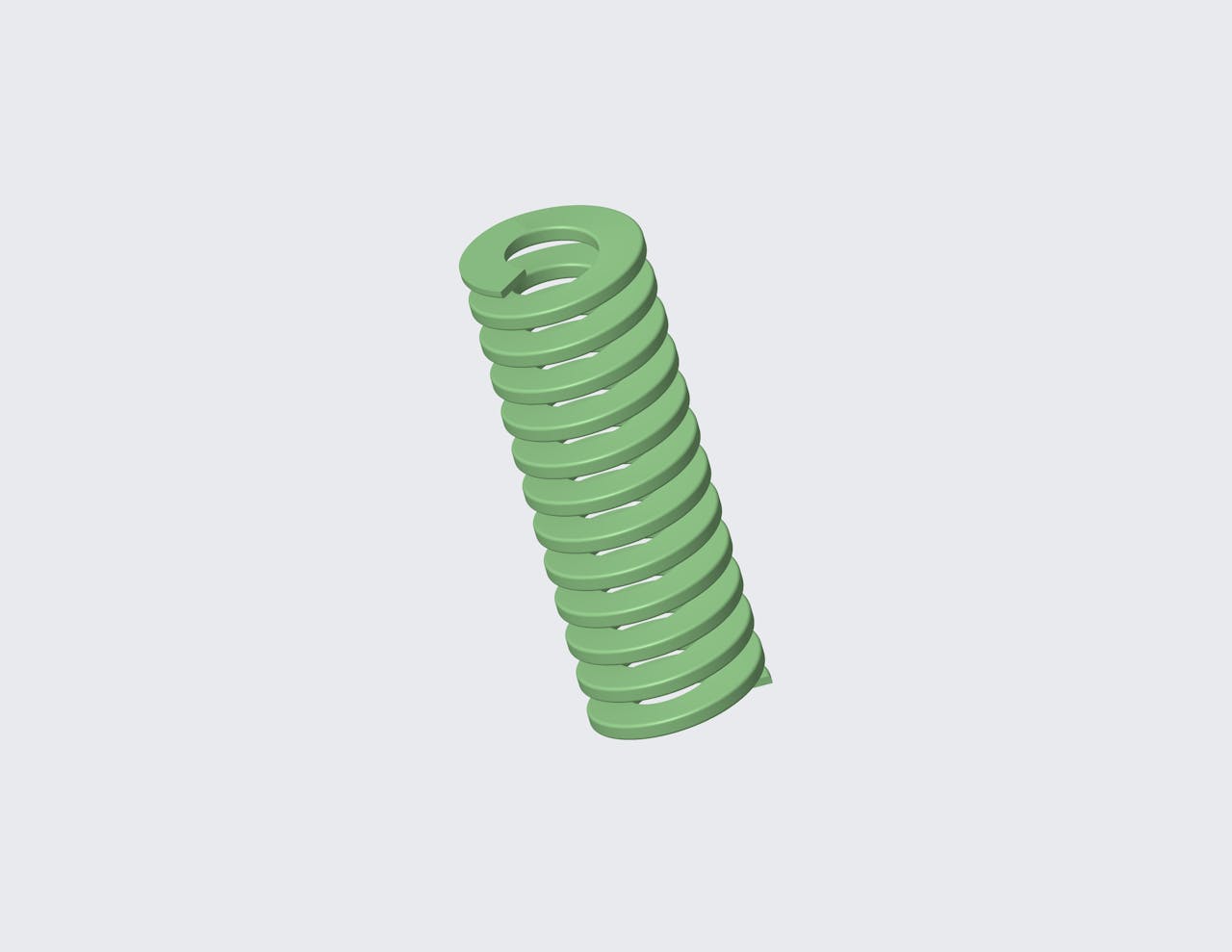

D-302514CS - 89 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 89 Millimeter long and has a 15.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0512 in
Deflection 2 1.4016 in
Deflection 3 1.752 in
Display Name D-302514
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 3.5039 in
Hole Size 0.9843 in
Load 1 91.277 lbf
Load 2 121.6277 lbf
Load 3 151.9784 lbf
Load At Max Deflection 195.3687 lbf
Material Chrome Silicon
Max Deflection 2.252 in
Measurement Units Metric
Rate 86.8075 lbs/in
Rod Size 0.4921 in
SKU D-302514CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 26.7 mm
Deflection 2 35.6 mm
Deflection 3 44.5 mm
Display Name D-302514
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 89 mm
Hole Size 25 mm
Load 1 406 N
Load 2 541 N
Load 3 676 N
Load At Max Deflection 869 N
Material Chrome Silicon
Max Deflection 57.2 mm
Measurement Units Metric
Rate 15.2 N/mm
Rod Size 12.5 mm
SKU D-302514CS
